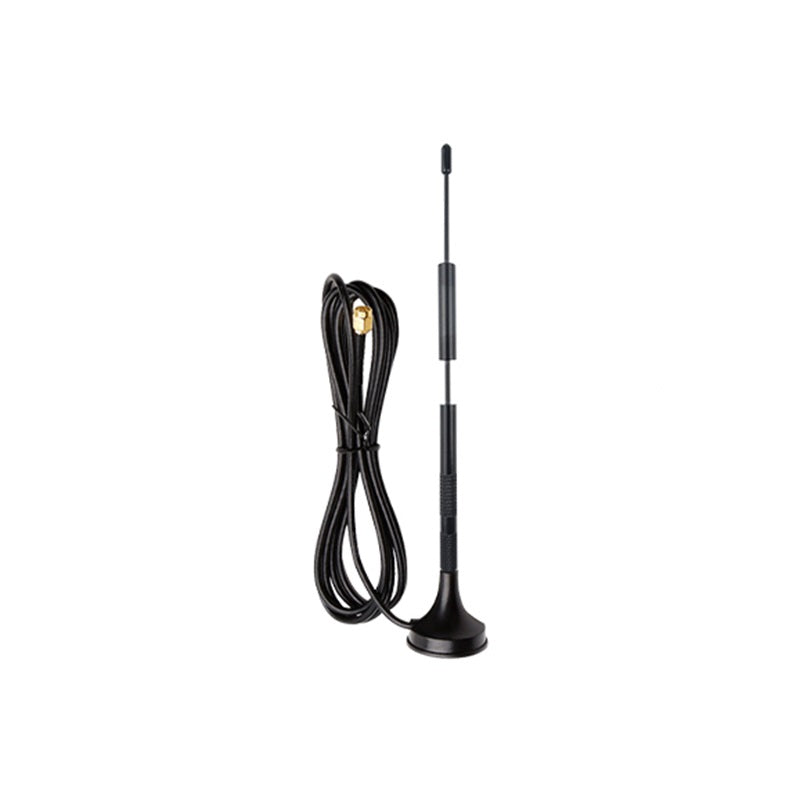

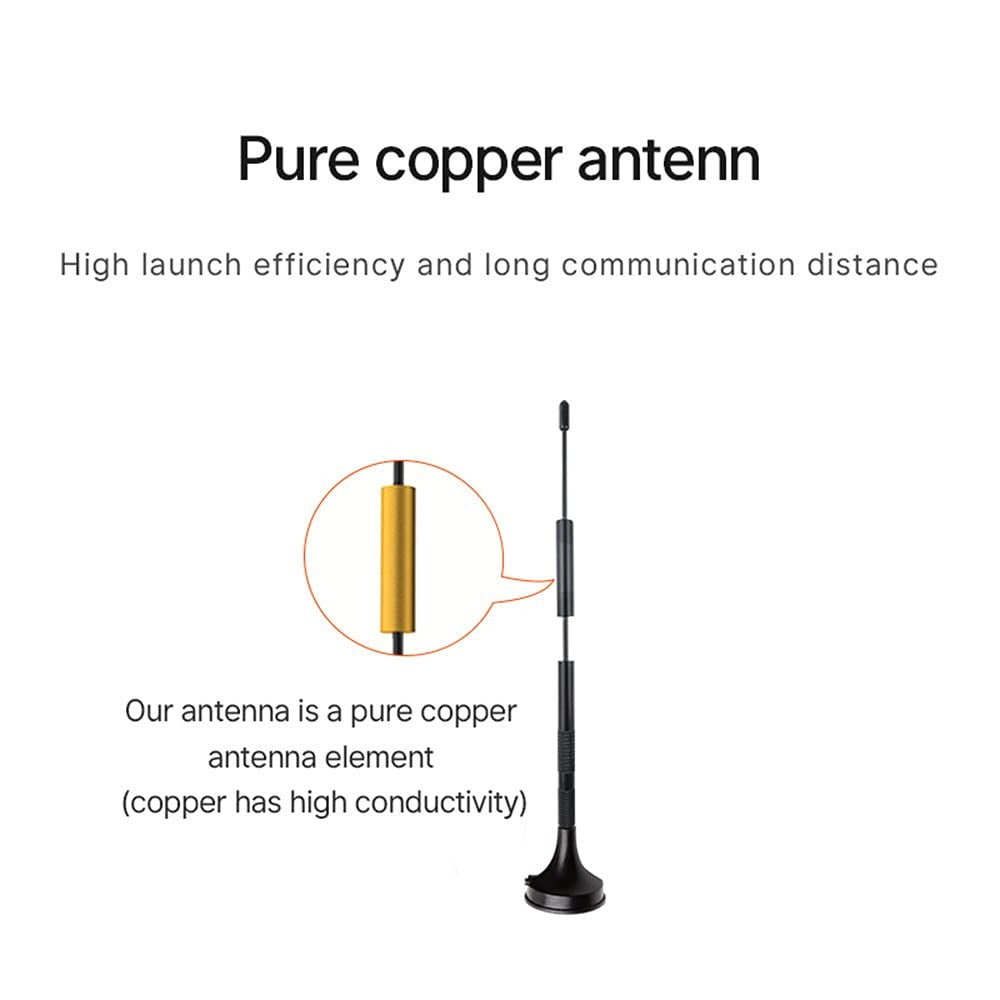

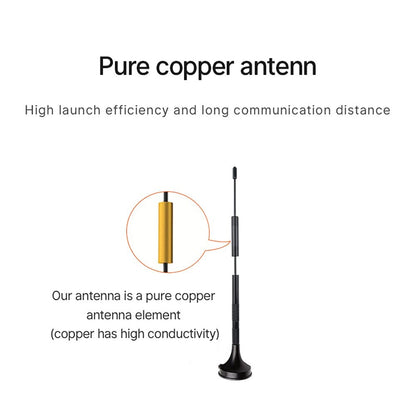

Cdsenet TXWF-XPL-150 Dual-Band 2.4/5.8GHz Magnetic Suction Cup Antenna - 4/6dBi Omnidirectional WiFi Antenna with SMA Connector

Dual-Band High-Efficiency Performance

Engineered for simultaneous 2.4GHz and 5.8GHz operation, this antenna supports WiFi 802.11b/g/n/ac/ax, Bluetooth 5.0/5.1, and high-speed video transmission systems. The dual-band design eliminates the need for separate antennas, reducing system complexity and installation costs. Measured gain of 4.0 dBi at 2.4GHz provides extended coverage for IoT sensors and smart home devices, while 6.0 dBi at 5.8GHz ensures high-throughput data links for industrial automation and wireless backhaul applications.

Industrial-Grade Magnetic Mounting System

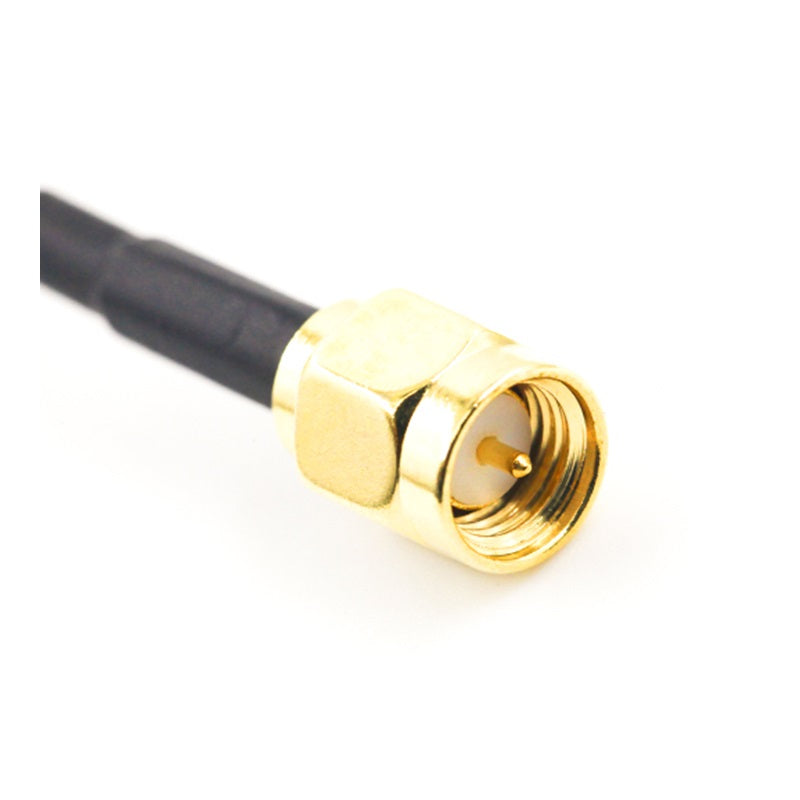

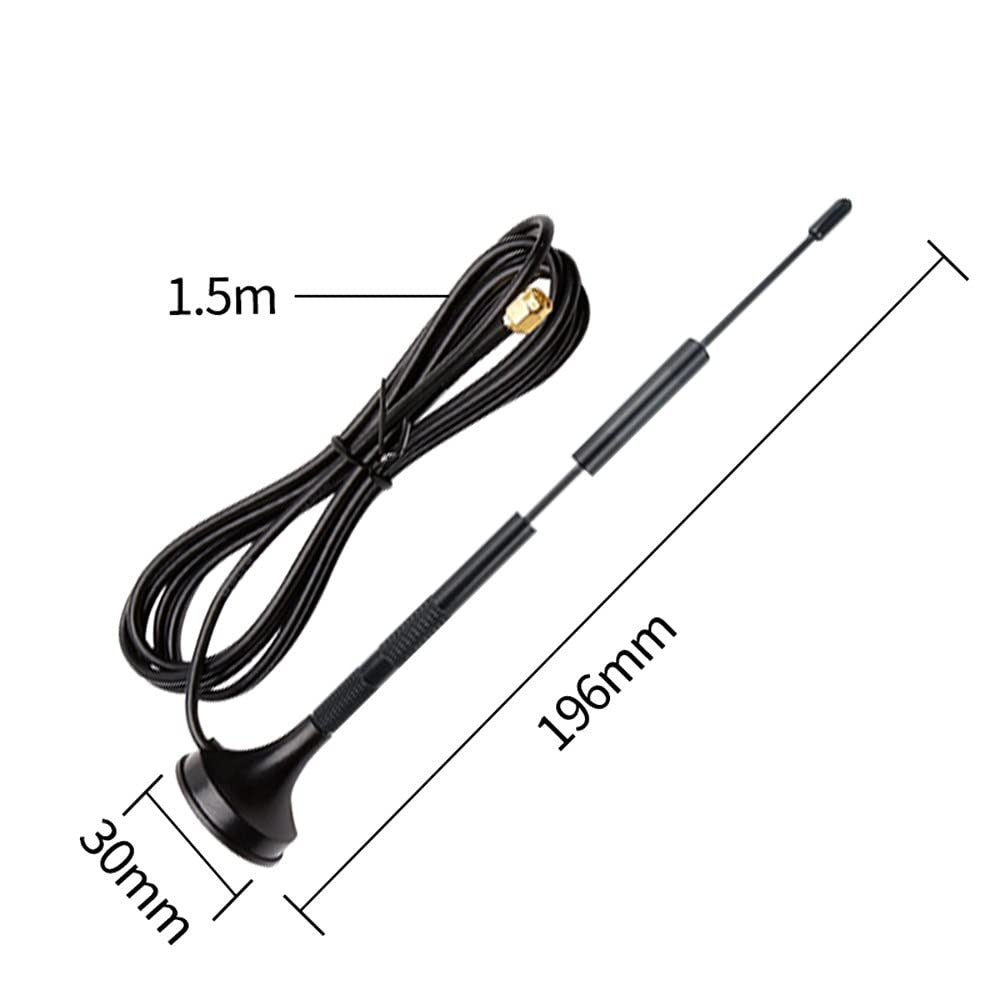

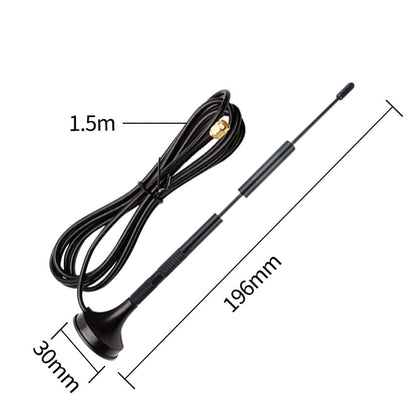

The 30mm diameter magnetic base delivers secure attachment to ferrous metal surfaces including vehicle roofs, equipment enclosures, and mounting brackets. The 1.5m RG174 low-loss coaxial cable (50¦¸ impedance) provides flexible installation options while maintaining signal integrity. This design enables optimal antenna placement away from RF-blocking obstacles, improving link budget by 3-6 dB compared to internal antennas. Ideal for temporary deployments, field testing, and applications requiring frequent repositioning.

Verified Performance Data: VSWR measurements conducted using Agilent E5071C network analyzer demonstrate excellent impedance matching across both frequency bands. Measured VSWR values of 1.37 @ 2.45GHz and 1.45 @ 5.85GHz confirm minimal reflected power and maximum radiated efficiency. Return loss exceeds 14 dB across the entire operating bandwidth, ensuring compatibility with sensitive RF transceivers and compliance with IEEE 802.11 standards.

Q: Is this antenna compatible with my WiFi router or IoT device?

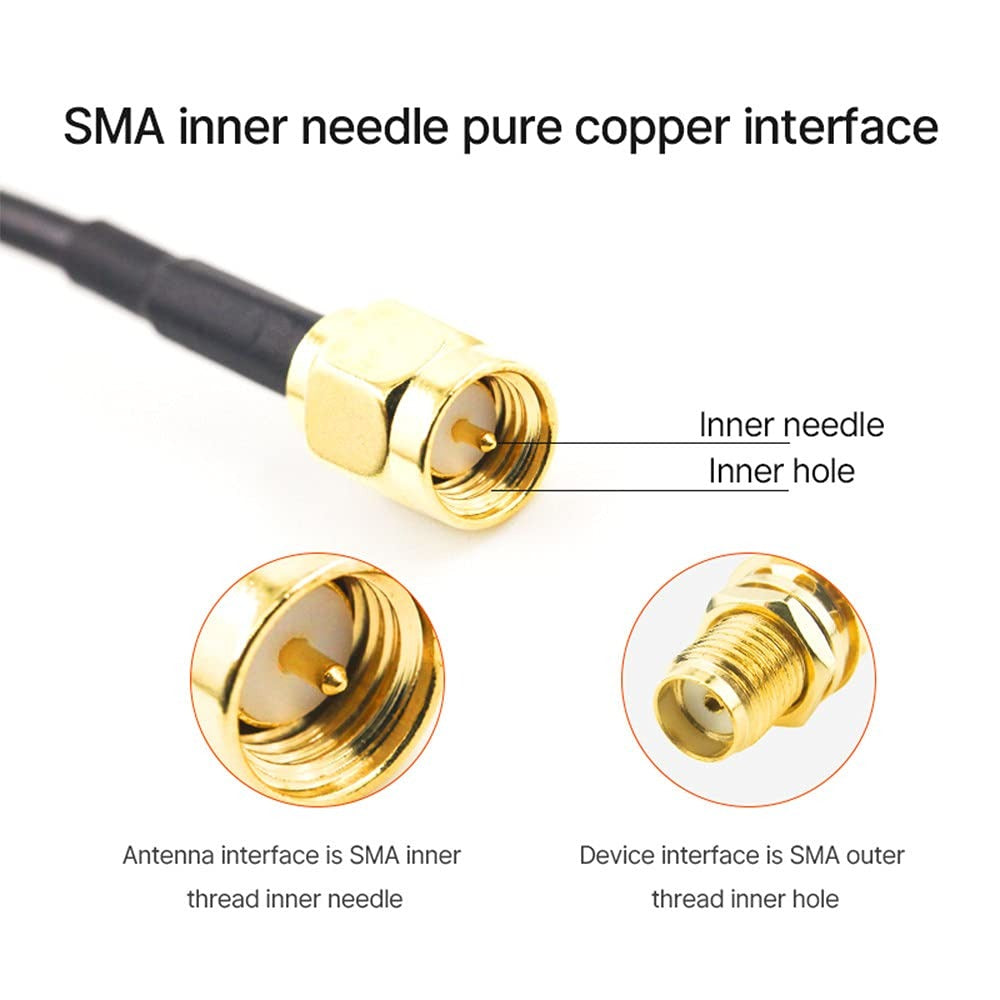

A: The TXWF-XPL-150 is compatible with any device operating in the 2.4-2.5 GHz or 5.15-5.85 GHz frequency bands with an SMA-J (male SMA) connector. This includes WiFi routers (802.11b/g/n/ac/ax), Bluetooth modules, ZigBee gateways, and most IoT wireless modules. Verify your device's frequency band and connector type before ordering. The 50¦¸ impedance matches standard RF systems. For devices with different connectors (RP-SMA, N-type, IPEX), adapter cables are available separately.

Q: How do I install this magnetic antenna for optimal performance?

A: For best results, mount the antenna on a flat metal surface (vehicle roof, equipment cabinet, or mounting plate) with the magnetic base fully contacting the surface. Position the antenna vertically and away from obstructions. Avoid placing inside metal enclosures, as this causes 15-30 dB signal attenuation. The 1.5m cable allows flexible positioning¡ªplace the antenna at the highest practical point with clear line-of-sight to communicating devices. For permanent installations, consider adding a ground plane (minimum 10cm diameter metal plate) if mounting on non-metallic surfaces.

Q: What is the operating temperature range and environmental durability?

A: The TXWF-XPL-150 operates reliably in temperatures from -40¡ãC to +85¡ãC (-40¡ãF to +185¡ãF), suitable for industrial and automotive environments. The ABS radome provides UV resistance and weather protection for outdoor installations. While not IP-rated for submersion, the antenna withstands rain, snow, and humidity. The carbon steel magnetic base resists corrosion in normal conditions. For marine or highly corrosive environments, apply protective coating to the base. Maximum input power: 10W. Avoid exposure to direct lightning strikes¡ªuse appropriate surge protection for outdoor installations.

Q: Can I use this antenna for both 2.4GHz and 5.8GHz simultaneously?

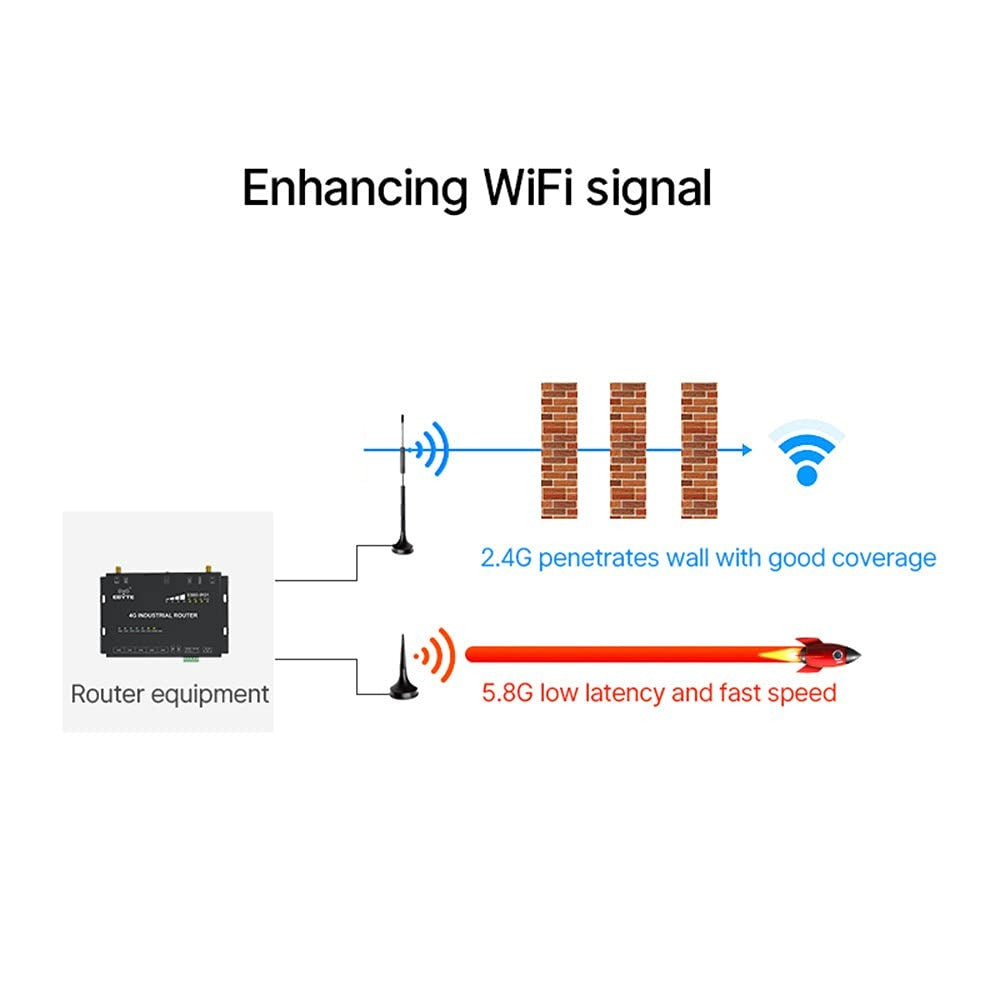

A: Yes, the TXWF-XPL-150 is a true dual-band antenna that supports concurrent operation on both 2.4GHz and 5.8GHz frequencies. This makes it ideal for dual-band WiFi routers, mesh systems, and devices that use both bands simultaneously (e.g., 2.4GHz for IoT sensors + 5.8GHz for video backhaul). The antenna's internal matching network ensures optimal performance across both bands without requiring external diplexers or switches. Measured VSWR remains below 1.5 across the entire 2.4-2.5 GHz and 5.15-5.85 GHz spectrum.

Q: What is the expected range improvement compared to built-in antennas?

A: Range improvement depends on the baseline antenna and environment. Compared to typical 2 dBi internal antennas, the TXWF-XPL-150's 4-6 dBi gain provides approximately 25-40% range extension in open areas. In real-world conditions with obstacles, expect 15-30% improvement. The magnetic mounting capability allows optimal placement (elevated, away from metal enclosures), which often contributes more to performance than gain alone. For example, moving an antenna from inside a metal cabinet to an external magnetic mount can improve signal strength by 10-20 dB, effectively doubling or tripling usable range. Actual results vary based on transmit power, receiver sensitivity, and environmental factors.
