Cdsenet TXWF-PCB-3214 Dual-Band 2.4/5.8GHz PCB WiFi Antenna 2.0 dBi
Cdsenet TXWF-PCB-3214 Dual-Band 2.4/5.8GHz PCB WiFi Antenna 2.0 dBi
10000 in stock
Couldn't load pickup availability
SKU:txwf-pcb-3214
Product Overview

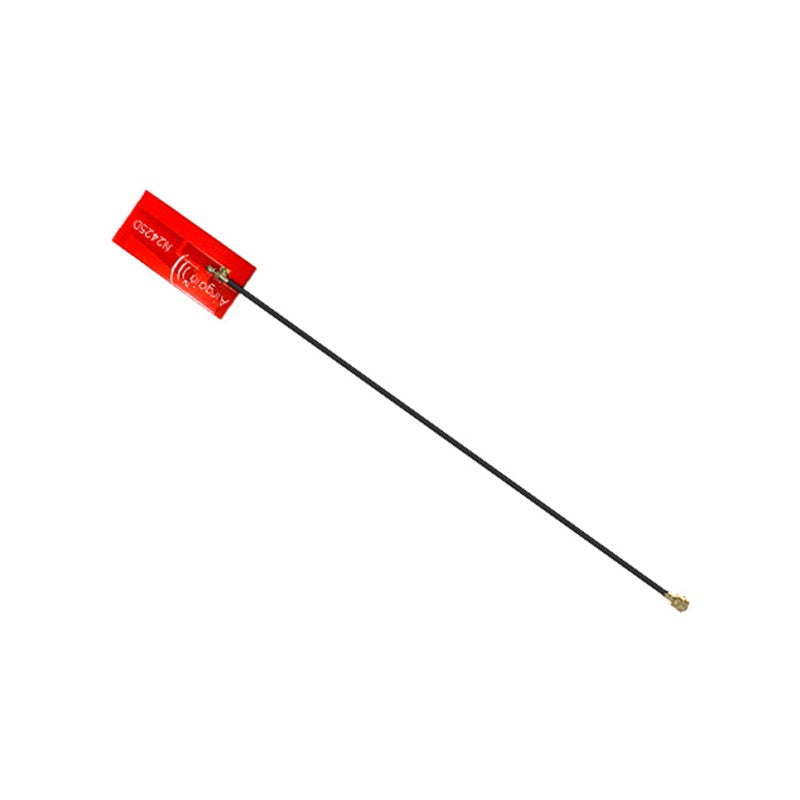

The TXWF-PCB-3214 is a professional-grade 2.4/5.8GHz dual-band built-in PCB antenna, designed for versatile wireless connectivity. Featuring a 2.0 dBi gain and a compact $32 \times 14 \text{mm}$ form factor, it offers stable performance across both common WiFi bands. With its integrated IPEX (U.FL) interface and flexible 120mm feeder, it is an ideal choice for internal integration in IoT devices and networking hardware.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 2.4GHz / 5.8GHz (Dual-band) |
| Peak Gain | 2.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | IPEX 1st Generation (IPX) |
| Antenna Material | PCB (Rigid Board) |
Product Details
Compact Dual-Band Coverage
By supporting both 2.4GHz and 5.8GHz frequencies, the TXWF-PCB-3214 ensures high-speed data transmission and reduced interference, making it perfect for modern WiFi 5/6 applications.

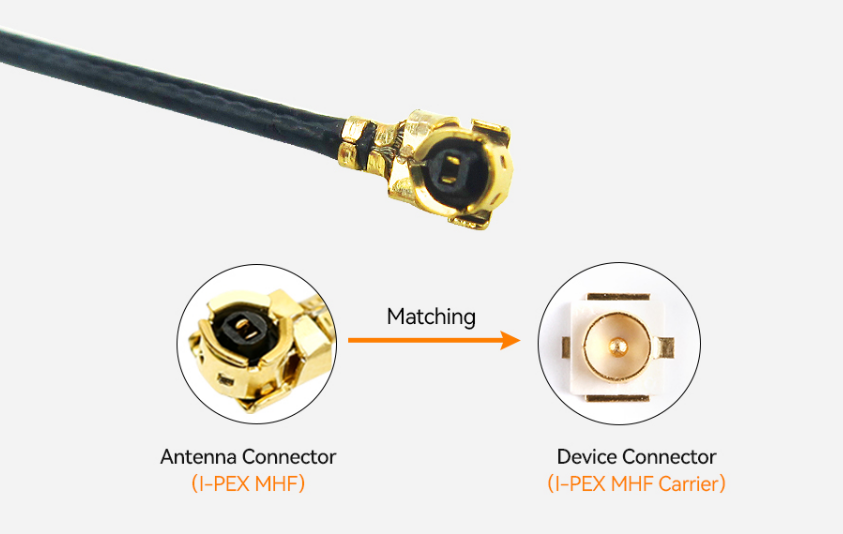

Integrated IPEX Interface
Equipped with a standard IPEX connector and a 120mm low-loss RF feeder, allowing for easy plug-and-play installation inside plastic or composite device enclosures.
Professional Test Report
Factory Verified Performance: Typical VSWR measured at ≤ 1.5 across operating bands for optimal efficiency.
Ideal Applications
Smart Networking
Wireless routers, network bridges, and dual-band WiFi modules.
Industrial IoT
Embedded wireless terminals and high-speed data telemetry systems.
Resources
?? View Online DatasheetFAQ
Q: Can this antenna be used for both 2.4G and 5.8G simultaneously?
A: Yes, it is a dual-band antenna designed to cover both frequency ranges effectively.
Q: What is the connector type?
A: It uses a standard IPEX 1st generation interface (also known as U.FL).
