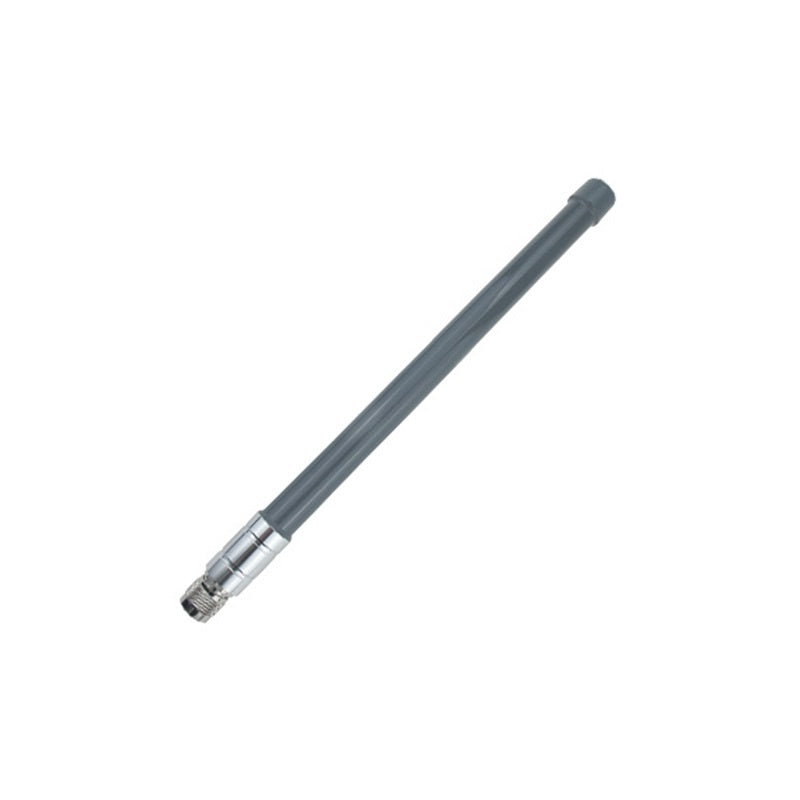

TXWF-BLG-40 High-Gain 6dBi 2.4/5.8GHz Fiberglass Antenna N-J Interface Waterproof Sunproof Windproof Strong Sealing for Outdoor Harsh Environment
TXWF-BLG-40 High-Gain 6dBi 2.4/5.8GHz Fiberglass Antenna N-J Interface Waterproof Sunproof Windproof Strong Sealing for Outdoor Harsh Environment
50 in stock
Couldn't load pickup availability
SKU:TXWF-BLG-40
Product Overview
The TXWF-BLG-40 is a high-performance, dual-band omnidirectional fiberglass antenna, precision-engineered for both 2.4GHz and 5.8GHz wireless applications. It features a robust 6.0 dBi peak gain, significantly extending signal range and stability. Encased in a durable, weather-resistant Fiberglass (Glass Steel) radome with a standard N-Male connector, it is an ideal choice for outdoor industrial IoT, WiFi hotspots, and base station deployments.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 2.4GHz / 5.8GHz Dual-Band |
| Peak Gain | 6.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | N-J (N-Male) |
| Radome Material | Fiberglass (Glass Steel) |
| Overall Height | 400 mm |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Operating Temp | -40°C to +85°C |
Product Details

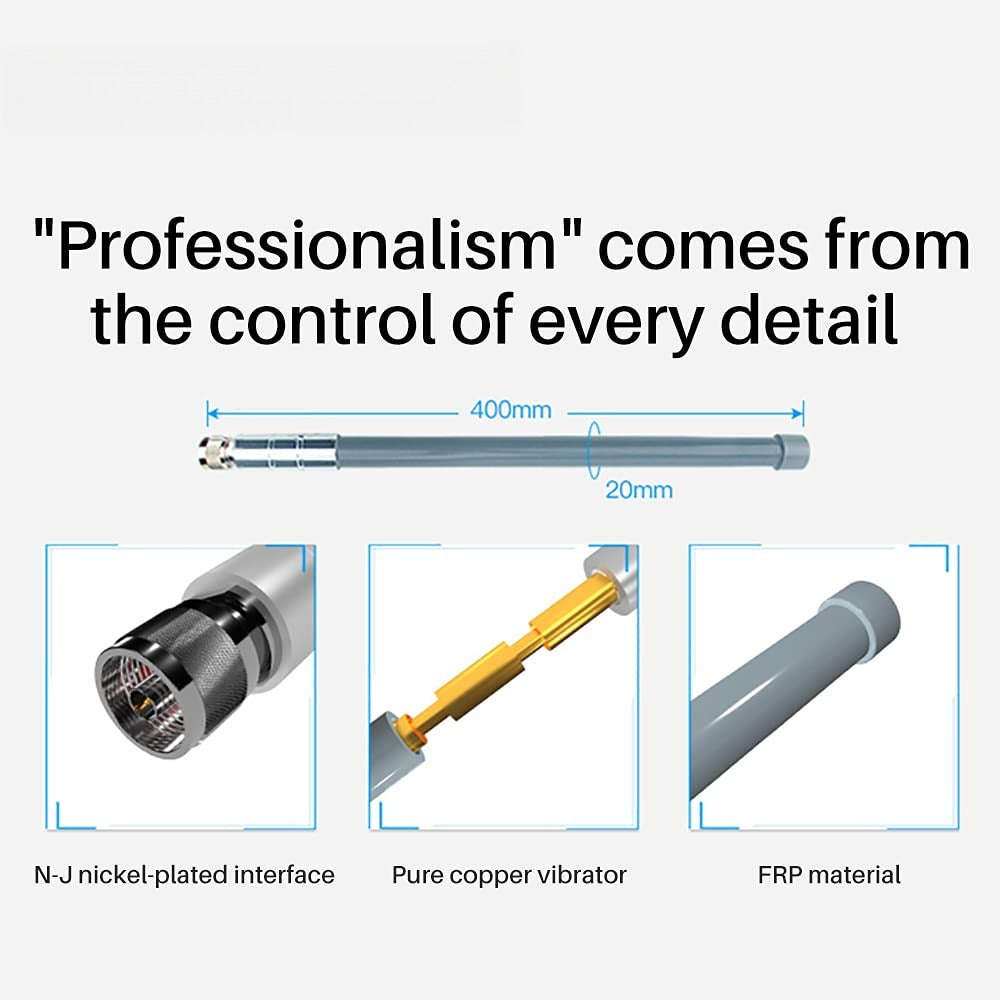

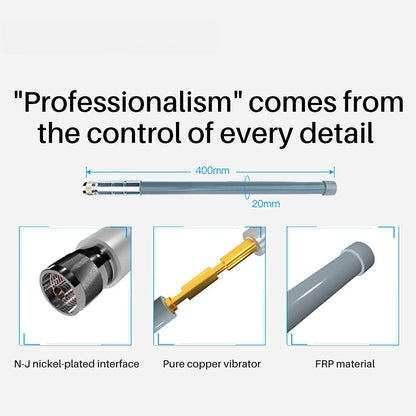

Premium Fiberglass Radome
Built with a high-strength, UV-resistant fiberglass shell, this antenna is designed to withstand extreme temperatures, moisture, and corrosion for permanent outdoor mounting.
Robust N-Male (N-J) Interface
The standard N-Male connector ensures a low-loss, high-strength connection to industrial gateways, base stations, and outdoor wireless routers.
Professional Test Report
Verified with Agilent E5071C: Measured VSWR is ≤ 1.5 across all operational frequency bands.
Ideal Applications
Industrial IoT Base Stations
Reliable dual-band communication for smart agriculture, factories, and remote sensors.
Municipal WiFi Hotspots
Providing long-range WiFi coverage for public parks, campuses, and city infrastructure.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this antenna waterproof?
A: Yes, the fiberglass construction and sealed interface provide excellent waterproof and weather-resistant properties for outdoor use.
Q: Does it support both 2.4GHz and 5.8GHz simultaneously?
A: Yes, it is a dual-band antenna specifically designed to work across both frequency ranges with high efficiency.
