TXWF-BLG-26: Dual-Band 2.4/5.8GHz 6dBi Fiberglass Antenna
TXWF-BLG-26: Dual-Band 2.4/5.8GHz 6dBi Fiberglass Antenna
10000 in stock
Couldn't load pickup availability
SKU:TXWF-BLG-26
Product Overview

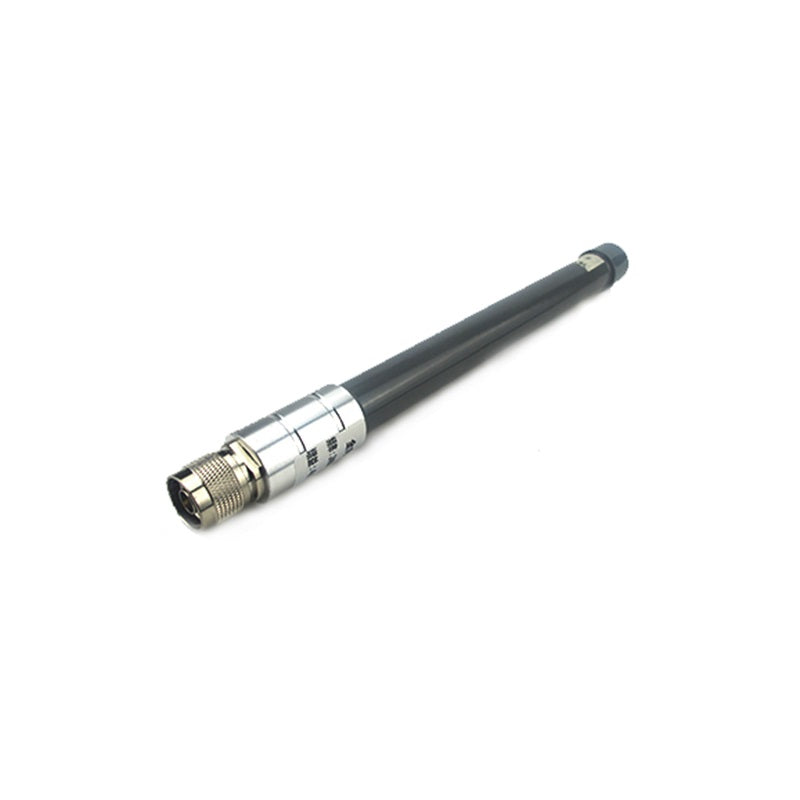

The TXWF-BLG-26 is a high-performance dual-band omnidirectional fiberglass antenna, precision-engineered for both 2.4GHz and 5.8GHz wireless communication. It delivers a robust 6.0 dBi peak gain, significantly extending coverage and signal penetration. Encased in a rugged, weather-resistant Fiberglass (Glass Steel) radome with an N-Male connector, it is built to withstand harsh outdoor industrial IoT and high-density WiFi environments.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 2.4GHz / 5.8GHz Dual-Band |
| Peak Gain | 6.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | N-J (N-Male) |
| Radome Material | Fiberglass (Glass Steel) |
| Overall Height | 260 mm |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Operating Temperature | -40°C to +85°C |
Product Details
Industrial Fiberglass Protection
The antenna is encased in a premium fiberglass radome, offering superior UV resistance, anti-corrosion properties, and waterproof performance for permanent outdoor installation.
Standard N-Male Connector
Equipped with a high-quality N-J (N-Male) interface, ensuring low insertion loss and high compatibility with industrial base stations and outdoor access points.
Professional Test Report
Verified with Agilent E5071C: VSWR maintains ≤ 1.5 across both 2.4GHz and 5.8GHz operational bands.
Ideal Applications
Outdoor Network Coverage
Perfect for municipal WiFi, campus networks, and industrial park wireless backhaul.
IoT Base Stations
Ideal for LoRa gateways, Zigbee concentrators, and smart city infrastructure sensors.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this compatible with standard WiFi routers?
A: Yes, it supports both 2.4G and 5.8G WiFi bands. However, you may need an N-to-SMA adapter cable depending on your device's interface.
Q: Can it be used in marine environments?
A: The fiberglass and nickel-plated copper construction offer high corrosion resistance, suitable for coastal outdoor deployment.
