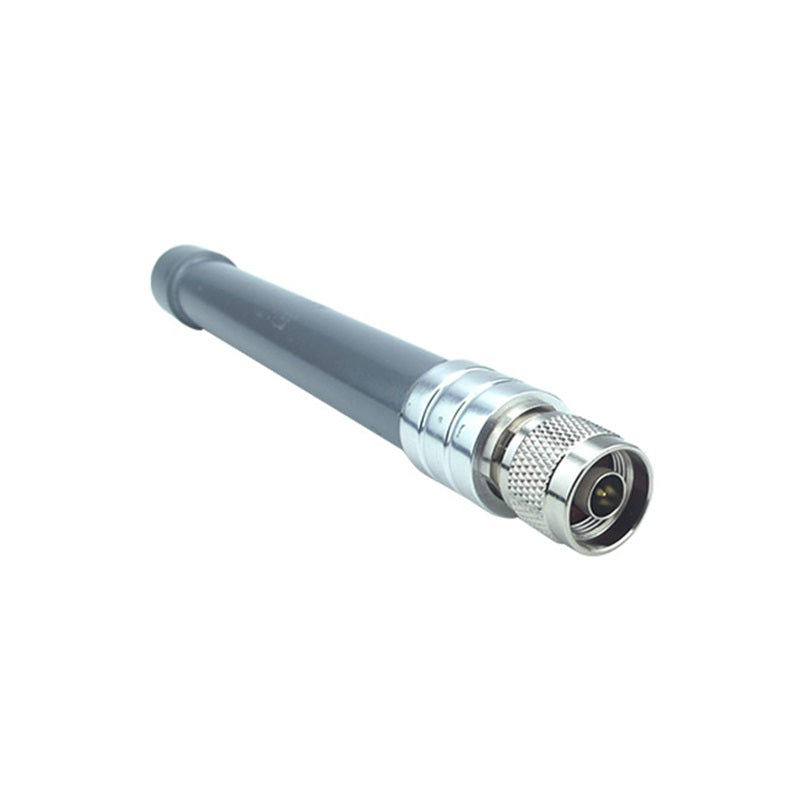

TXWF-BLG-18: 2.4/5.8GHz Dual-Band 6dBi High-Gain Antenna
TXWF-BLG-18: 2.4/5.8GHz Dual-Band 6dBi High-Gain Antenna
10000 in stock
Couldn't load pickup availability
SKU:TXWF-BLG-18
Product Overview
The TXWF-BLG-18 is a professional-grade dual-band omnidirectional fiberglass antenna, meticulously engineered for 2.4GHz and 5.8GHz wireless communication. Featuring a high 6.0 dBi peak gain, it significantly extends signal range and penetration. Encased in a durable, weather-resistant Fiberglass (Glass Steel) radome, it is designed for permanent outdoor installation in industrial IoT, WiFi coverage, and smart city environments.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 2.4GHz / 5.8GHz Dual-Band |
| Peak Gain | 6.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | N-J (N-Male) |
| Radome Material | Fiberglass (Glass Steel) |
| Antenna Height | ~180 mm |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
Product Details
Rugged Fiberglass Construction
Built with a high-strength fiberglass radome, the antenna is UV-resistant, waterproof, and anti-corrosive, making it ideal for harsh outdoor environments and long-term deployment.
Industrial N-Male Interface
Features a standard N-Male (N-J) connector made of high-quality nickel-plated copper, ensuring low signal loss and a secure connection for base stations and industrial routers.
Professional Test Report
Verified with Agilent E5071C: Measured VSWR ≤ 1.5 across 2.4GHz and 5.8GHz bands.
Ideal Applications
Outdoor WiFi Hotspots
Dual-band support for enterprise WiFi coverage and public campus hotspots.
Industrial Wireless Gateways
Data transmission for industrial automation, smart agriculture, and IoT base stations.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Can this antenna be used for both 2.4G and 5.8G simultaneously?
A: Yes, it is a dual-band antenna designed to support both frequency ranges efficiently with a single feed point.
Q: Is it suitable for marine environments?
A: The fiberglass material and sealed design offer excellent resistance to corrosion, making it suitable for coastal or high-humidity outdoor applications.
