TXGN-JW-5 2.5dBi High-Gain 1575MHz GPS/GNSS Elbow Antenna
TXGN-JW-5 2.5dBi High-Gain 1575MHz GPS/GNSS Elbow Antenna
10000 in stock
Couldn't load pickup availability
SKU:txgn-jw-5
Product Overview

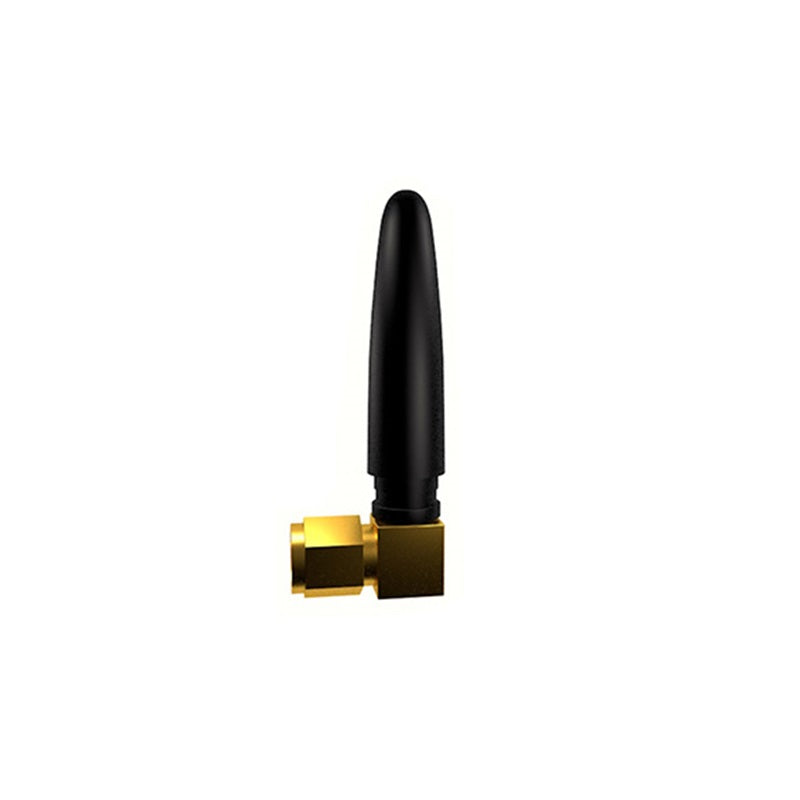

The TXGN-JW-5 is a professional-grade 1575.42MHz GPS/GNSS omnidirectional antenna, meticulously engineered for high-precision satellite positioning. Featuring a 2.5 dBi peak gain and a compact 90-degree elbow design, it ensures reliable signal reception for various tracking systems. Encased in durable TPE material, it provides a cost-effective and robust solution for terminal devices and vehicle positioning units.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 1575.42 MHz (GPS/GNSS) |
| Peak Gain | 2.5 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |
| Radome Material | TPE (Flexible & Durable) |

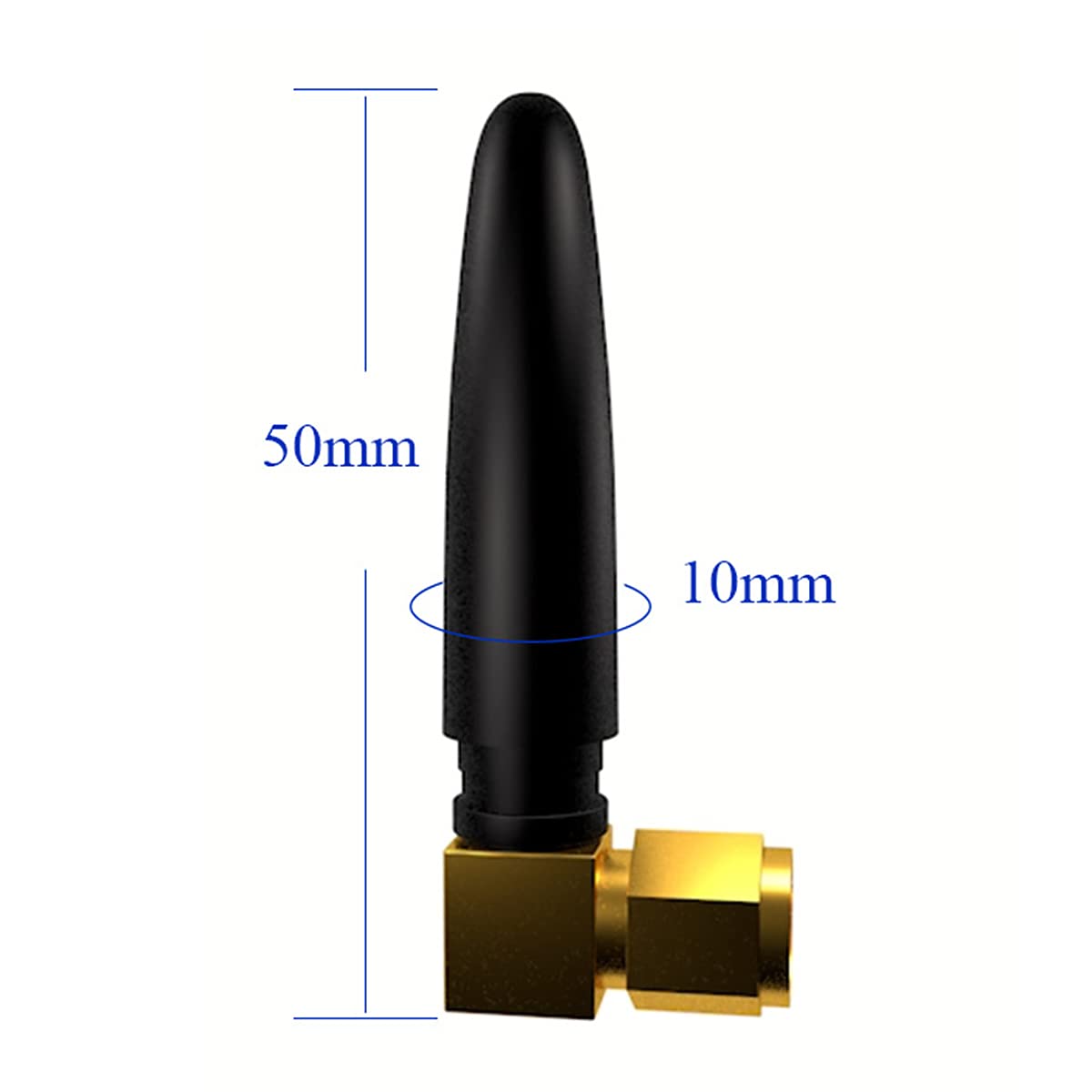

| Total Height | 50 mm |
| Impedance | 50 Ω |
| Polarization | Vertical |
Product Details

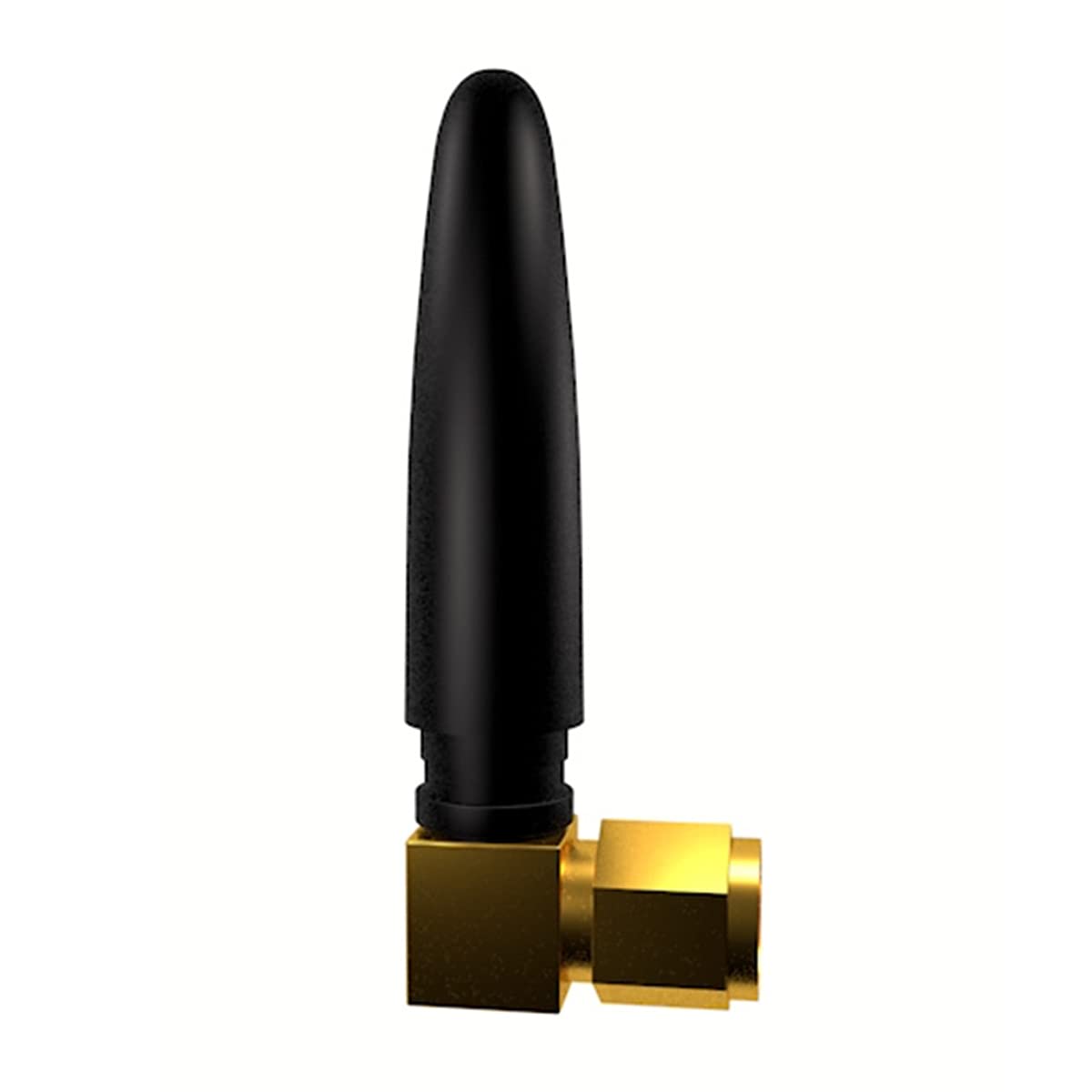

90° Elbow Connector Design
The fixed elbow design is ideal for space-constrained terminals, providing a low-profile installation for vehicle-mounted devices or handheld trackers.

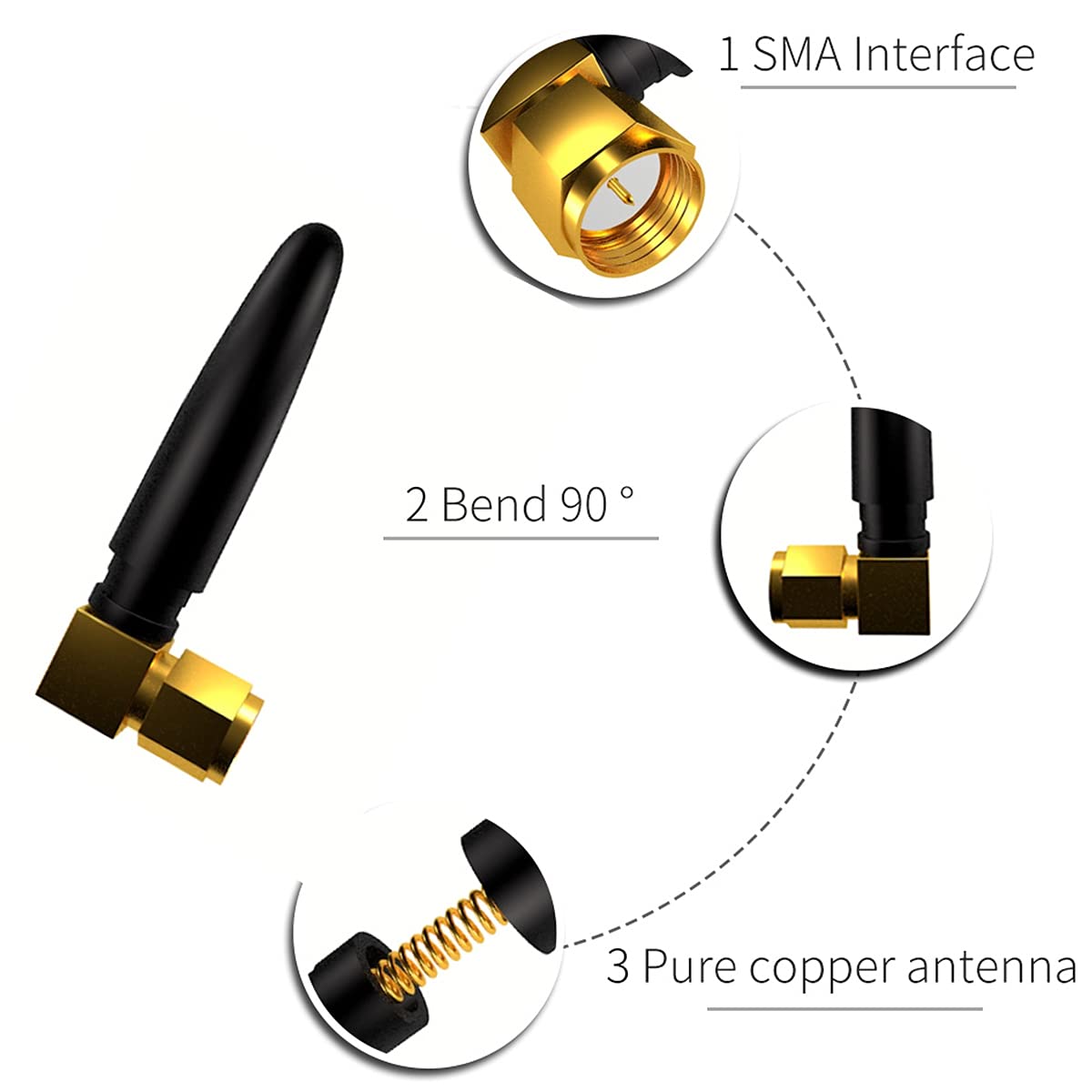

High-Purity Copper Core
Built with a high-quality copper radiator and gold-plated SMA interface to minimize signal loss and ensure consistent performance in 1575MHz GPS bands.
Professional Test Report
Precision-tuned for performance: VSWR measured at ≤ 1.5 for peak satellite reception efficiency.
Ideal Applications
Vehicle Positioning
Automotive GPS units, fleet management trackers, and taxi dispatch systems.
Smart Terminal Devices
IoT handheld terminals, logistics tracking boxes, and timing synchronization units.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this compatible with Beidou or GLONASS?
A: It is specifically tuned for 1575.42 MHz (GPS L1). While it may receive some GNSS signals near this band, it is optimized for GPS performance.
Q: Is the connector SMA Male or Female?
A: It is an SMA-J (SMA Male), featuring internal threads and a center pin.
