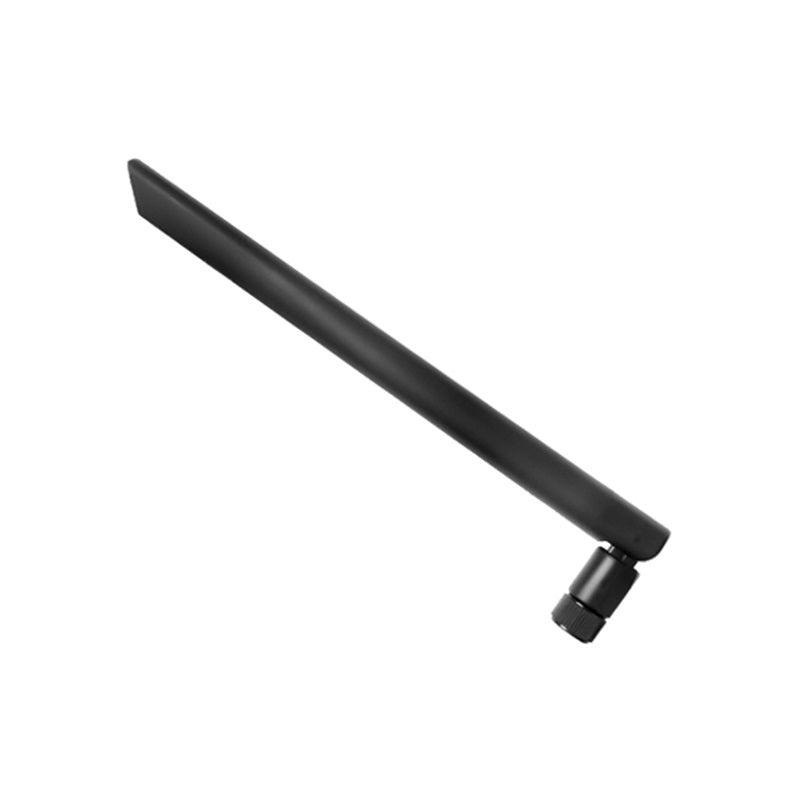

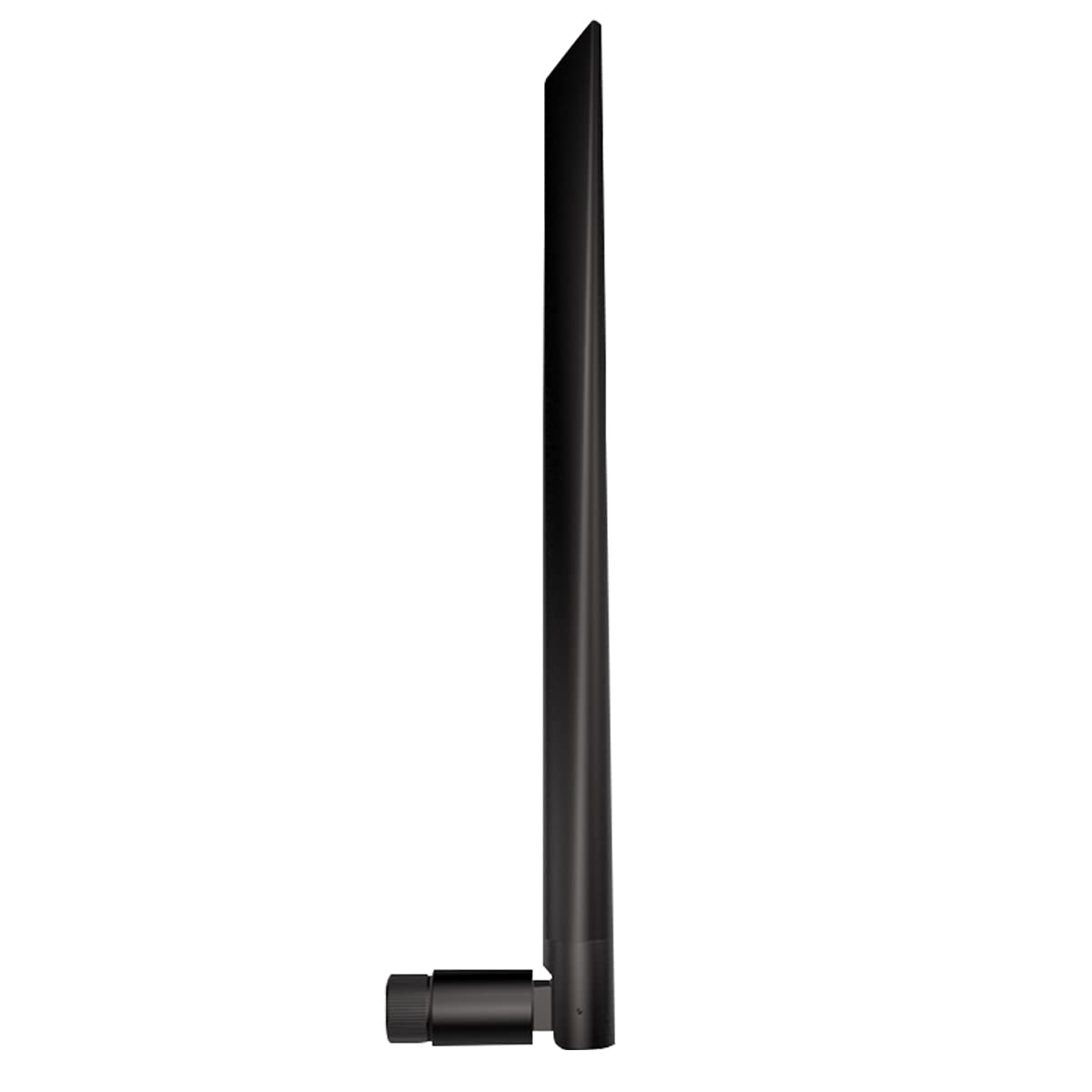

TXGN-JKD-20 3.3dBi High-Gain 2G/GSM/GPRS/NB-IoT Rubber Antenna
TXGN-JKD-20 3.3dBi High-Gain 2G/GSM/GPRS/NB-IoT Rubber Antenna
10000 in stock
Couldn't load pickup availability
SKU:txgn-jkd-20
Product Overview
The TXGN-JKD-20 is a professional-grade multi-band rubber antenna designed for 2G, GSM, GPRS, and NB-IoT applications. Engineered for high stability, it features a 3.3 dBi peak gain and a pure copper internal radiator (not a common spring structure) for superior bandwidth and consistency. Encased in flexible TPEE material with a bendable design, it is ideal for mobile terminals, routers, and industrial IoT gateways.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 824~960 / 1710~1990 MHz |
| Peak Gain | 3.3 dBi |
| VSWR | ≤ 2.5 |
| Connector Type | SMA-J (SMA Male) |
| Radome Material | TPEE (Weather-resistant) |
| Overall Length | 200 mm |
| Polarization | Linear (Vertical) |
| Power Capacity | 20W |
Product Details

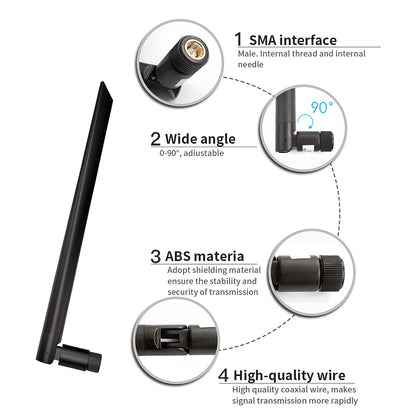

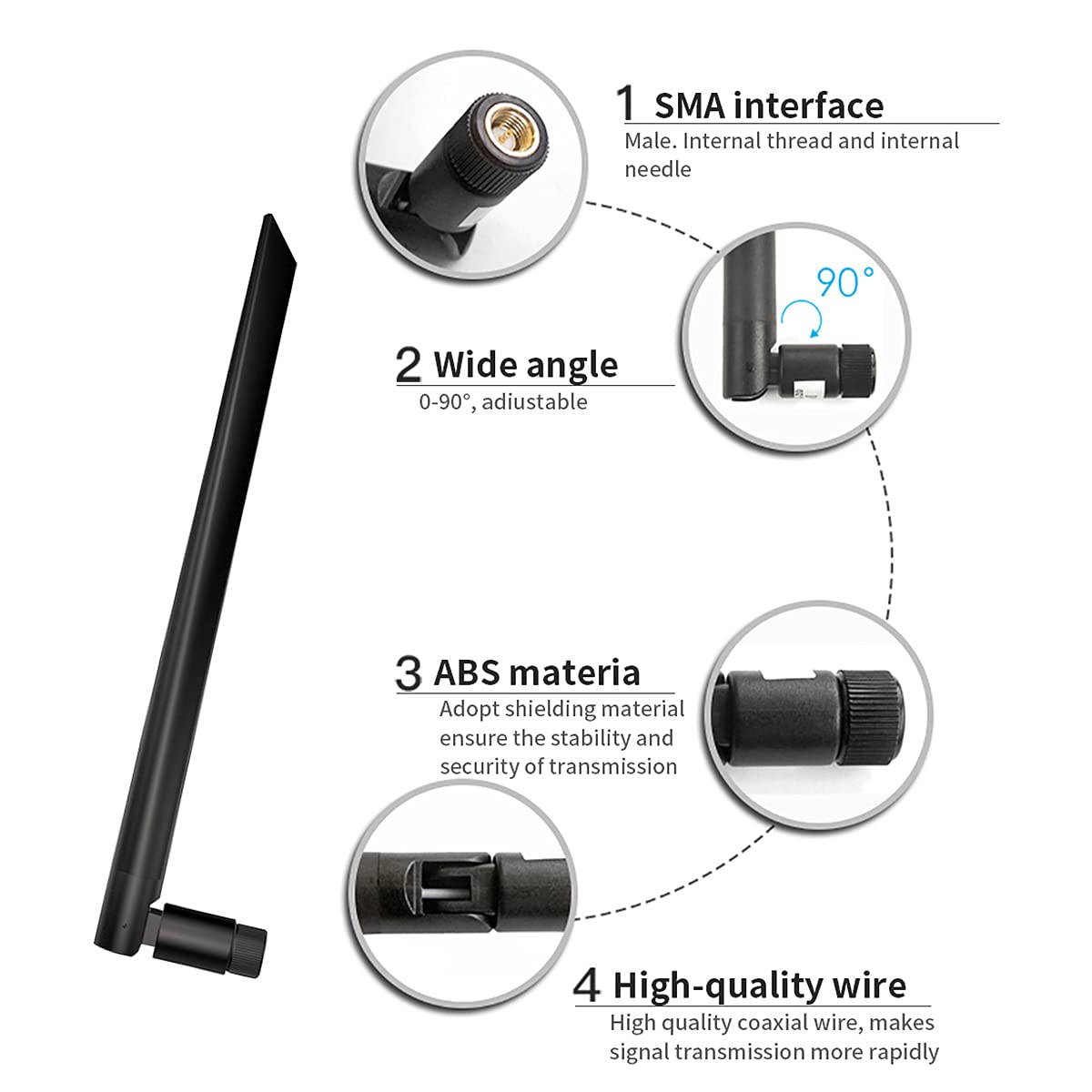

Bendable 90° Design
The antenna body can be folded at a 90-degree angle, allowing for flexible positioning to optimize signal reception in tight spaces or specific orientations.
Standard SMA-J Interface
Equipped with a high-quality nickel-plated SMA male connector for excellent durability and low insertion loss across all supported bands.
Professional Test Report
Performance verified with Agilent E5071C: Optimized VSWR and Omnidirectional radiation pattern for reliable wide-area coverage.
Ideal Applications
Cellular IoT (NB-IoT)
Perfect for smart metering, environmental sensors, and low-power wide-area networks.
Industrial Data Radios
Reliable communication for 2G/GPRS telemetry modules and wireless controllers.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Which frequency bands does this antenna support?
A: It supports the 824~960 MHz and 1710~1990 MHz bands, covering global 2G, GSM, and NB-IoT services.
Q: Can it be used outdoors?
A: The TPEE material is weather-resistant (-40°C to +85°C), but it is primarily designed as a device-mounted terminal antenna.
