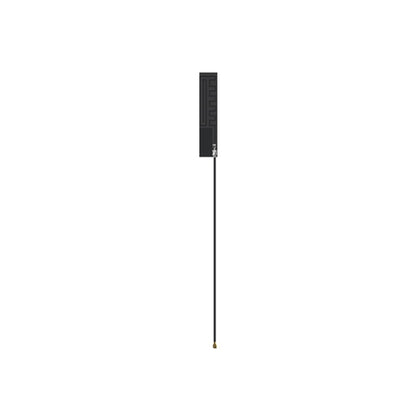

TXGN-FPC-3407 5dBi High-Gain Internal GPS/GNSS FPC Antenna
TXGN-FPC-3407 5dBi High-Gain Internal GPS/GNSS FPC Antenna
10000 in stock
Couldn't load pickup availability
SKU:txgn-fpc-3407
Product Overview
The TXGN-FPC-3407 is a high-performance internal GPS/GNSS flexible antenna, designed for compact and sleek electronic device integration. Featuring a 5.0 dBi peak gain and a precision-engineered FPC (Flexible Printed Circuit) radiator, it provides superior signal reception for 1575.42 MHz bands. Its ultra-slim profile and 3M adhesive backing make it perfect for embedded positioning solutions in IoT and handheld devices.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 1575.42 MHz (GPS/GNSS) |
| Peak Gain | 5.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | IPEX-1 (U.FL) |
| Antenna Material | FPC (Flexible Printed Circuit) |
| Dimensions | 34 mm x 7 mm |
| Cable Length | 120 mm (RG1.13) |
| Impedance | 50 Ω |
Product Details

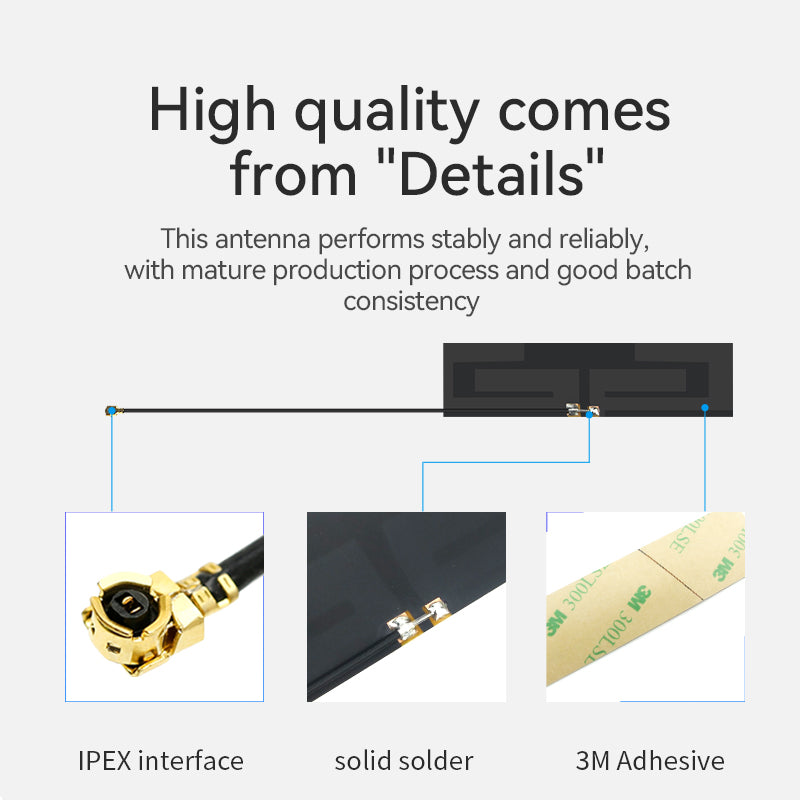

Flexible FPC Design
Constructed with high-resilience FPC, this antenna can be bent and applied to curved surfaces inside device enclosures, offering maximum design flexibility.
Reliable Signal Transmission
Features low-loss RG1.13 coaxial cable and a standard IPEX-1 interface to ensure stable connectivity and minimize signal attenuation in embedded systems.

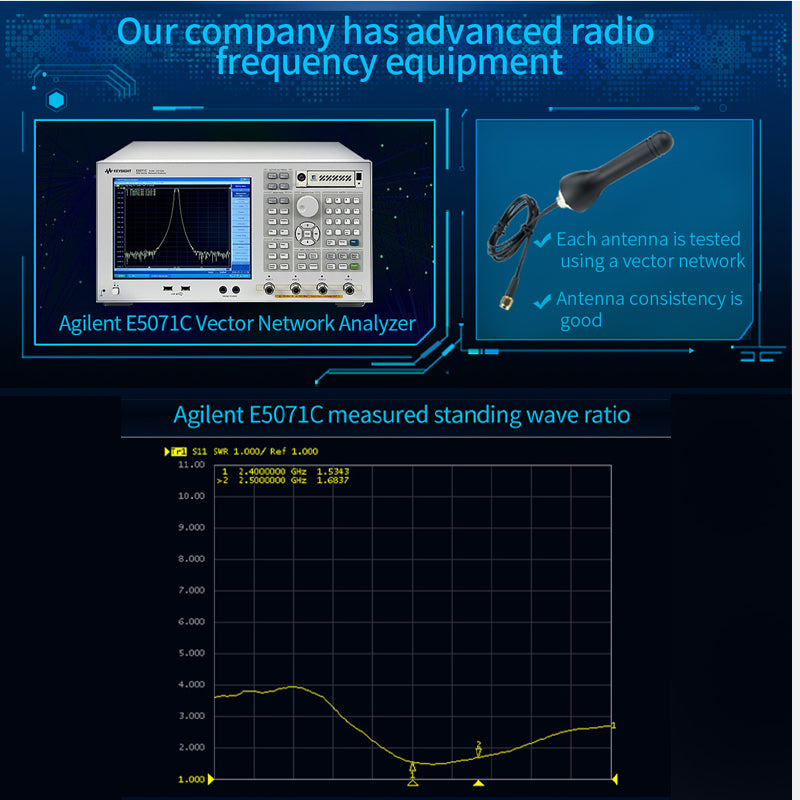

Professional Test Report
Verified Performance: Maintains low VSWR ≤ 1.5 at the center frequency for peak efficiency.
Ideal Applications
IoT & Tracking
Asset trackers, logistics monitoring, and smart city sensors.
Consumer Electronics
Smart watches, handheld terminals, and portable navigation units.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this antenna suitable for outdoor use?
A: It is an internal antenna meant to be mounted inside a device enclosure, which should be waterproofed if used outdoors.
Q: How do I install this antenna?

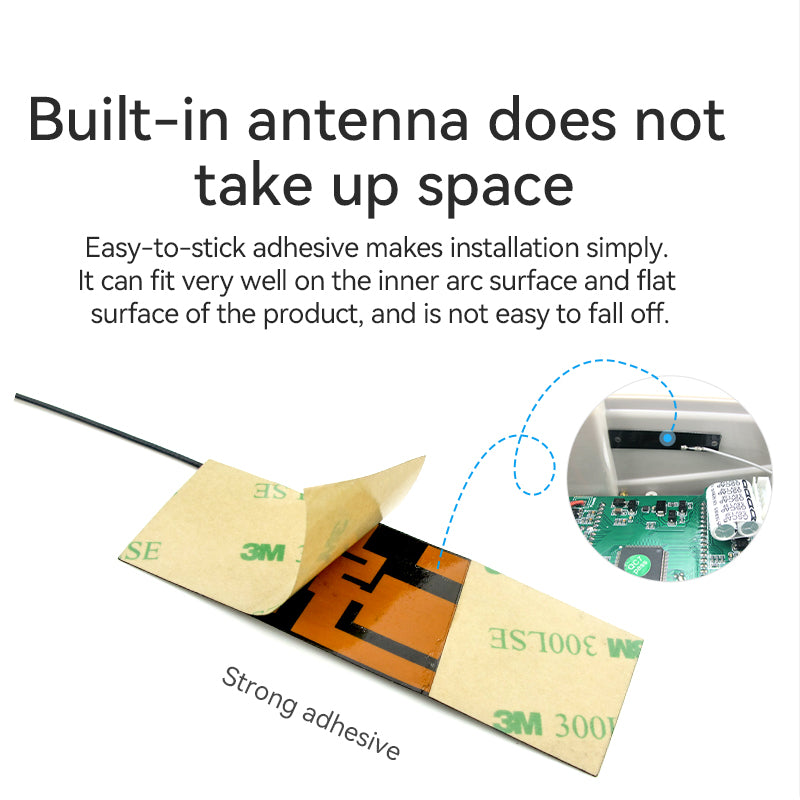

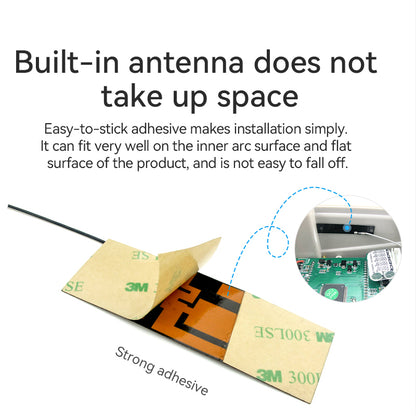

A: Simply peel off the 3M adhesive backing and stick it to a clean, non-metallic surface inside your device.
