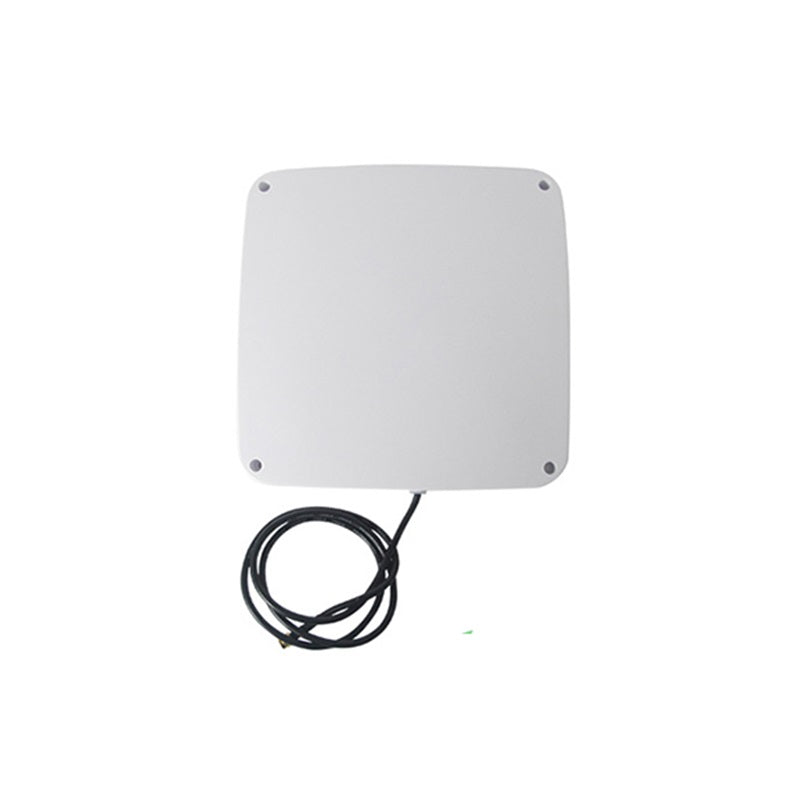

TX900-PB-2323 915MHz 868MHz Internal PCB Antenna 2.0dBi IPEX
TX900-PB-2323 915MHz 868MHz Internal PCB Antenna 2.0dBi IPEX
10000 in stock
Couldn't load pickup availability
SKU:tx900-pb-2323
Product Overview
The TX900-PB-2323 is a high-performance 900MHz (824-960MHz) internal PCB patch antenna, meticulously engineered for LoRa and Sub-GHz wireless communication. Featuring a 2.0 dBi peak gain and a precision-tuned PCB radiator, it ensures stable signal coverage within compact device enclosures. Integrated with a standard IPEX-1 connector and high-quality RF1.13 cable, it is an ideal solution for smart home gateways and industrial IoT nodes.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 824 - 960 MHz (Supports 868/915MHz LoRa) |
| Peak Gain | 2.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | IPEX-1 (MHF) |
| PCB Size | 23 * 23 mm |
| Cable Type & Length | RF1.13 / 100 mm (Customizable) |
| Input Impedance | 50 Ω |
| Polarization | Linear Polarization |
Product Details
Internal PCB Integration
Adopting a compact 23x23mm PCB design, this antenna is built for internal mounting. It comes with 3M adhesive backing for quick and secure installation inside plastic device shells.
Standard IPEX Connector
Equipped with a high-quality gold-plated IPEX connector to ensure low loss and stable signal transmission between the antenna and the wireless module.
Professional Test Report
Verified Performance: Measured VSWR at ≤ 1.5 across the 824~960MHz band, ensuring maximum efficiency for LoRa systems.
Ideal Applications
Smart Metering & LoRa
Embedded signal solution for smart water meters, gas meters, and LoRaWAN gateways.
Industrial Automation
Reliable Sub-GHz data transmission for industrial wireless sensors and control modules.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Does this antenna support 915MHz and 868MHz bands?
A: Yes, it covers 824-960MHz, making it compatible with both US (915MHz) and EU (868MHz) LoRa frequency bands.
Q: Can I stick this directly onto a metal surface?
A: For internal PCB antennas, it is recommended to stick them to plastic enclosures; attaching directly to metal will significantly impact RF performance.
