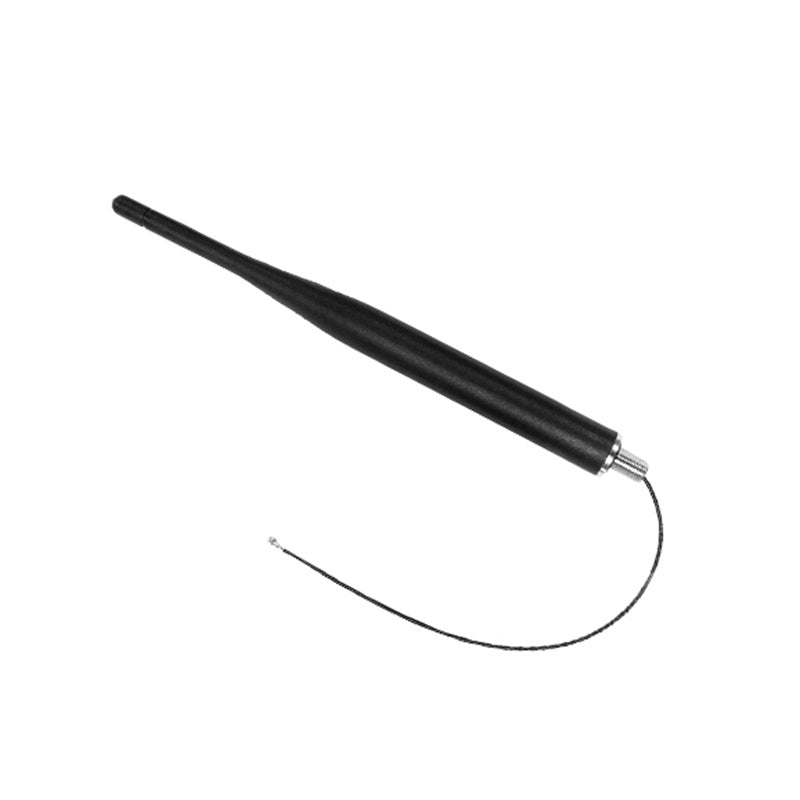

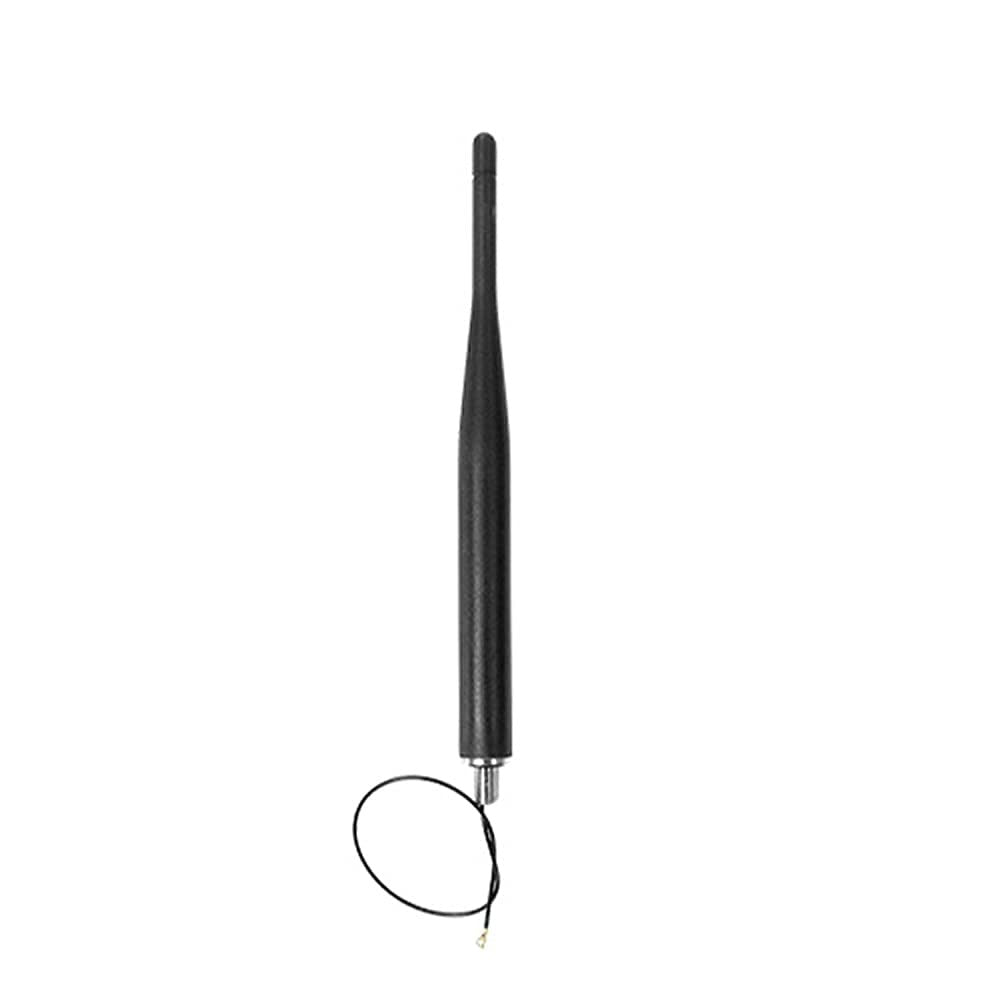

TX868-JZLW-15 868MHz 3dBi Rubber Cabinet Antenna IPEX-1
TX868-JZLW-15 868MHz 3dBi Rubber Cabinet Antenna IPEX-1
10000 in stock
Couldn't load pickup availability
SKU:tx868-jzlw-15
Product Overview
The TX868-JZLW-15 is a high-performance 868MHz rubber plastic cabinet antenna designed for stable LoRa and Sub-GHz wireless communication. It features a 3.0 dBi gain and an IPEX-1 (U.FL) interface with a 150mm feeder cable, making it ideal for external mounting on equipment cabinets. Encased in durable, weather-resistant TPE-E material, it provides reliable omnidirectional coverage for industrial IoT, smart security, and outdoor telemetry applications.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 832 - 920 MHz (Center: 868MHz) |
| Peak Gain | 3.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | IPEX-1 (U.FL) |
| Feeder Cable Length | 150 mm (Customizable) |
| Radome Material | TPE-E (Tough & Weatherproof) |
| Impedance | 50 Ω |
| Power Capacity | 20 W |

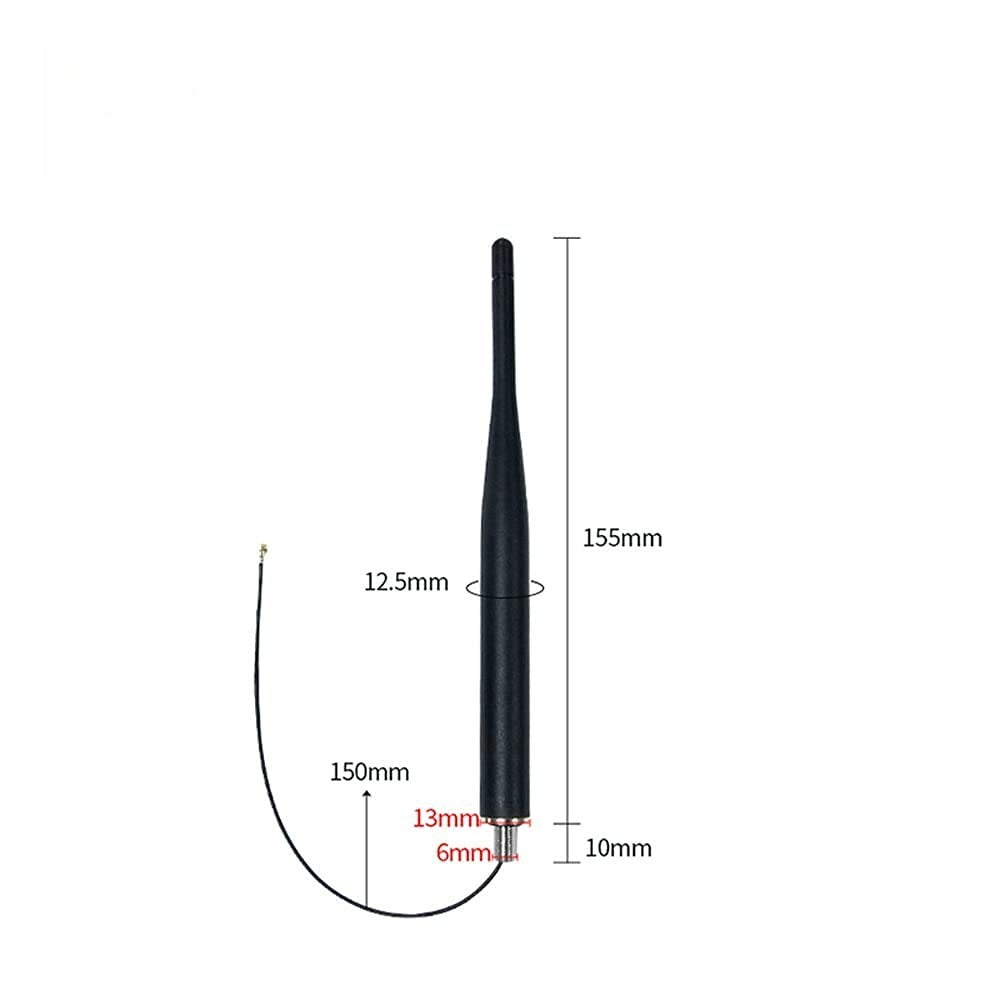

| Dimensions | 165mm x Φ12.5mm |
Product Details
Industrial Cabinet Optimization

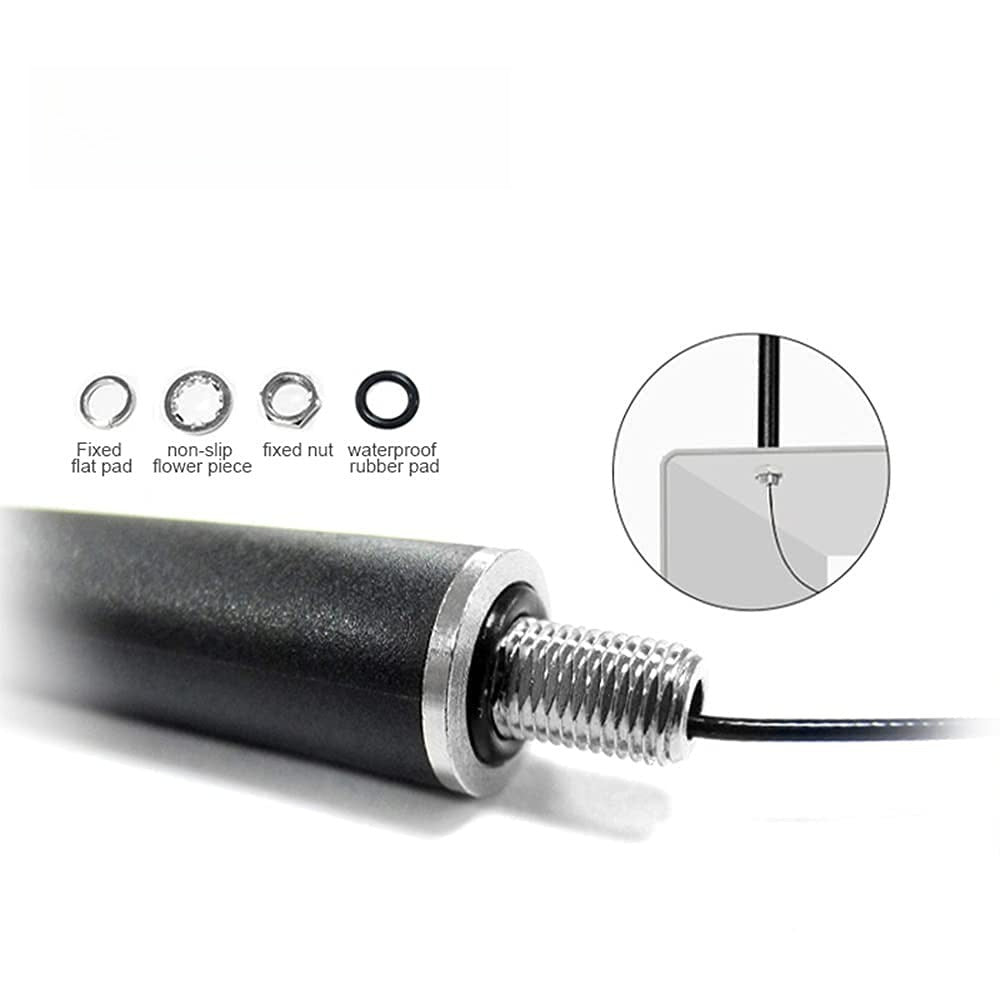

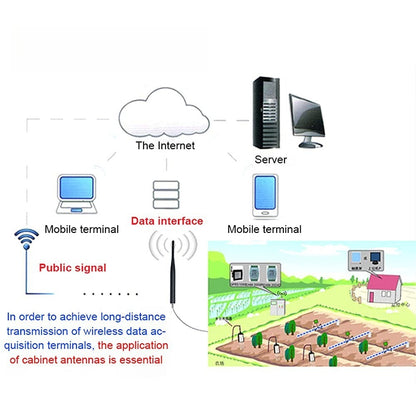

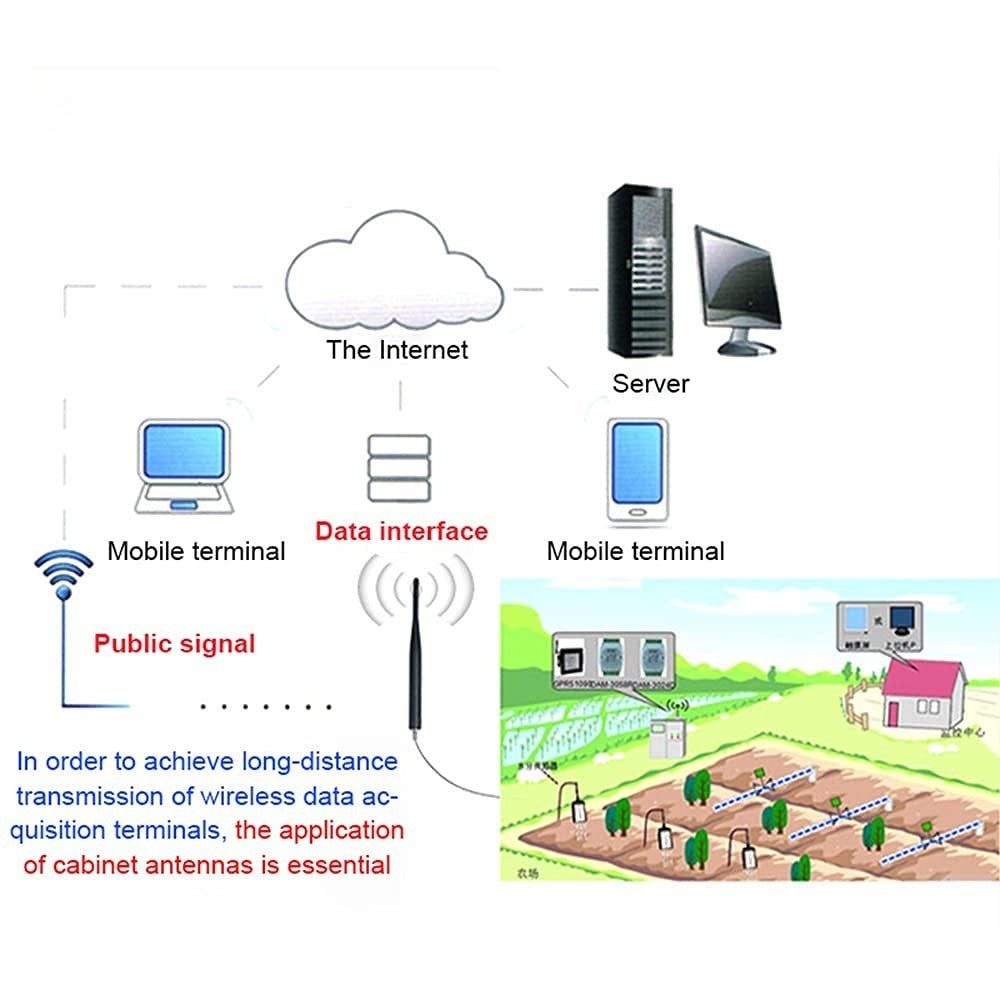

Specifically designed for control cabinets and equipment boxes, this antenna allows for external signal transmission while the module remains safely inside, overcoming metal shield interference.

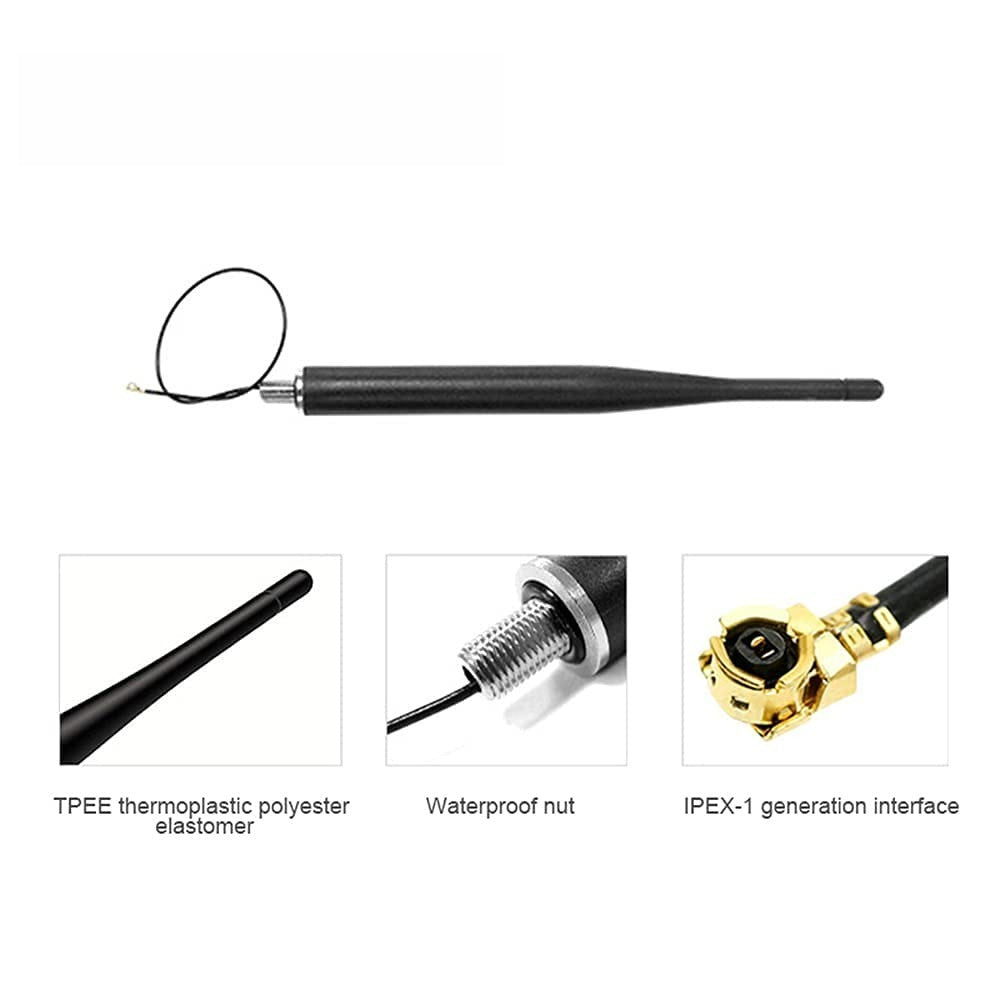

Premium IPEX-1 Interface
Equipped with a high-quality 1st generation IPEX connector and a 150mm low-loss coaxial cable, ensuring stable connection and flexible installation inside dense device enclosures.
Professional Test Report
Verified Performance: VSWR measured at ≤ 1.5 @ 868MHz for high radiation efficiency.
Ideal Applications
Control Cabinets
Perfect for power distribution boxes and industrial automation control systems.
Logistics & Security
Reliable data links for fleet management and smart property security gateways.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this antenna compatible with 915MHz modules?
A: The antenna covers 832-920MHz, which includes the 915MHz band, but it is optimized for 868MHz centers.
Q: Can the cable length be customized?
A: Yes, Ebyte offers customized feeder lengths and connector types for batch orders.
