TX868-JKS-IPX20 868MHz 2.5dBi LoRa IPEX Omnidirectional Antenna
TX868-JKS-IPX20 868MHz 2.5dBi LoRa IPEX Omnidirectional Antenna
10000 in stock
Couldn't load pickup availability
SKU:tx915-jk-11b
Product Overview

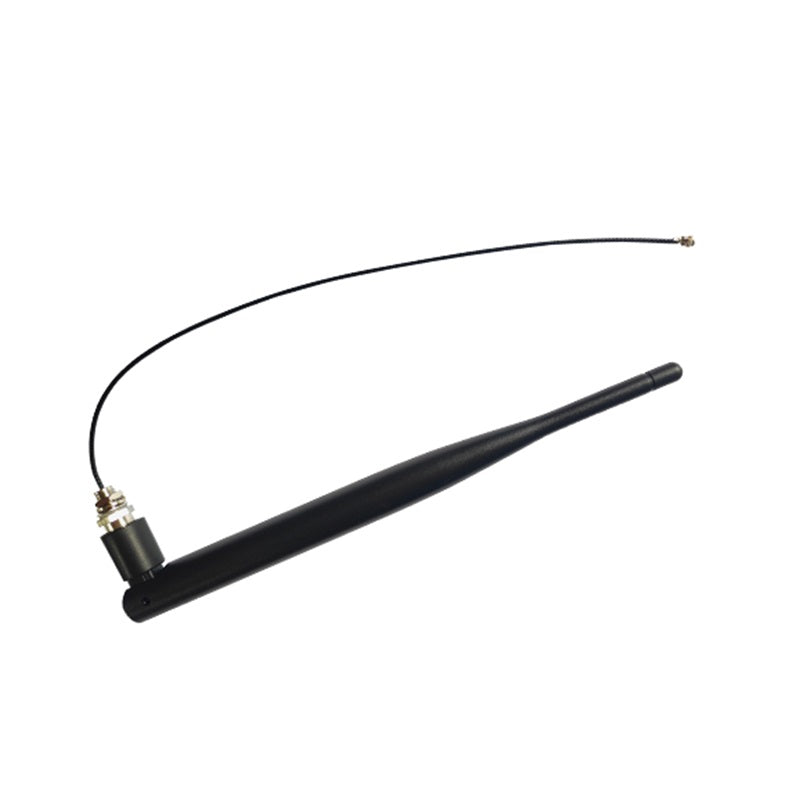

The TX868-JKS-IPX20 is a high-performance 868MHz omnidirectional rod antenna designed for long-range Sub-GHz wireless communication. Featuring a 2.5 dBi gain and an IPEX (U.FL) connector, it is specifically optimized for LoRa, Sigfox, and other IoT applications. Encased in durable, weather-resistant TPEE material, its foldable design (0-90°) ensures flexible installation and reliable signal stability for industrial and smart environments.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 860 - 880 MHz (Center 868MHz) |
| Peak Gain | 2.5 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | IPEX (U.FL) |
| Antenna Height | 200 mm |
| Radome Material | TPEE (UV & Weather Resistant) |
| Polarization | Vertical Polarization |
| Impedance | 50 Ω |
Product Details
IPEX Connector Interface
Designed for internal module connection, the IPEX (U.FL) interface ensures a compact and secure link with the wireless module, minimizing signal loss in transmission.
Flexible 90° Elbow Design
The antenna features a sturdy rotatable joint that allows it to bend from 0 to 90 degrees, accommodating different spatial orientations and improving signal line-of-sight.
Professional Test Report
Verified Performance: VSWR measured at ≤ 1.5 @ 868MHz for optimal efficiency.
Ideal Applications
LoRa & Smart Agriculture
Perfect for soil sensors, remote irrigation controllers, and long-range gateway communication.
Industrial IoT & Metering
Reliable data transmission for wireless smart meters and factory automation sensors.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this antenna compatible with 915MHz modules?
A: This model is specifically tuned for 868MHz. For 915MHz applications, we recommend the TX915-JKS series for better impedance matching.
Q: Does this antenna require a separate adapter?
A: No, it comes with an integrated IPEX (U.FL) connector that plugs directly into compatible wireless modules.
