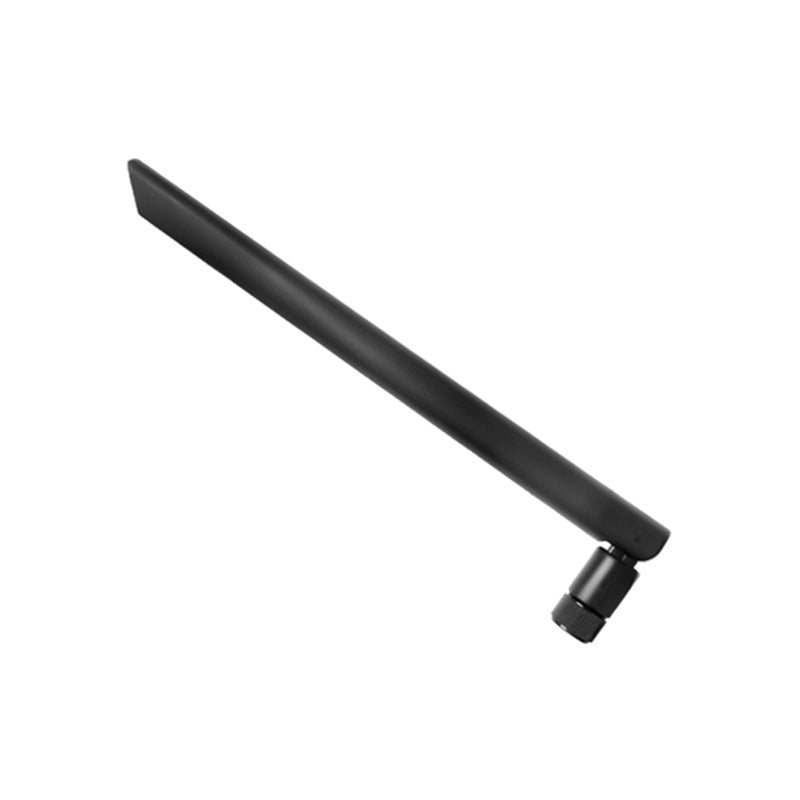

TX868-JKD-20 868MHz 3dBi LoRa Omnidirectional Antenna
TX868-JKD-20 868MHz 3dBi LoRa Omnidirectional Antenna
10000 in stock
Couldn't load pickup availability
SKU:tx868-jkd-20
Product Overview
The TX868-JKD-20 is a professional-grade 868MHz omnidirectional rubber antenna, meticulously engineered for high-stability Sub-GHz wireless communication. Featuring a 3.0 dBi peak gain and a precision-tuned bendable radiator, it significantly enhances signal penetration for LoRa and Sigfox applications. Encased in durable TPEE material, it ensures reliable performance for industrial IoT, smart metering, and long-range remote control systems.

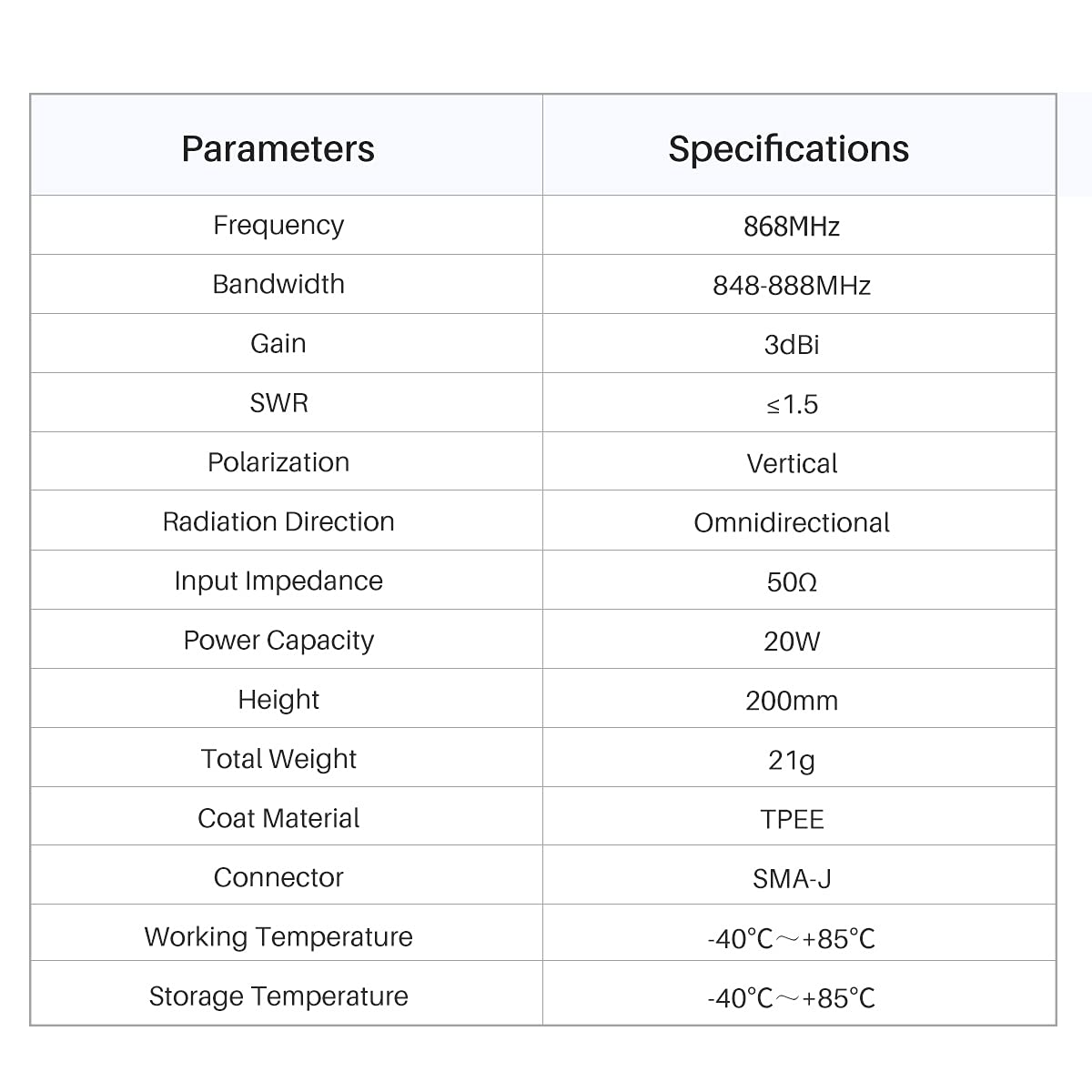

Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 848 - 888 MHz (Center 868MHz) |
| Peak Gain | 3.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |
| Radome Material | TPEE (Flexible & Weather-resistant) |

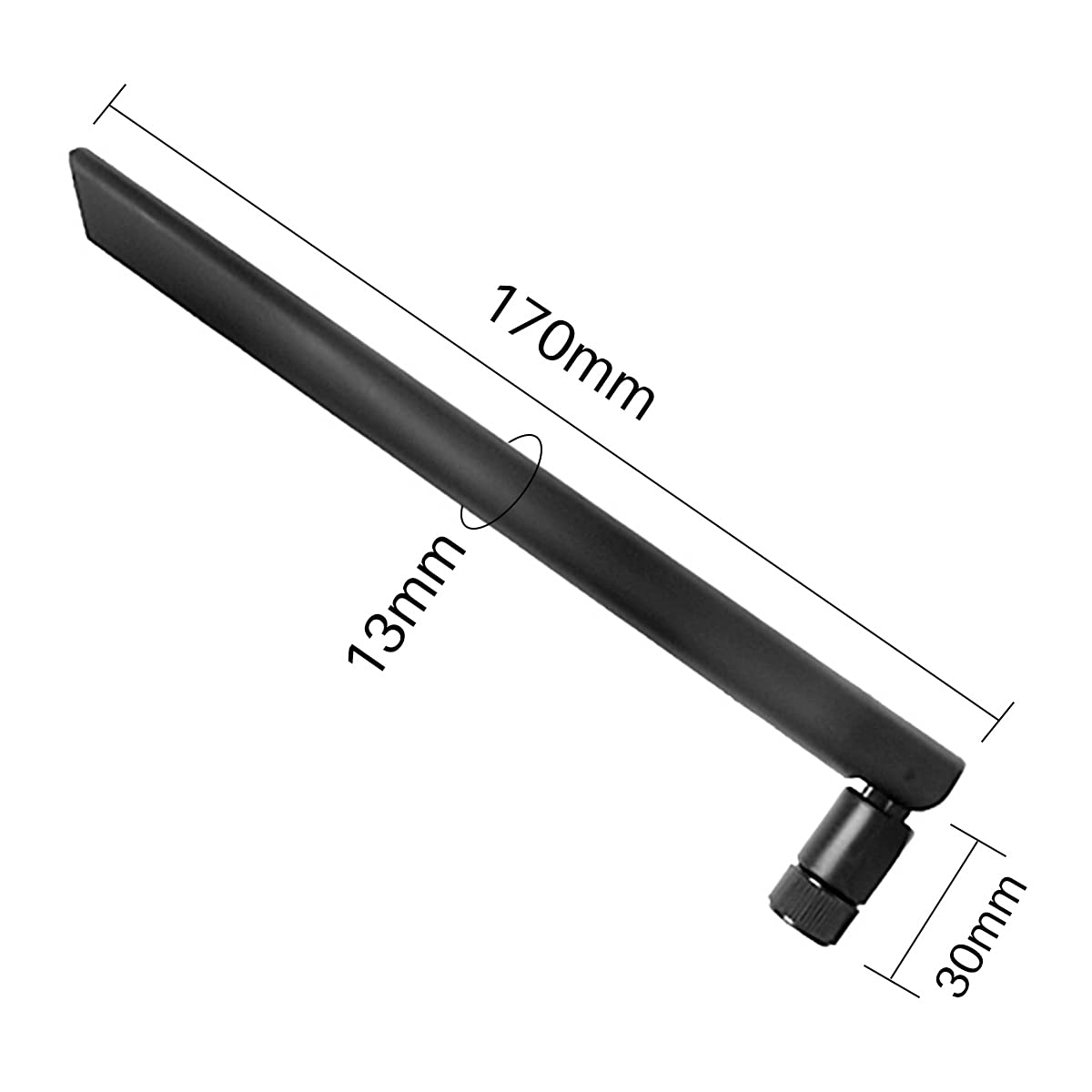

| Antenna Height | 200 mm |
| Impedance | 50 Ω |
| Power Capacity | 20 W |
Product Details
Flexible Bendable Design
The TX868-JKD-20 features a bendable joint, allowing for easy adjustment to improve signal orientation and fit within various enclosure constraints.
Standard SMA-J Interface
Equipped with a high-quality nickel-plated copper SMA-J connector, ensuring low signal loss and high durability for repeated connections.
Professional Test Report
Verified Performance: Measured VSWR ≤ 1.5 at 868MHz center frequency, providing optimal impedance matching.
Ideal Applications
LoRa & Sigfox Solutions
Industrial IoT gateways, smart agriculture sensors, and environment monitoring nodes.
Smart Grid & Security
Wireless smart meters, security alarm systems, and remote telemetry.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this compatible with 868MHz LoRa modules?
A: Yes, it is specifically designed for the 868MHz band. Ensure your module has an SMA-K (Female) interface for compatibility.
Q: Can it be used for 915MHz systems?
A: While it may function, it is optimized for 868MHz. We recommend using a dedicated 915MHz antenna for the best performance in that band.
