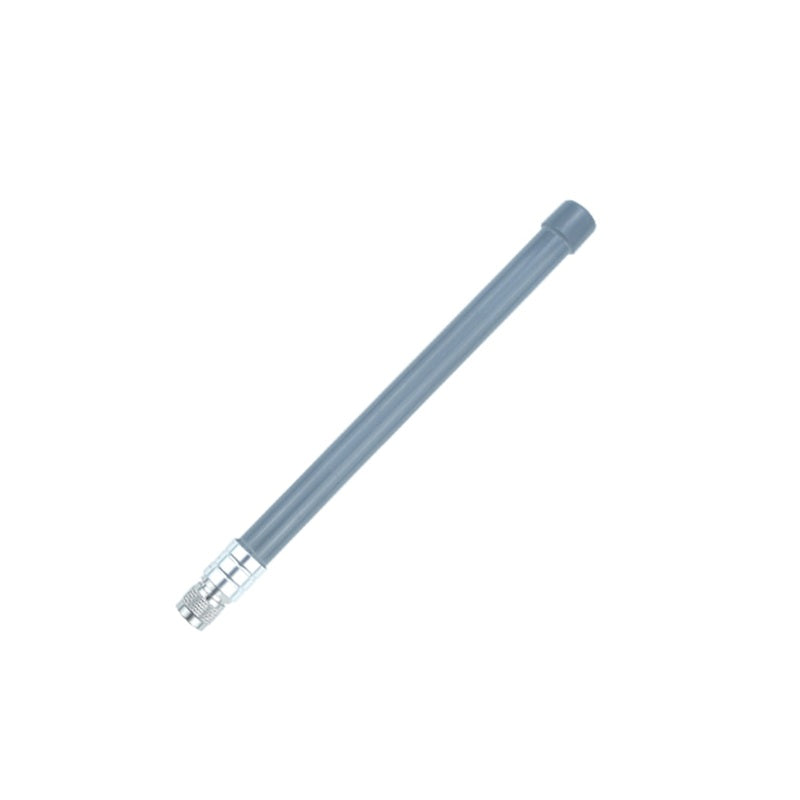

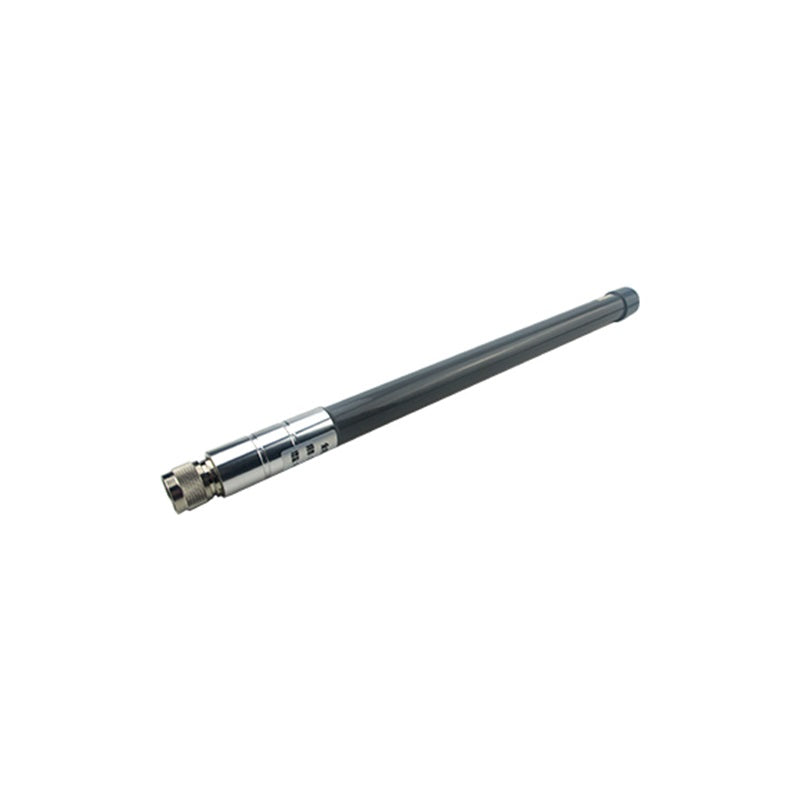

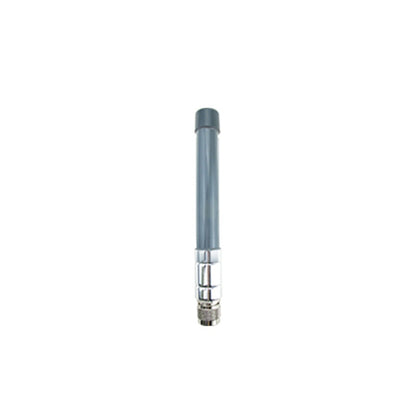

TX5800-BLG Series 5.8GHz High-Gain 5G WiFi Fiberglass Antenna
TX5800-BLG Series 5.8GHz High-Gain 5G WiFi Fiberglass Antenna
1000 in stock
Couldn't load pickup availability
SKU:tx5800-blg-35
The Ebyte TX5800-BLG / TX5G-BLG Series is an industrial-grade, omnidirectional fiberglass antenna collection specifically engineered for high-frequency 5.8GHz WiFi and 5G bands (5150–5850 MHz). Designed for high-speed wireless data transmission, these antennas are available in gain configurations from 2.0 dBi to 5.5 dBi. They are the ideal choice for outdoor wireless bridges, high-speed WLAN hotspots, and industrial 5G gateway deployments.
Constructed with a premium UV-resistant fiberglass radome, the TX5800 series offers IP67-rated durability for permanent outdoor mast mounting. The N-Type Male (N-J) connector ensures low-loss signal integrity and mechanical stability under high-vibration and extreme weather conditions. With a VSWR ≤ 1.5, these antennas provide peak efficiency for 5GHz spectrum applications.
Series Specification Comparison
Select the optimal 5.8GHz / 5G variant based on your distance and installation requirements:
| Parameter | TX5G-BLG-20 | TX5800-BLG-35 | TX5800-BLG-40 | TX5800-BLG-55 |
|---|---|---|---|---|
| Operating Frequency | 5.15–5.85 GHz | 5.72–5.85 GHz | 5.72–5.85 GHz | 5.72–5.85 GHz |
| Peak Gain | 2.0 dBi | 3.5 dBi | 4.0 dBi | 5.5 dBi |
| VSWR | ≤ 2.0 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 |
| Impedance | 50 Ω | |||
| Antenna Length | 200 mm | 350 mm | 400 mm | 550 mm |
| Connector | N-Type Male (N-J) | |||
| Radome Material | Fiberglass (Outdoor Rated) | |||
| Certification | CE / RoHS | |||
Updated: April 2026
Key Technical Details
① High-Frequency Pattern Stability
Unlike standard sub-GHz antennas, the TX5800 series is tuned for the short-wavelength characteristics of the 5.8GHz band. The 5.5 dBi model (550mm) provides a concentrated horizontal beam to bridge long distances between wireless access points, while the compact 2.0 dBi version offers a broader vertical spread for local area mesh coverage.
② Weatherproof Outdoor Construction
The hermetically sealed fiberglass radome protects internal high-purity copper elements from saltwater corrosion and UV degradation. This makes the TX5800 series particularly suitable for deployment on rooftops, industrial towers, or seaside installations where standard plastic antennas would fail within months.
Ideal Applications
🌐 Wireless Bridges
Point-to-point (PTP) and Point-to-Multipoint (PTMP) 5.8GHz data links for spanning large industrial sites or campuses.
📡 5G & WiFi 6/6E
Outdoor hotspots and 5G industrial gateway infrastructure requiring robust, high-frequency omnidirectional coverage.
🎥 Video Surveillance
Backhaul for outdoor wireless IP cameras and security systems operating in the 5.8GHz unlicensed spectrum.
🏙️ Smart City / Mesh
Municipal wireless mesh networks and environmental monitoring stations requiring high-bandwidth data transmission.
Frequently Asked Questions
1. Is this antenna compatible with standard WiFi routers?
Yes, but check your frequency. These antennas are for the 5GHz/5.8GHz band. If your router has an SMA connector, you will need an N-Female to SMA-Male pigtail cable to connect this professional fiberglass antenna.
2. Why use a fiberglass antenna instead of a standard plastic one?
Fiberglass is significantly more durable for outdoor use. It doesn't become brittle under sunlight and provides a better seal against moisture, which is critical for high-frequency 5.8GHz signals where even a small amount of water ingress can ruin performance.
3. Does the TX5G-BLG-20 support the full 5G spectrum?
The TX5G-BLG-20 is specifically tuned for the 5.1GHz to 5.8GHz range, which covers the primary 5G NR bands (unlicensed) used in industrial WiFi and private 5G mesh networking.
