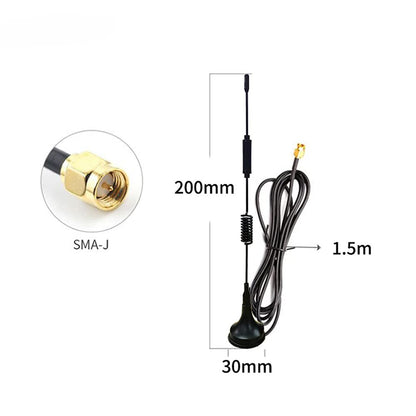

TX4G-XPl17-150: 4dBi 4G LTE Magnetic Suction Cup Antenna
TX4G-XPl17-150: 4dBi 4G LTE Magnetic Suction Cup Antenna
10000 in stock
Couldn't load pickup availability
SKU:tx4g-xpl17-150
Product Overview

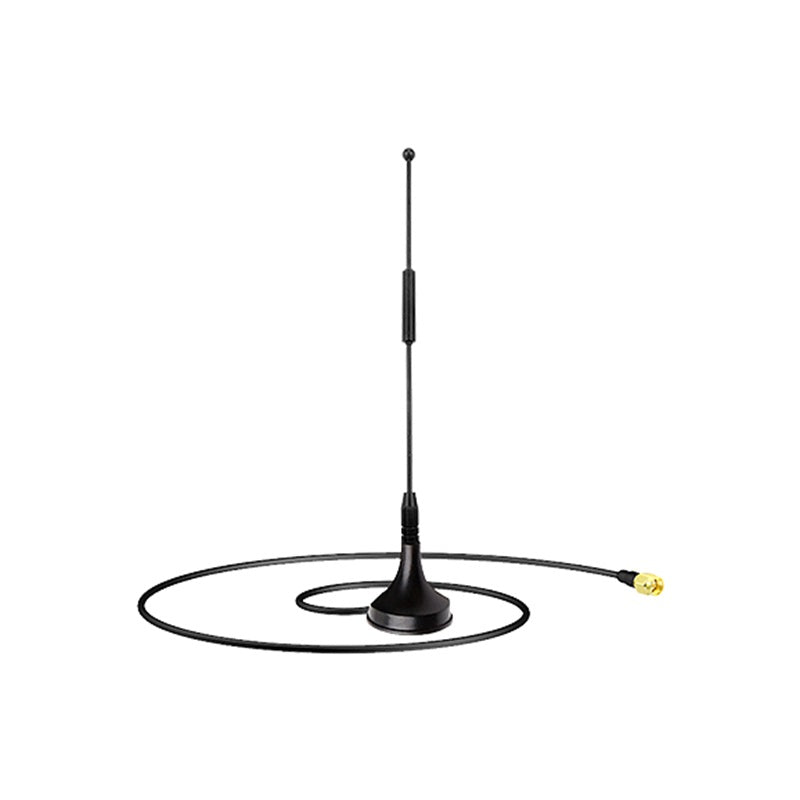

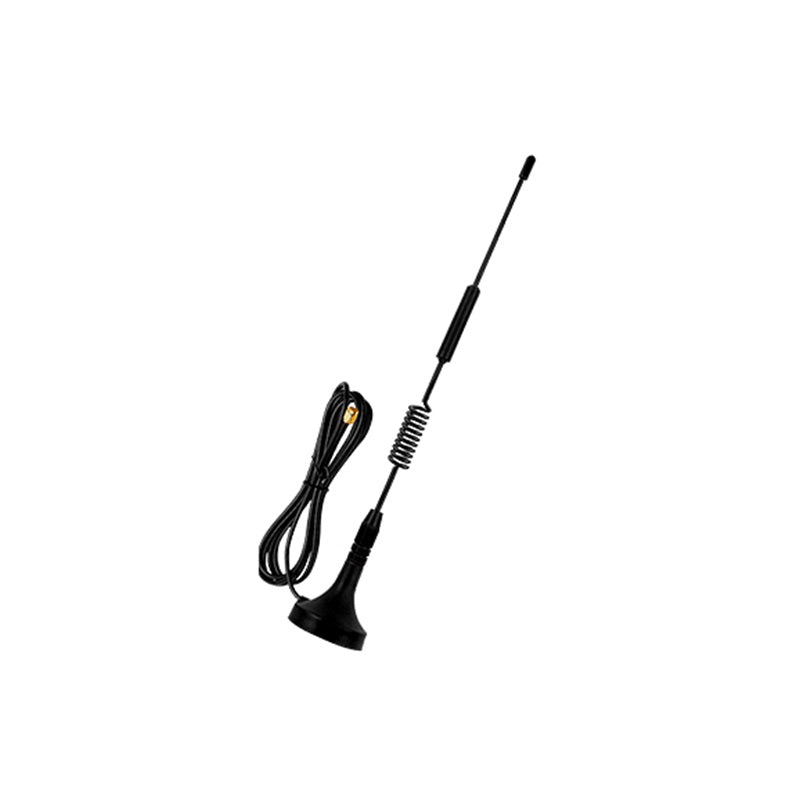

The TX4G-XPl17-150 is a professional-grade 4G LTE omnidirectional suction cup antenna, designed for high-performance cellular data transmission. Featuring a 4.0 dBi peak gain and a frequency range of 700-2700MHz, it provides full coverage for global 4G bands. Equipped with a strong magnetic base and a 1.5-meter RG174 cable, it ensures reliable signal reception for industrial IoT gateways, wireless modules, and remote monitoring systems.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 700 - 2700 MHz (4G LTE Full Band) |
| Peak Gain | 4.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |

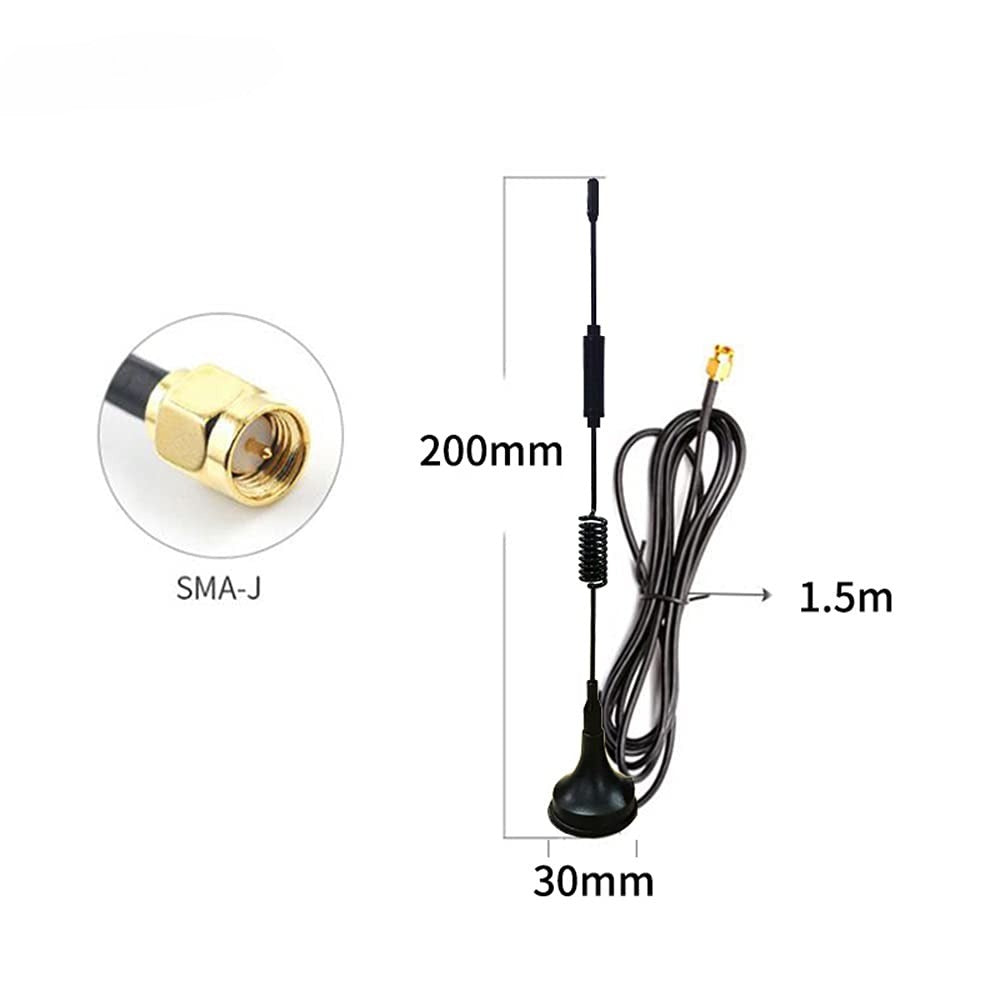

| Antenna Height | ~200mm |
| Cable Type & Length | RG174 / 1.5 Meters (150cm) |
| Impedance | 50 Ω |
| Mounting Method | Magnetic Suction Cup |
Product Details

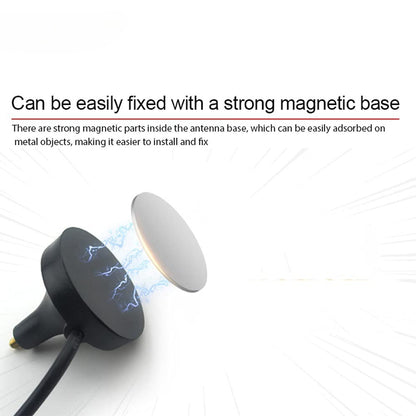

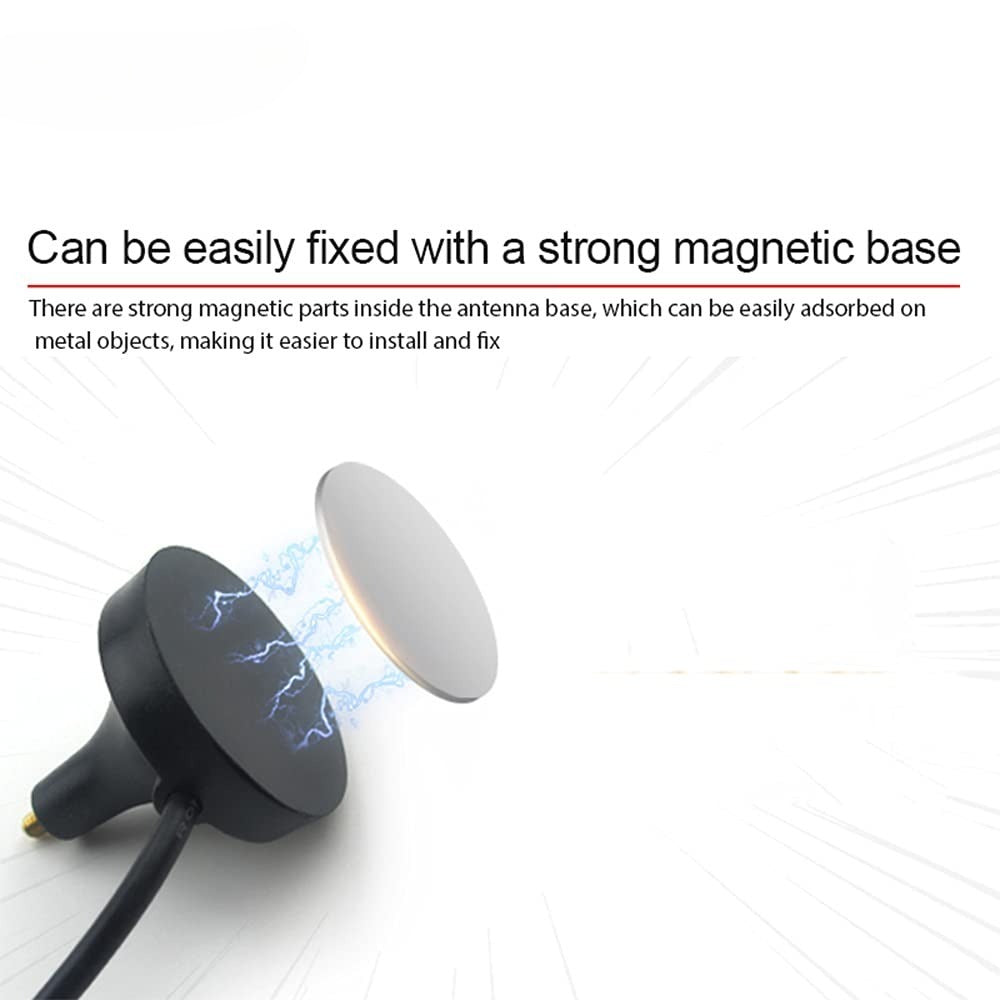

Strong Magnetic Base
Equipped with a powerful magnetic base, the antenna can be easily and securely attached to any metal surface, such as outdoor distribution boxes or vehicle roofs, without drilling.
High-Quality RG174 Feeder
The 1.5-meter low-loss RG174 cable provides flexibility in placement, allowing the antenna to be positioned for optimal signal line-of-sight.
Professional Test Report
Verified Performance: Measured VSWR maintains ≤ 1.5 across all 4G LTE cellular bands, ensuring maximum power transfer.
Ideal Applications
Industrial Automation
Signal enhancement for 4G routers, DTUs, and intelligent control cabinets.
Security & Monitoring
Reliable data links for wireless security cameras and alarm systems.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Can I use this for 5G modules?
A: It is optimized for 4G LTE (700-2700MHz). While it covers some sub-6GHz bands, for dedicated 5G performance, we recommend Ebyte's 5G-specific series.
Q: Is the cable length customizable?
A: Yes, standard cable is 1.5m, but customization of length and connector type is available for bulk orders.
