TX4G-JZLW-15 5dBi High Gain 4G LTE Cabinet Antenna
TX4G-JZLW-15 5dBi High Gain 4G LTE Cabinet Antenna
10000 in stock
Couldn't load pickup availability
SKU:tx4g-jzlw-15
Product Overview

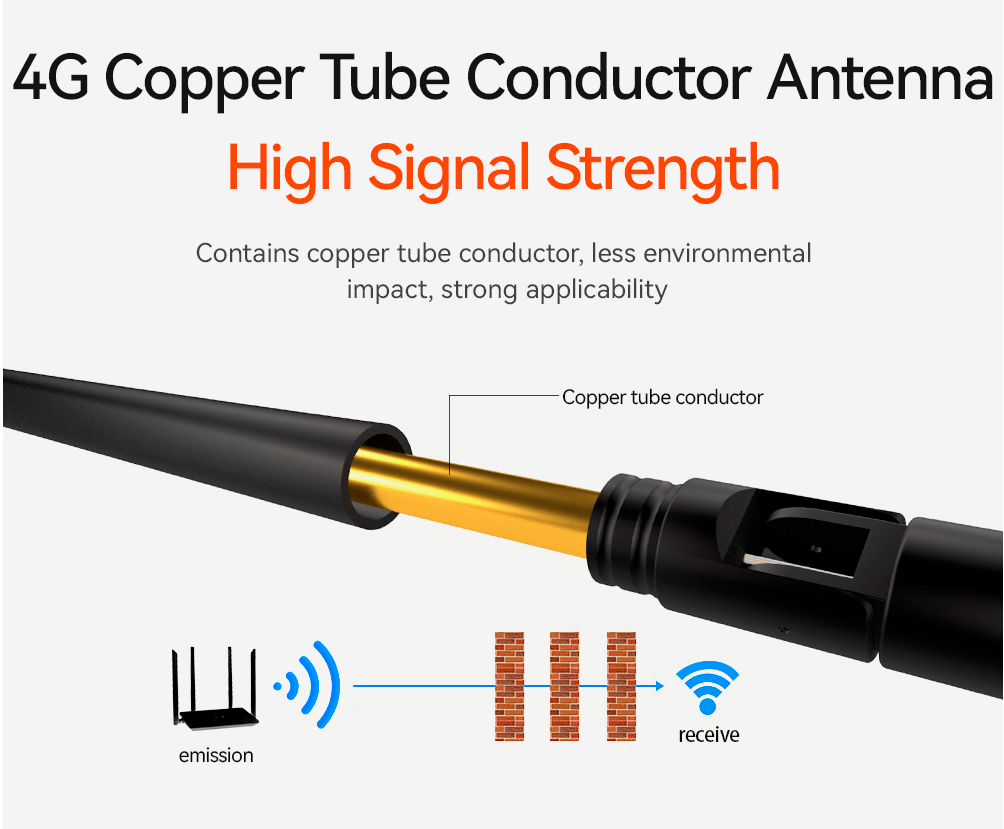

The TX4G-JZLW-15 is a high-performance 4G LTE rubber stick cabinet antenna designed for robust wireless connectivity. Featuring a 5.0 dBi peak gain and an integrated structure, it is specifically optimized for equipment cabinets and outdoor terminals. Equipped with a 150mm feeder line and an IPEX-1 interface, it ensures stable signal transmission for complex industrial IoT and telecommunication environments.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 800~960 MHz / 1710~2700 MHz (4G LTE) |
| Peak Gain | 5.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | IPEX-1 (IPX) |
| Feeder Length | 150mm (Customizable) |
| Radiation / Polarization | Omnidirectional / Vertical |
| Antenna Size | 165mm (Height) × Φ12.5mm (Diameter) |
| Operating Temp | -40℃ ～ +85℃ |
Product Details

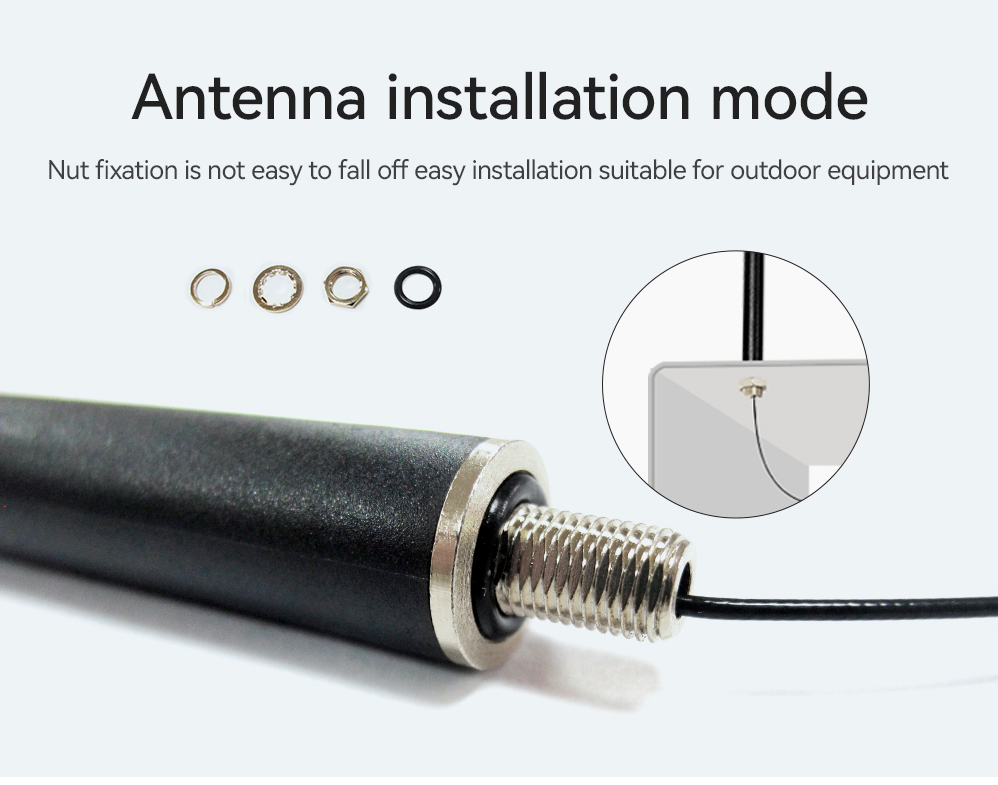

Cabinet-Integrated Design
Specifically engineered for control cabinets and equipment enclosures, providing an elegant and efficient solution for external signal reception without compromising device aesthetics.
Premium IPEX-1 Connector
Utilizes high-quality IPEX-1 generation interface for secure, low-loss connections to internal 4G/LTE modules and circuit boards.
Professional Test Report
Verified Performance: VSWR measured at ≤ 1.5 across all primary 4G frequency bands for maximum efficiency.
Ideal Applications
Industrial Cabinets
Perfect for smart control cabinets, logistics fleet management, and security monitoring hubs.
Outdoor Terminals
Suitable for hotel catering systems, construction site networking, and smart city infrastructure.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Does the antenna frequency need to match the device?
A: Yes, the antenna frequency must match your wireless device (4G LTE) for optimal communication effects.
Q: What affects the communication distance?
A: Obstacles, metal enclosures, and sea water absorption can reduce signal. It is recommended to increase installation height for better performance.
