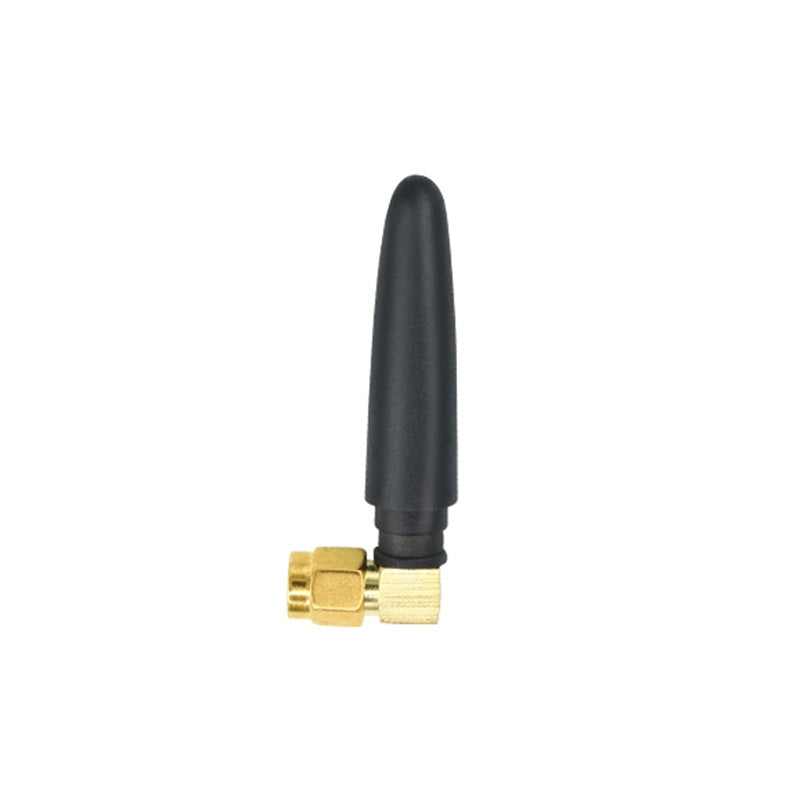

TX4G-JZ-5 Compact 4G LTE 2.5dBi Omnidirectional Antenna
TX4G-JZ-5 Compact 4G LTE 2.5dBi Omnidirectional Antenna
10000 in stock
Couldn't load pickup availability
SKU:tx4g-jz-5
Product Overview
The TX4G-JZ-5 is a professional-grade 4G LTE omnidirectional straight rod antenna, meticulously engineered for compact wireless terminals. Featuring a 2.5 dBi peak gain and a highly integrated structure, it offers stable cellular connectivity across the full 4G frequency spectrum. Encased in durable, flexible TPE material with a standard SMA-J interface, it is an ideal choice for IoT gateways and industrial modules where space-efficiency is critical.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 700 - 2700 MHz (4G LTE Full Band) |
| Peak Gain | 2.5 dBi |
| VSWR | ≤ 2.0 |
| Connector Type | SMA-J (SMA Male) |
| Radome Material | TPE (Flexible & Anti-aging) |
| Antenna Size | 52mm (Length) × 10mm (Diameter) |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
Product Details
Ultra-Compact Straight Design
With a total length of only 52mm, the TX4G-JZ-5 is designed for portability and minimal footprint, making it perfect for small-scale industrial controllers and handheld cellular devices.
Broadband Cellular Performance
Despite its small size, it supports the entire 700-2700MHz frequency range, ensuring compatibility with global 4G network operators and multiple cellular standards.
Professional Test Report
Verified with Agilent E5071C: Measured VSWR maintains ≤ 2.0 across all 4G LTE bands.
Ideal Applications
Industrial Data Hubs
Cellular DTUs, M2M communications, and industrial router terminals.
Smart Energy
Ideal for embedded wireless communication in smart electric and gas meters.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this antenna tiltable or rotatable?
A: No, the TX4G-JZ-5 is a fixed straight-rod antenna designed for structural simplicity and reliability.
Q: Can it be used with 2.4GHz Wi-Fi modules?
A: While it covers the 2400-2500MHz range, it is primarily optimized for 4G LTE. For best Wi-Fi performance, we recommend using a dedicated 2.4GHz antenna.
