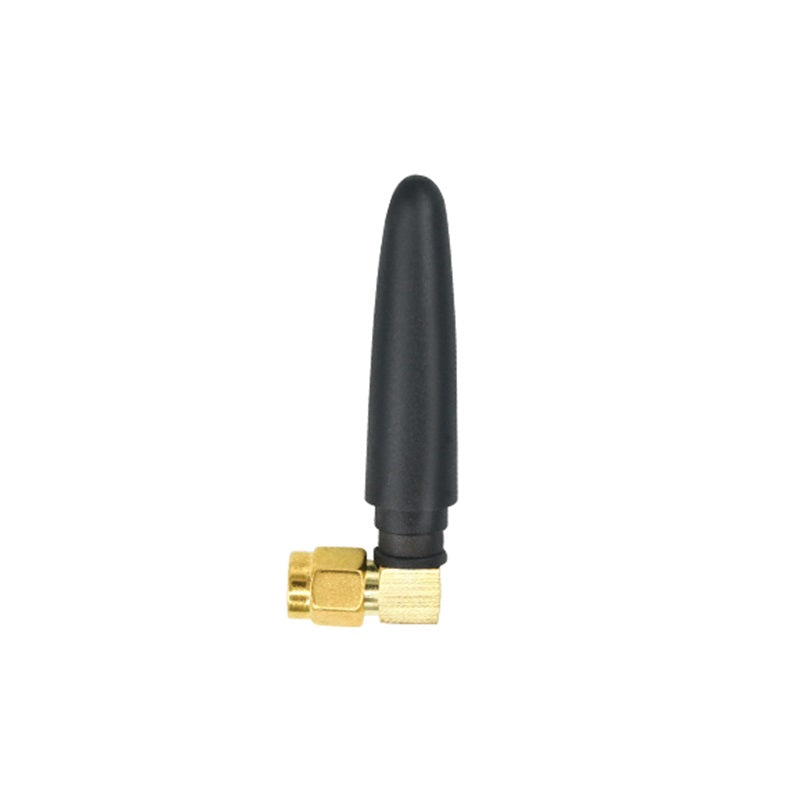

TX4G-JW-5 2.5dBi 4G LTE Right-Angle Omnidirectional Antenna
TX4G-JW-5 2.5dBi 4G LTE Right-Angle Omnidirectional Antenna
10000 in stock
Couldn't load pickup availability
SKU:tx4g-jw-5
Product Overview
The TX4G-JW-5 is a professional-grade 4G LTE omnidirectional elbow antenna, meticulously engineered for compact wireless devices. Featuring a 2.5 dBi peak gain and a space-saving right-angle design, it ensures stable signal reception across 4G LTE frequency bands. Encased in durable TPE material with a standard SMA-J interface, it is the perfect choice for industrial IoT terminals, wireless modules, and smart data hubs where space is at a premium.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 700 - 2700 MHz (4G LTE Full Band) |
| Peak Gain | 2.5 dBi |
| VSWR | ≤ 2.0 |

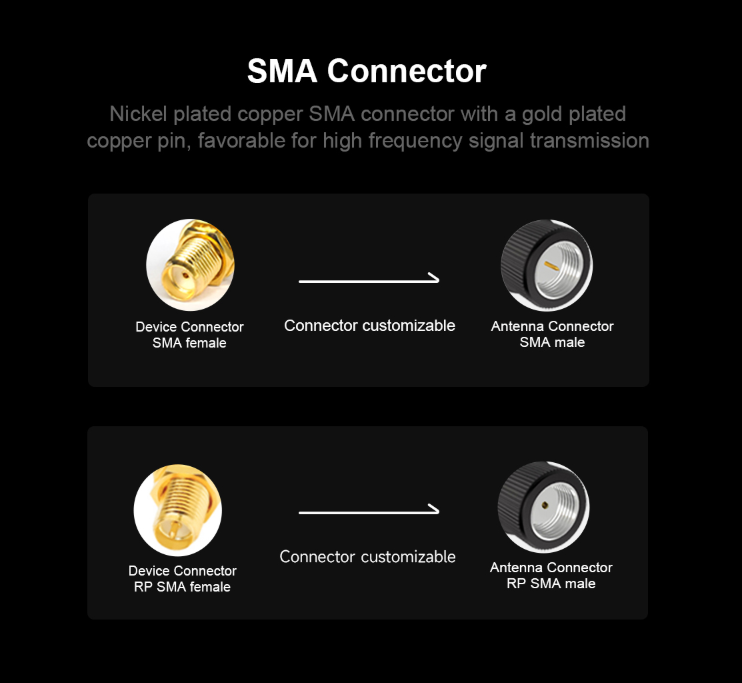

| Connector Type | SMA-J (SMA Male) |
| Radome Material | TPE (Flexible & Durable) |
| Antenna Size | 50mm (Height) × 10mm (Diameter) |
| Impedance | 50 Ω |
| Polarization | Vertical |
Product Details
Right-Angle (Elbow) Design
The 90-degree elbow structure allows for tight installation against the device chassis, significantly reducing the footprint and preventing accidental breakage in compact industrial environments.
Broadband 4G LTE Support
Covers the full cellular spectrum from 700MHz to 2700MHz, ensuring high compatibility with global 4G network operators and cellular modules.
Professional Test Report
Verified with Agilent E5071C: Measured VSWR is ≤ 2.0 across the full 4G frequency range.
Ideal Applications
Cellular IoT Terminals
Ideal for DTUs, handheld industrial devices, and smart vending machines.
Smart Metering
Perfect for embedded 4G communication in electric, water, and gas meters.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this antenna adjustable or fixed at 90 degrees?
A: The TX4G-JW-5 is a fixed 90-degree elbow antenna, providing maximum stability in that configuration.
Q: Can I use this for 5G applications?
A: It covers up to 2700MHz, which includes some Sub-6GHz bands, but it is primarily optimized for 4G LTE frequencies.
