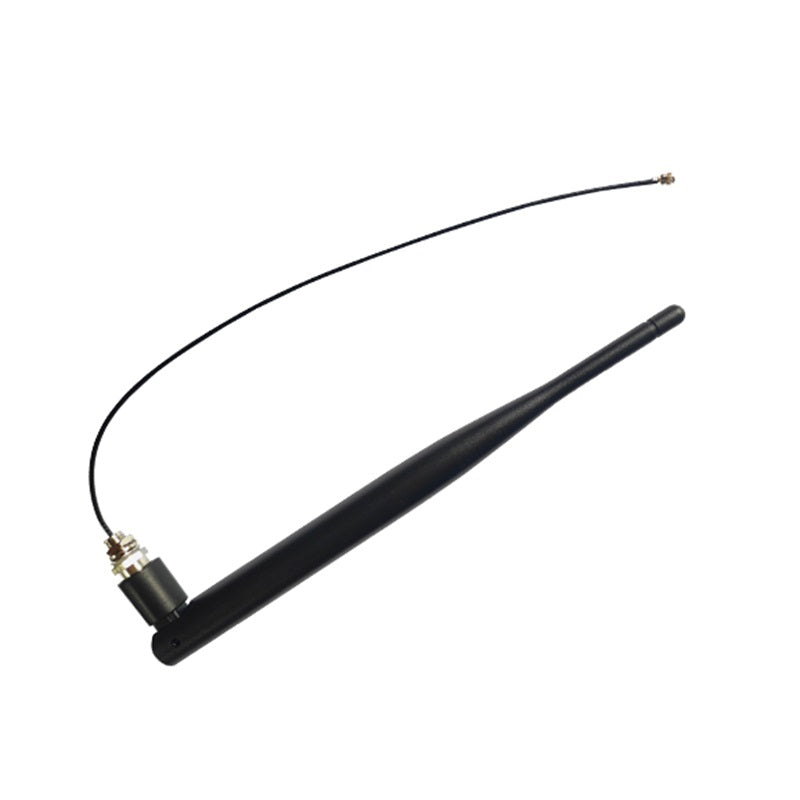

TX4G-JKS-IPX20 5dBi High-Gain 4G LTE IPX/U.FL Antenna
TX4G-JKS-IPX20 5dBi High-Gain 4G LTE IPX/U.FL Antenna
10000 in stock
Couldn't load pickup availability
SKU:tx4g-jks-ipx20
Product Overview

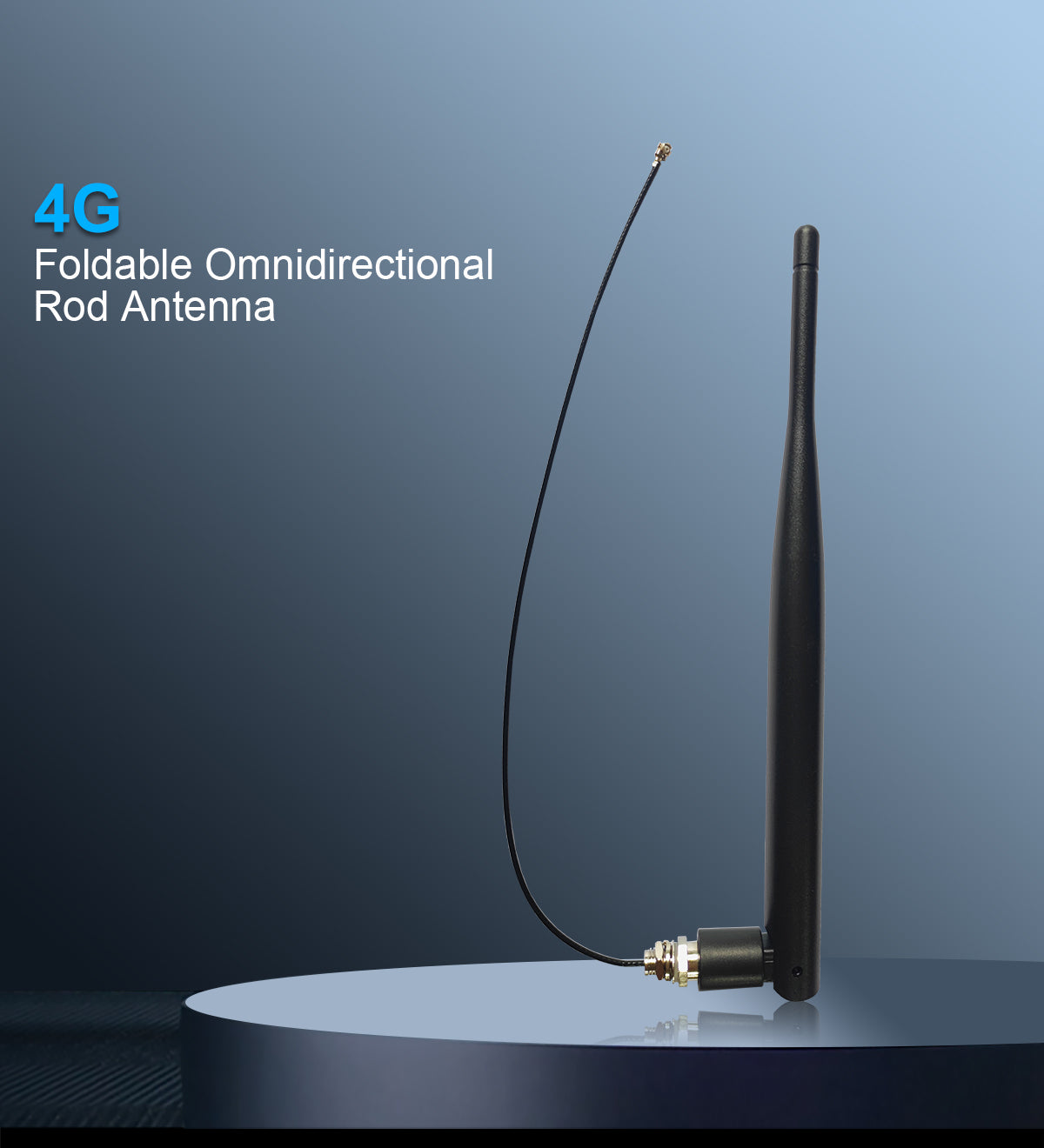

The TX4G-JKS-IPX20 is a professional-grade 4G LTE omnidirectional rubber duck antenna, meticulously engineered for high-performance cellular communication. It features a significant 5.0 dBi peak gain and comes integrated with an IPEX (U.FL) connector and a 20cm RF cable. Encased in durable, flexible TPE material, it is an ideal solution for internal wireless modules, embedded IoT gateways, and industrial LTE terminals requiring high stability and extended range.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 700 - 2700 MHz (4G LTE Full Band) |
| Peak Gain | 5.0 dBi |
| VSWR | ≤ 2.0 |
| Connector Type | IPEX Generation 1 (U.FL) |
| Cable Length | 200 mm (20 cm) |
| Radome Material | TPE (Flexible Rubber) |
| Total Height | 195 mm |
| Impedance | 50 Ω |
Product Details
Integrated IPEX Interconnect
Unlike standard SMA antennas, this model features a built-in IPEX connector, allowing for direct connection to PCBA modules without the need for additional pigtail adapters.

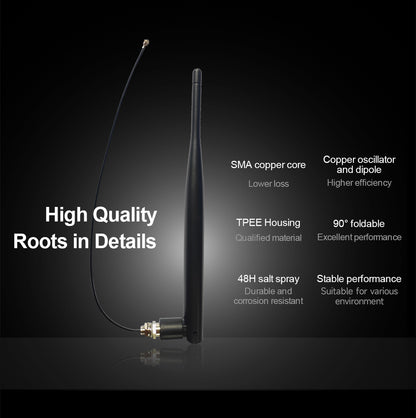

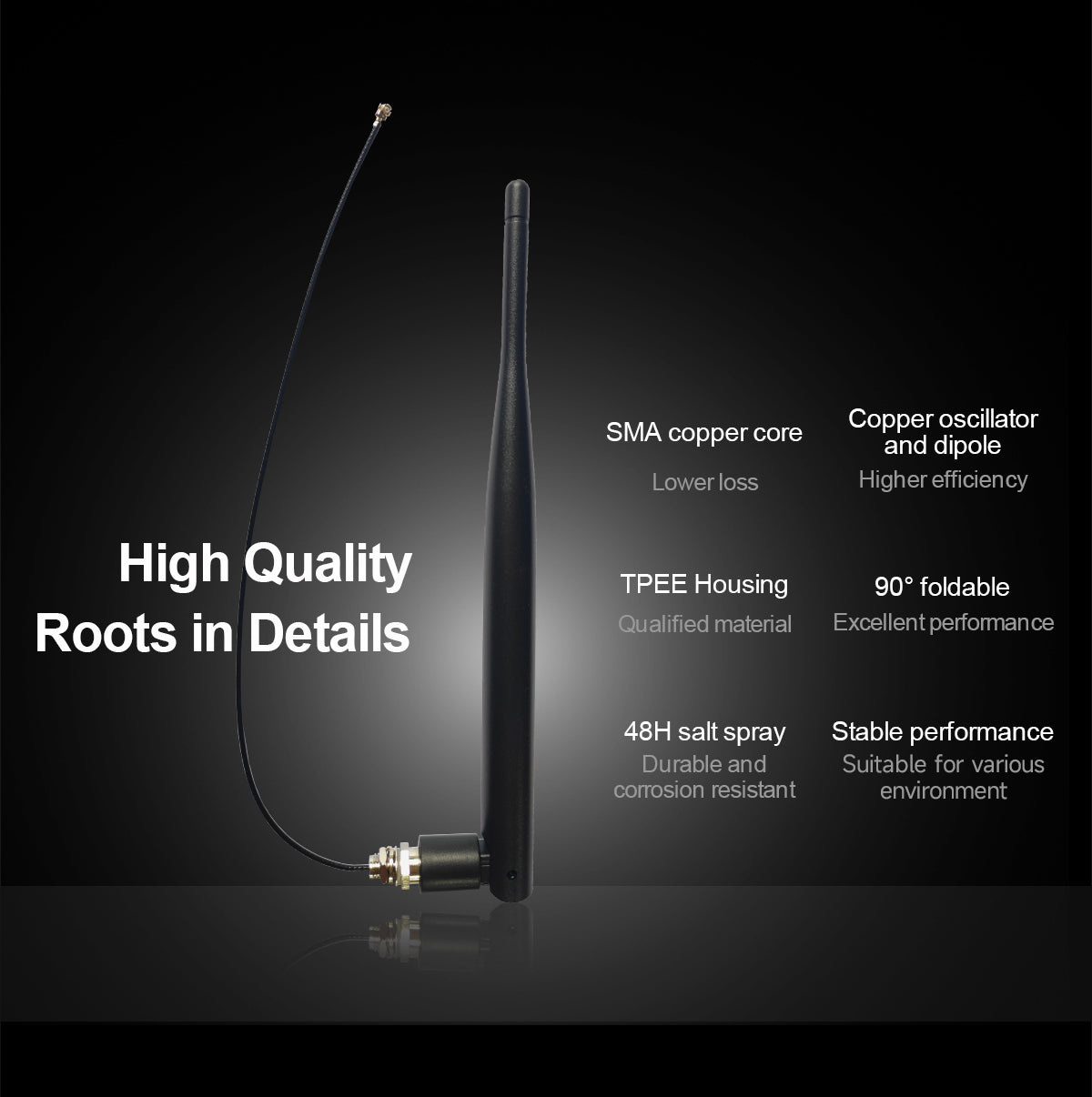

Flexible TPE Radome
The antenna radome is made of high-quality TPE material, providing excellent flexibility, anti-aging properties, and resistance to impact.
Professional Test Report

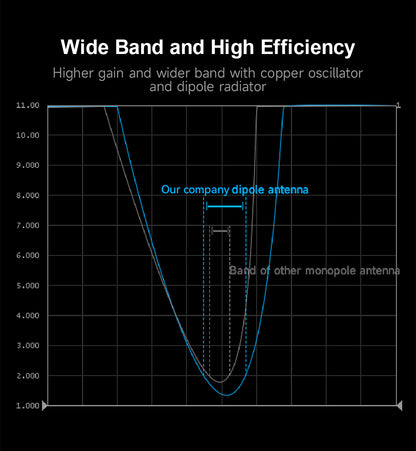

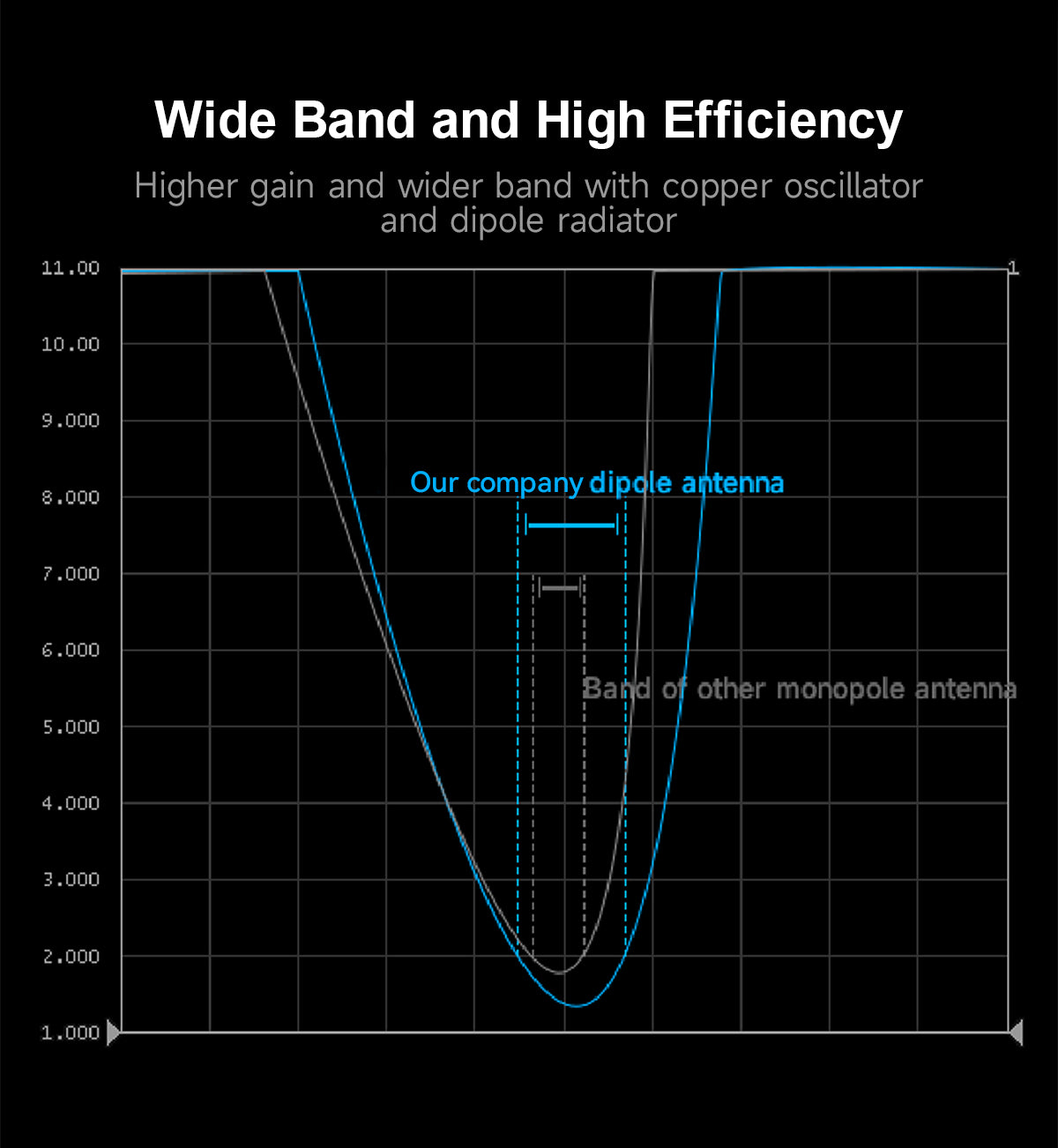

Verified with Agilent E5071C: VSWR is maintained ≤ 2.0 across all tested 4G bands.
Ideal Applications
Embedded LTE Solutions
Perfect for internal mounting in smart meters and compact industrial controllers.
Industrial Data Transmission
Reliable 4G connectivity for cellular DTUs and IoT sensor hubs.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Can this antenna be tilted?
A: This specific JKS model is a straight-type antenna, but the TPE material allows for some structural flexibility.
Q: Is the IPEX connector compatible with IPEX4 (MHF4)?
A: No, this uses a standard IPEX Generation 1 connector. Please verify your module's interface before purchasing.
