TX4G-JKS-20 4G LTE 5.0dBi High-Gain Omnidirectional Antenna
TX4G-JKS-20 4G LTE 5.0dBi High-Gain Omnidirectional Antenna
10000 in stock
Couldn't load pickup availability
SKU:tx4g-jks-20
Product Overview
The TX4G-JKS-20 is a professional-grade 4G LTE omnidirectional rod antenna, engineered for high-performance cellular communication. Featuring a 5.0 dBi peak gain and a precision-tuned radiator, it significantly enhances signal range and penetration across all mainstream 4G frequency bands. Encased in durable, weather-resistant TPEE material with a standard SMA-J interface, it ensures reliable performance for industrial IoT terminals, wireless gateways, and smart energy monitoring systems.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 700 - 2700 MHz (4G LTE Full Band) |
| Peak Gain | 5.0 dBi |
| VSWR | ≤ 2.0 |
| Connector Type | SMA-J (SMA Male) |
| Radome Material | TPEE (Weather-resistant) |
| Antenna Height | 195 mm |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
Product Details
Broadband 4G LTE Compatibility
Designed to cover the full spectrum from 700MHz to 2700MHz, ensuring high compatibility with global 4G network operators and modules.

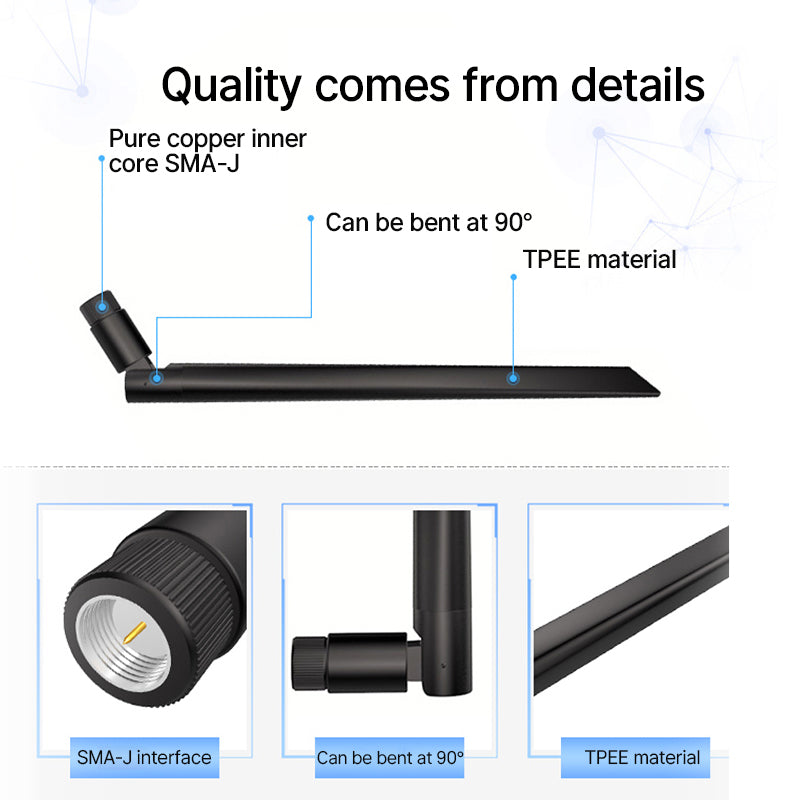

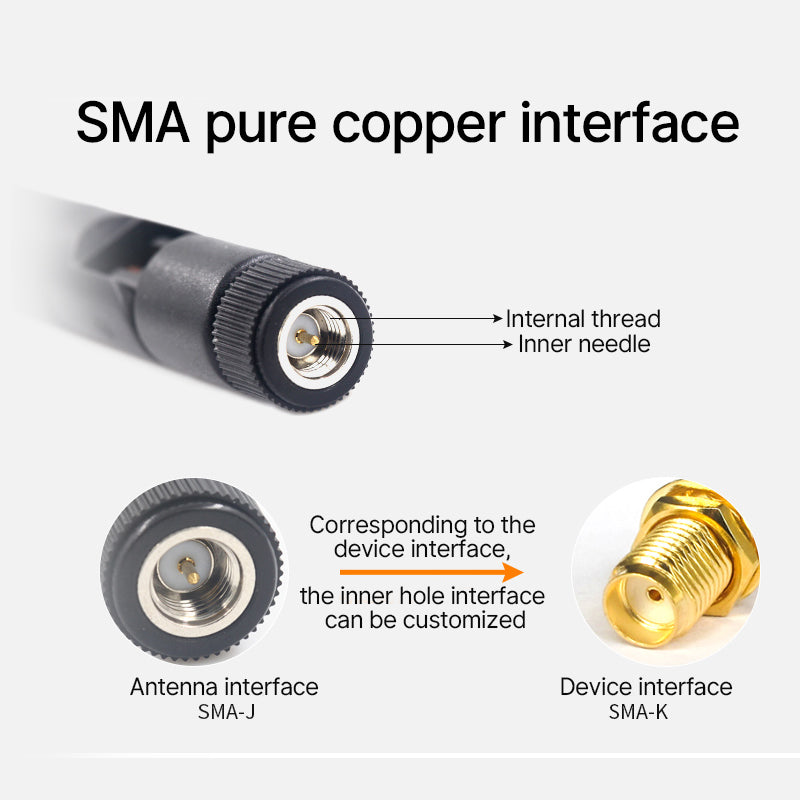

Industrial Grade SMA-J Interface
Features a pure copper nickel-plated SMA male connector with gold-plated pins for maximum durability and low-loss signal transmission.
Professional Test Report
Verified with Agilent E5071C: Measured VSWR maintains ≤ 2.0 across all tested cellular bands.
Ideal Applications
Cellular Gateways
Enhances connectivity for industrial 4G routers, DTUs, and remote data hubs.
Remote Monitoring
Ideal for smart metering, environmental sensors, and cellular security cameras.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this antenna compatible with 5G modules?
A: It covers up to 2700MHz, supporting major 4G LTE bands and some Sub-6GHz 5G bands, but it is optimized primarily for 4G LTE.
Q: Can it be used outdoors?
A: The TPEE material is weather-resistant and anti-aging, making it suitable for protected outdoor or high-humidity environments.
