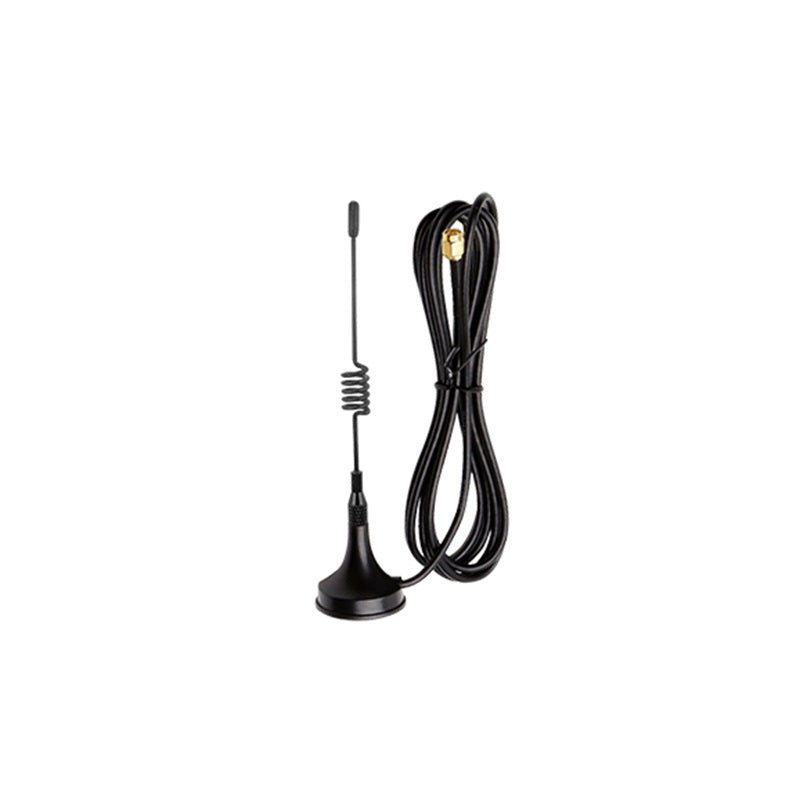

Cdsenet TX490-XPL-100 490MHz 3.5dBi Sucker Antenna with 1m Cable
Cdsenet TX490-XPL-100 490MHz 3.5dBi Sucker Antenna with 1m Cable
10000 in stock
Couldn't load pickup availability
SKU:tx490-xpl-100
Product Overview
The TX490-XPL-100 is a high-performance 490MHz omnidirectional suction cup (sucker) antenna, specifically engineered for long-range Sub-GHz wireless communication. Featuring a 3.5 dBi peak gain and a magnetic base for stable mounting, it significantly improves signal reception and transmission reliability. Its compact design and 1-meter extension cable make it an ideal solution for outdoor deployments and signal amplification in complex environments.

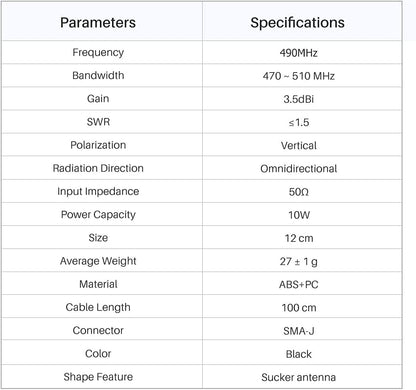

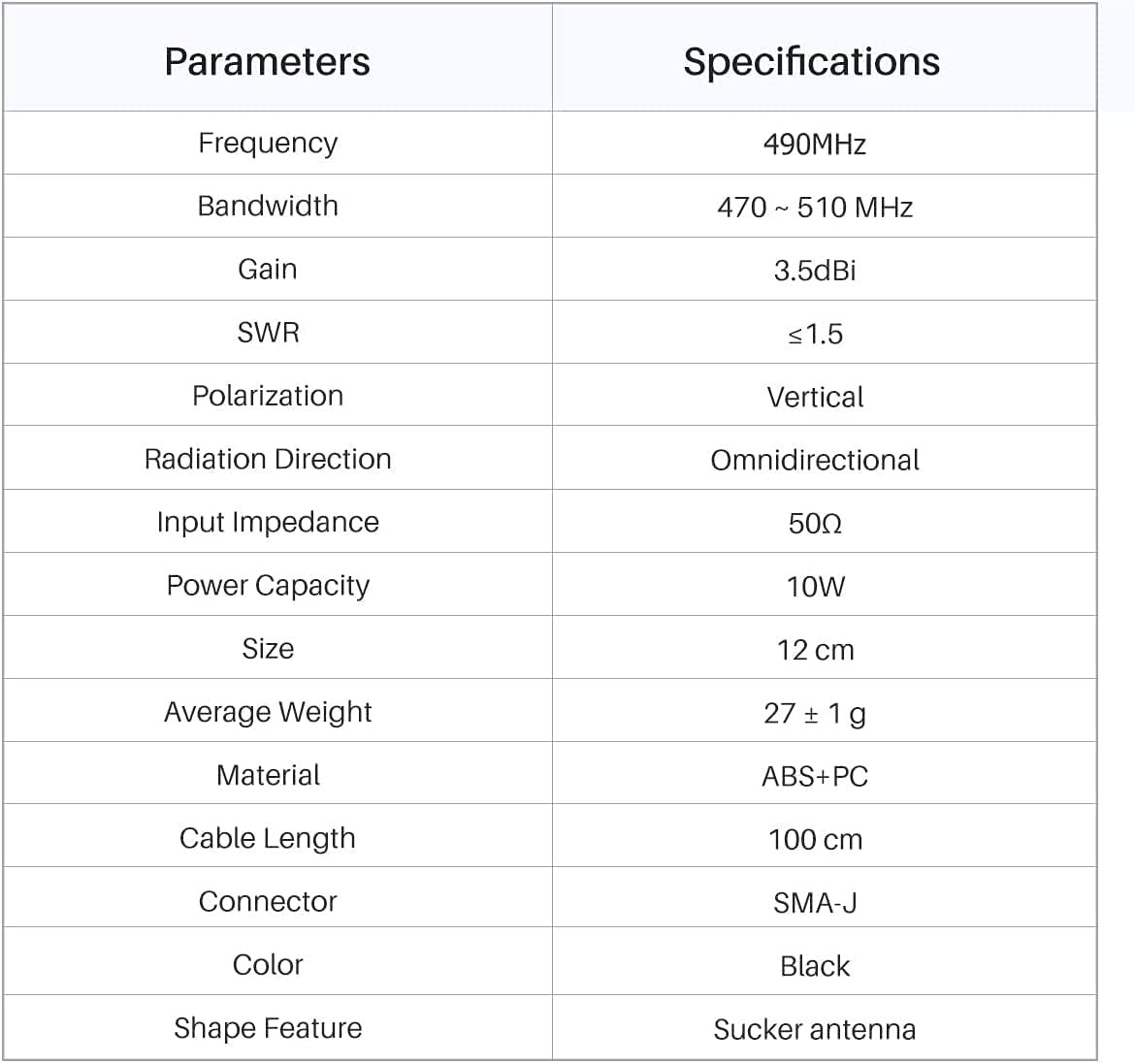

Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 470 - 510 MHz (Center: 490MHz) |
| Peak Gain | 3.5 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |

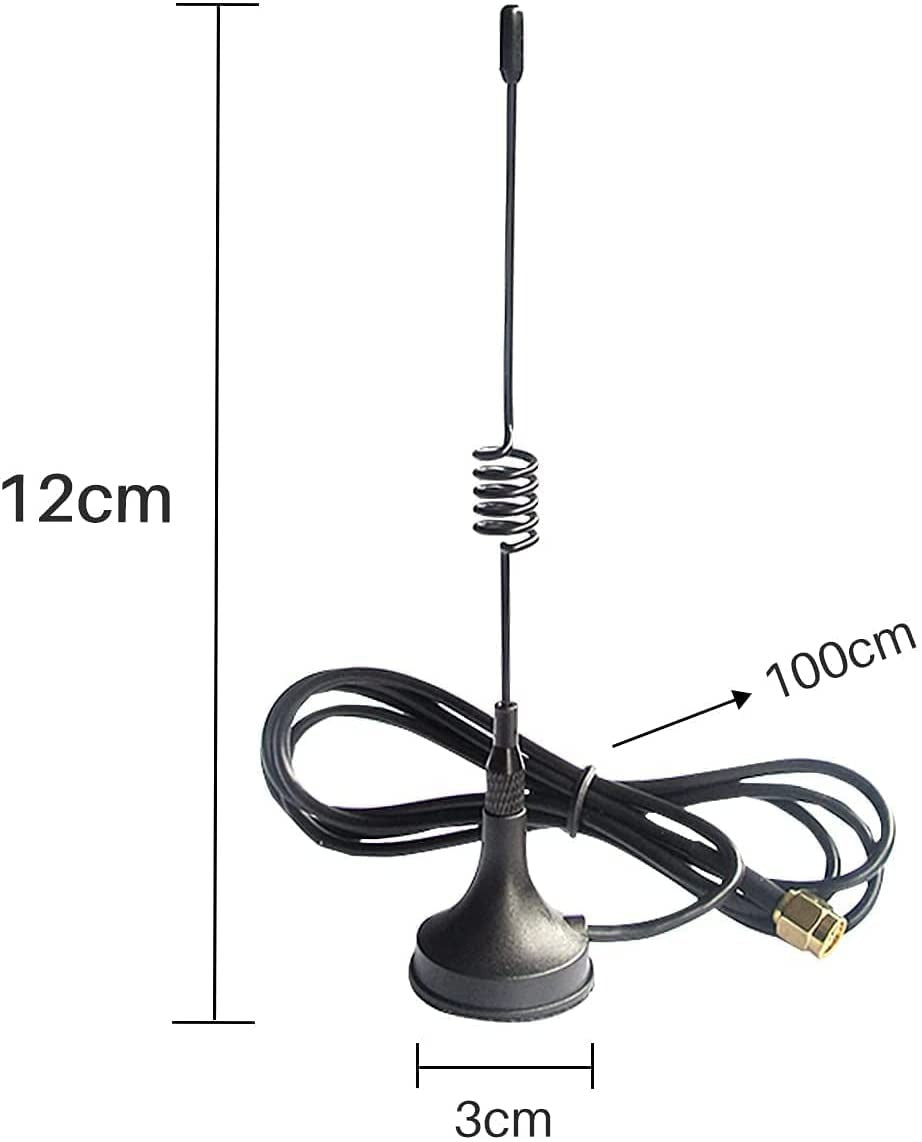

| Antenna Height | ~125 mm |
| Cable Length / Type | 100 cm / RG174 Coaxial |
| Impedance | 50 Ω |
| Mounting Method | Magnetic Base / Suction Cup |
Product Details
Magnetic Sucker Base
Equipped with a strong magnetic base, the antenna can be easily attached to metallic surfaces (such as outdoor cabinets or vehicle roofs) to achieve superior height and clear line-of-sight for signals.
Standard SMA-J Interface
The universal SMA male connector with gold-plated pins ensures low signal loss and high durability, making it compatible with most wireless communication modules.
Professional Test Report
Verified with Agilent E5071C: VSWR performance is highly optimized at ≤ 1.5 within the 490MHz band.
Ideal Applications
Industrial Remote Control
Ideal for wireless monitoring systems in factories and industrial sites.
Smart Grid & Metering
Perfect for wireless water/gas meter reading data concentrators.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Can it be used on non-metallic surfaces?
A: While it will stay upright, suction cup antennas perform best when attached to a metal ground plane, which helps as a reflector for the signal.
Q: Is this antenna waterproof?
A: The antenna is designed for outdoor use; however, for long-term extreme weather exposure, it is recommended to protect the connector area.
