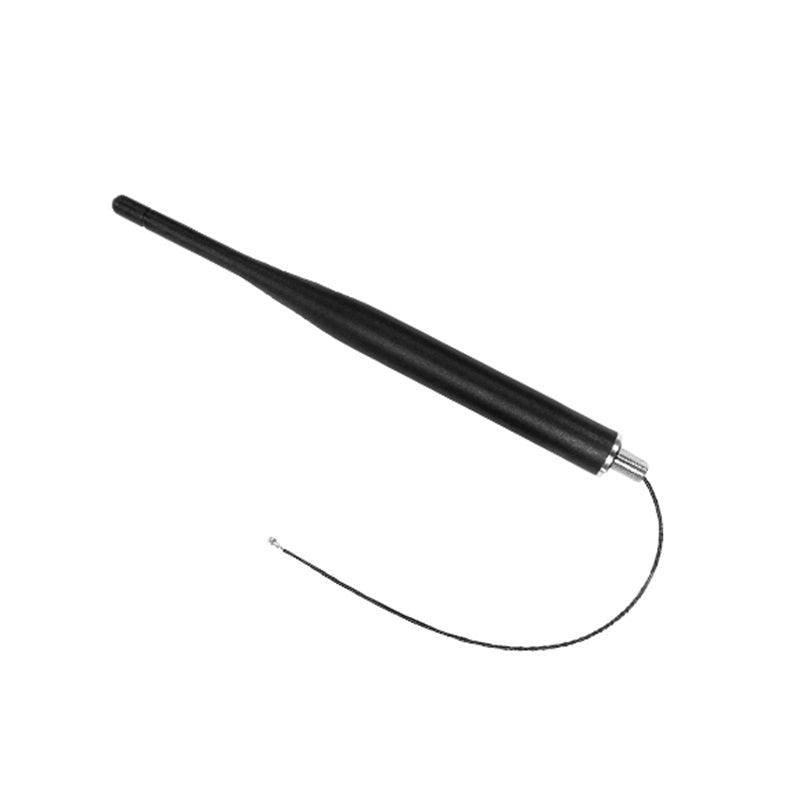

CDSENET TX490-JZLW-15 490Mhz Rubber Plastic Cabinet Antenna IPEX-1 Interface 3dBi Gain Omnidirectional LoRa Antenna
CDSENET TX490-JZLW-15 490Mhz Rubber Plastic Cabinet Antenna IPEX-1 Interface 3dBi Gain Omnidirectional LoRa Antenna
100 in stock
Couldn't load pickup availability
SKU:TX490-JZLW-15
Product Overview
The TX490-JZLW-15 is a high-performance 490MHz omnidirectional cabinet-mount antenna, specifically designed for Sub-GHz wireless communication. Featuring a 3.0 dBi peak gain and a ruggedized structure, it ensures stable signal coverage for LoRa and industrial IoT applications. Encased in durable, UV-resistant material with a standardized screw-mount base, it is ideal for secure installation on wireless control cabinets and outdoor distribution boxes.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 470 - 510 MHz (Center: 490MHz) |
| Peak Gain | 3.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |

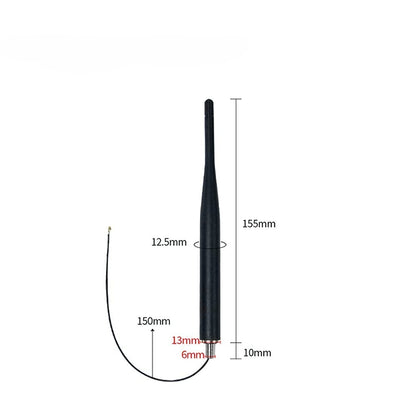

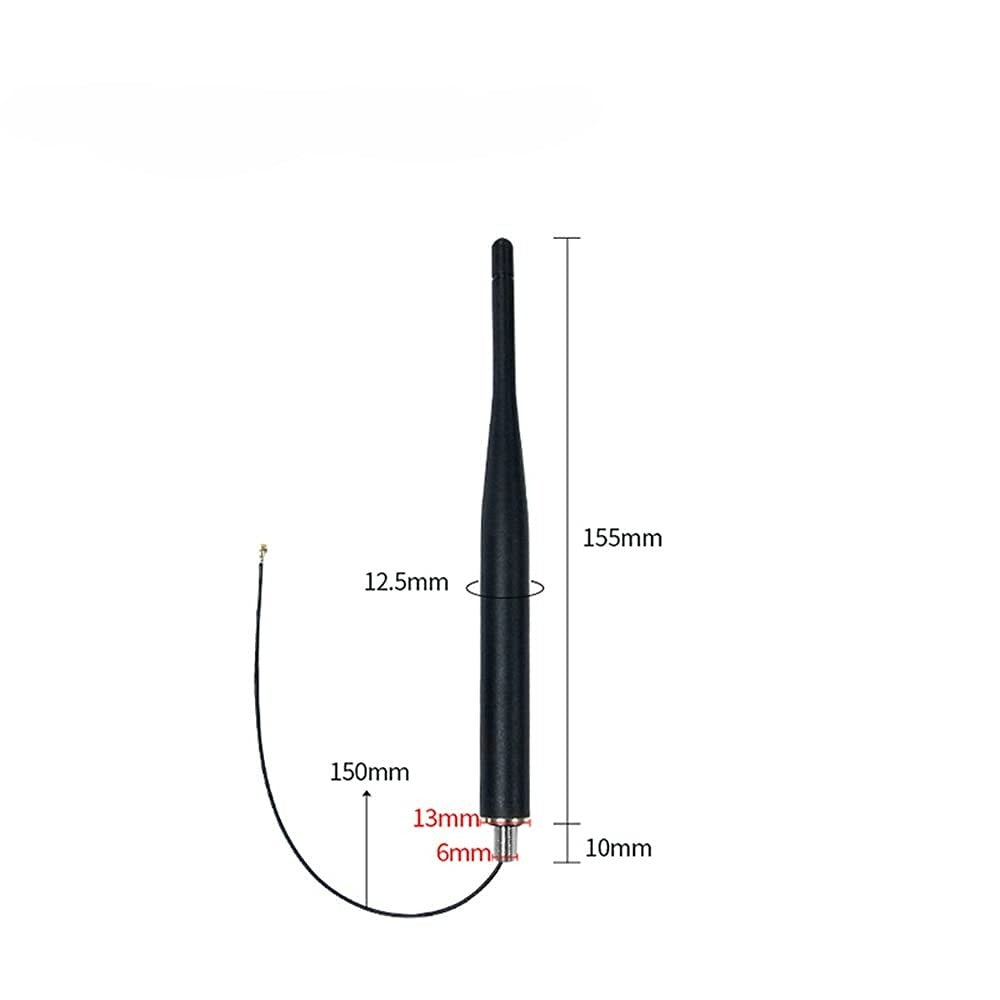

| Overall Height | 150 mm |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Radome Material | ABS / UV-Resistant Polycarbonate |
Product Details

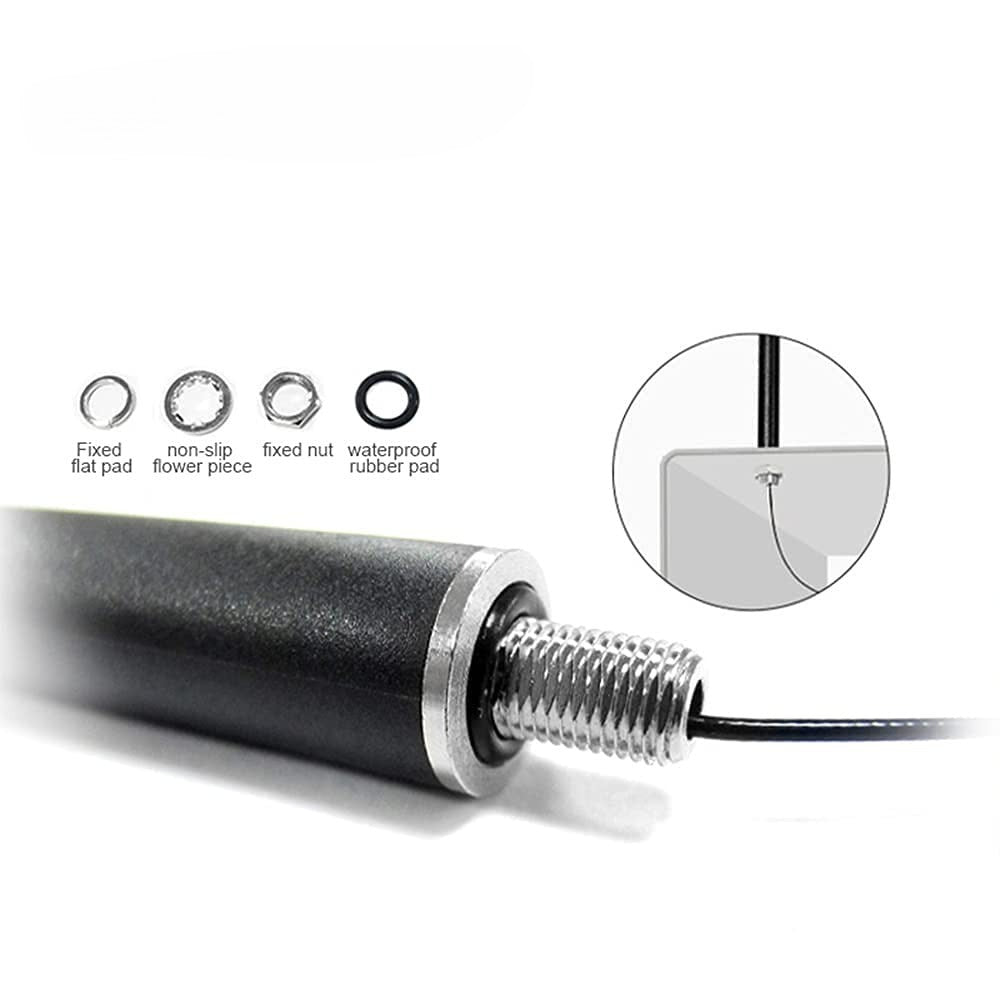

Cabinet-Mount Threaded Design
Designed with a threaded base for anti-theft and high-stability mounting. It can be easily secured through a hole on top of metal cabinets, providing a clean and professional look.

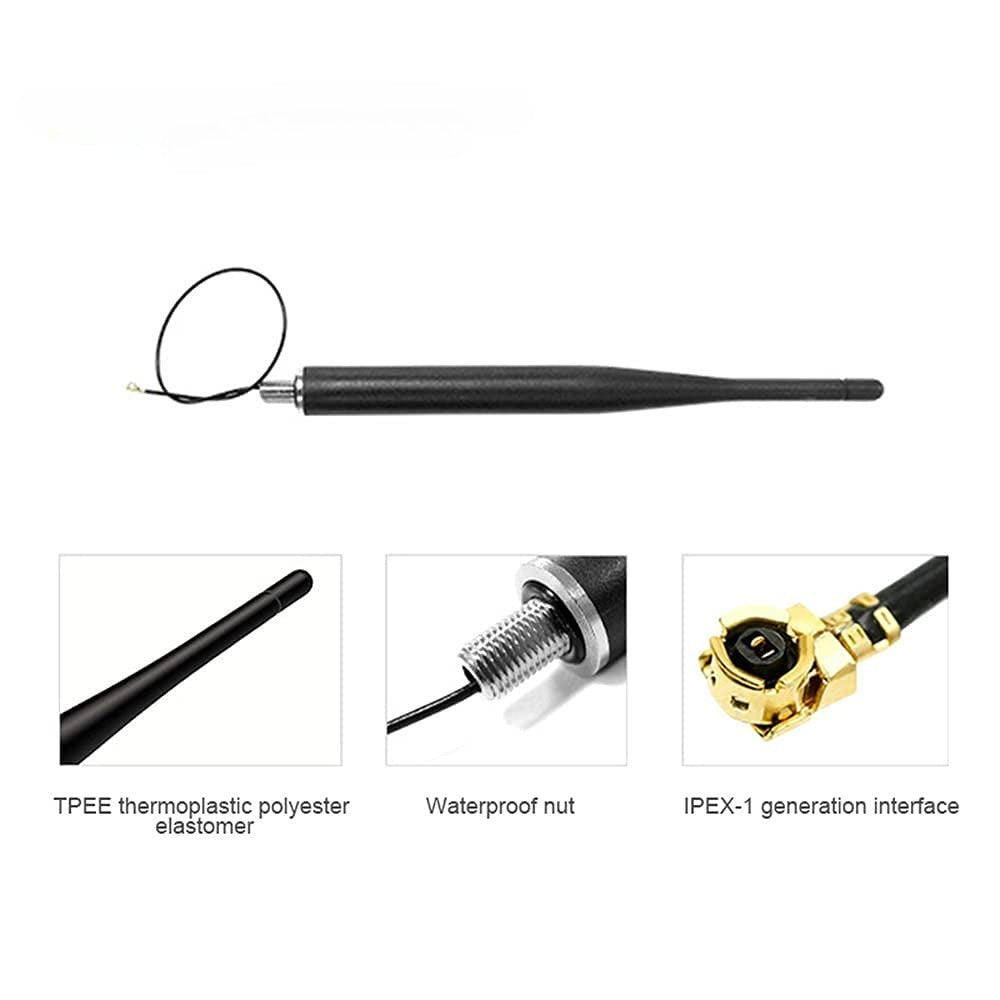

High-Performance SMA-J Connector
The pure copper SMA male connector with gold-plated pins ensures efficient high-frequency signal transmission and excellent corrosion resistance for long-term outdoor use.
Professional Test Report
Verified with Agilent E5071C: VSWR performance is highly optimized at ≤ 1.5 within the 490MHz band.
Ideal Applications
Smart Metering Cabinets
Provides reliable signal externalization for metallic water and electric meter enclosures.

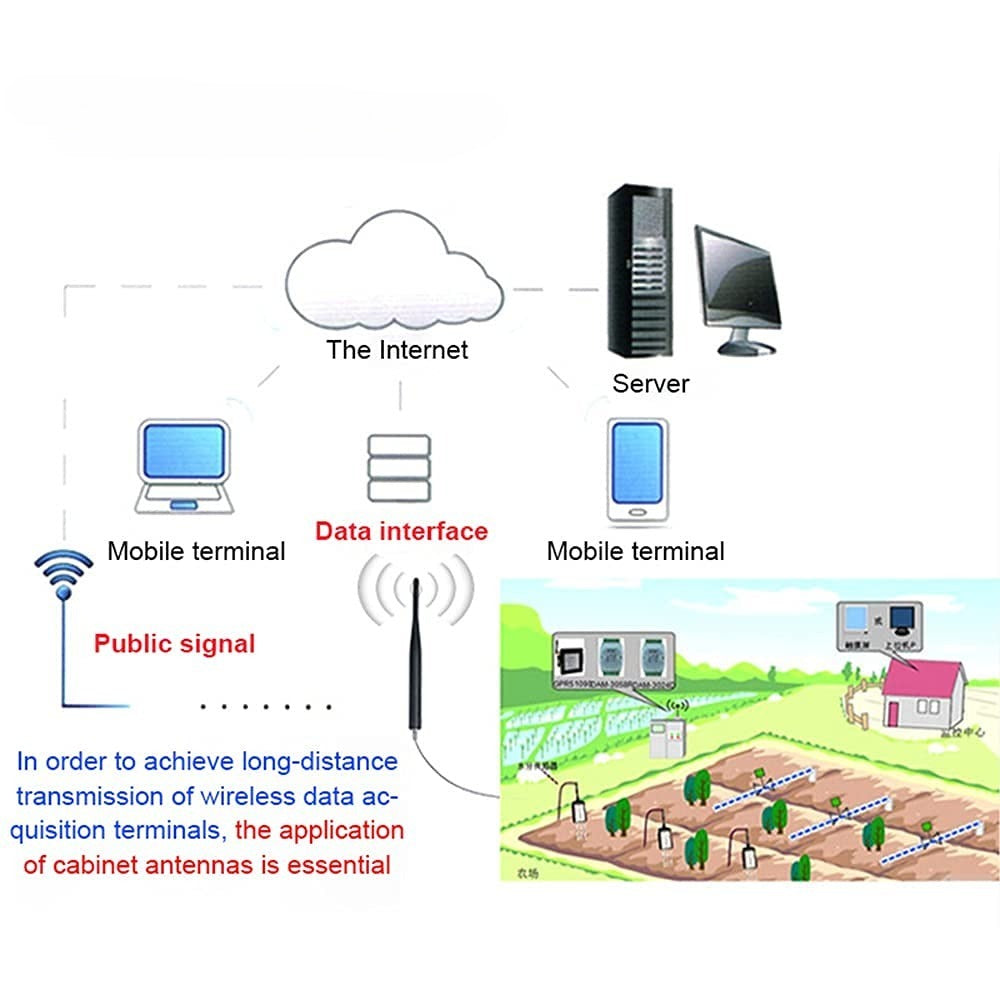

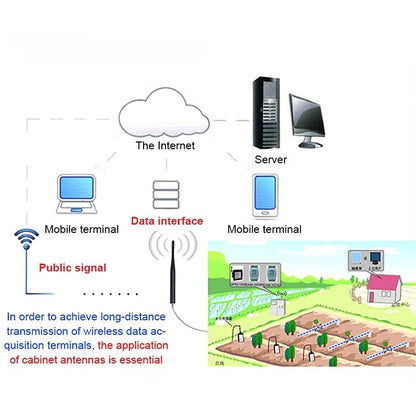

Industrial LoRa Gateways
Enhances range for cabinet-installed LoRaWAN gateways in factories and smart cities.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Can this antenna be mounted on a non-metallic surface?
A: Yes, it will work. However, for omnidirectional antennas of this type, a metal ground plane (like a cabinet top) often helps optimize the radiation pattern.
Q: Is it suitable for extreme outdoor weather?
A: The radome is weather-resistant, but we recommend applying waterproof tape or a rubber gasket around the base during installation for complete environmental sealing.
