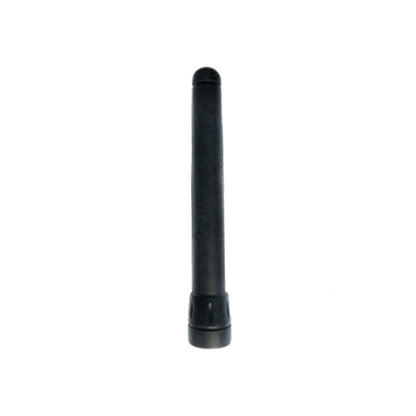

Cdsenet TX470-JZR-9 470MHz 2.5dBi Omnidirectional Elbow Antenna
Cdsenet TX470-JZR-9 470MHz 2.5dBi Omnidirectional Elbow Antenna
10000 in stock
Couldn't load pickup availability
SKU:tx470-jzr-9
Product Overview
The TX470-JZR-9 is a professional-grade 470MHz omnidirectional rubber rod antenna, featuring a flexible 90-degree elbow design. Meticulously engineered for high-stability wireless communication, it offers a 2.5 dBi peak gain and a precision-tuned radiator to enhance signal penetration in the 470MHz band. Encased in durable, weather-resistant materials, it is an ideal choice for compact industrial IoT devices and wireless data terminals.

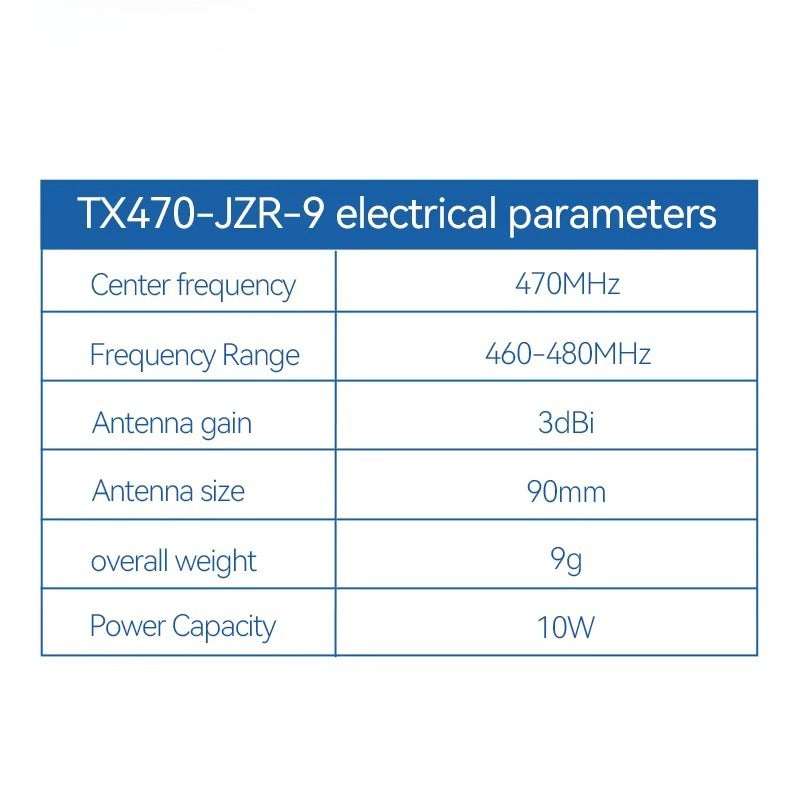

Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 430 - 510 MHz (Center: 470MHz) |
| Peak Gain | 2.5 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |

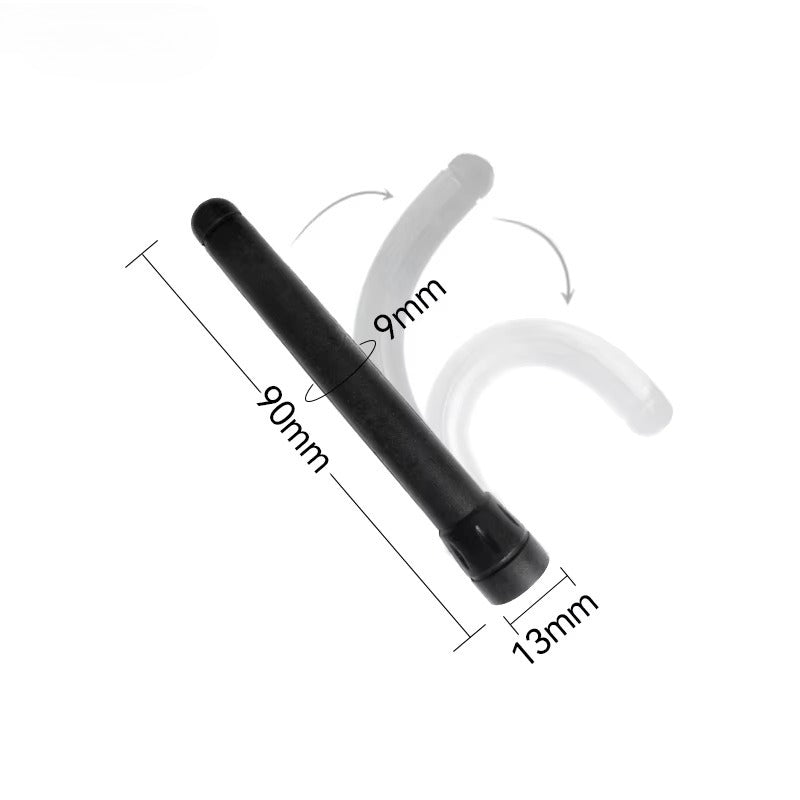

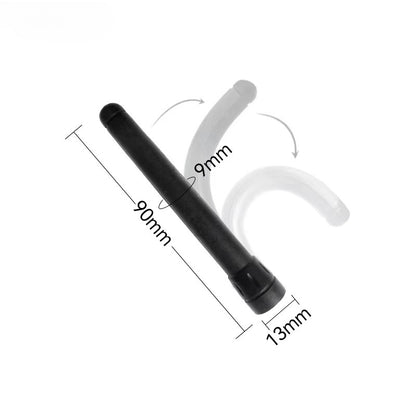

| Antenna Height | 90 mm |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
| Power Capacity | 10W |

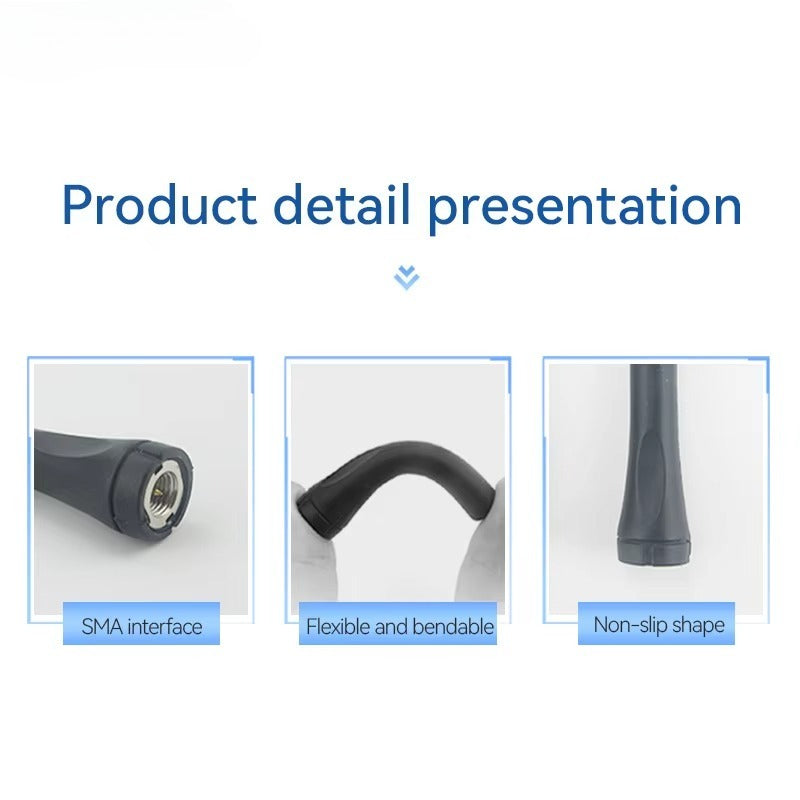

Product Details
90-Degree Elbow Connector
The unique right-angle design allows the antenna to be oriented vertically or horizontally, providing superior space-saving benefits for wall-mounted enclosures and compact wireless modules.
Standard SMA-J Interface
Features a gold-plated SMA Male connector for exceptional conductivity and anti-oxidation performance, ensuring stable high-frequency data transmission.
Professional Test Report
Verified with Agilent E5071C: This antenna maintains a stable VSWR of ≤ 1.5 at 470MHz, ensuring maximum transmission efficiency.
Ideal Applications
Industrial Remote Control
Reliable RF communication for industrial telemetry, automation controllers, and LoRa gateways.
Wireless Meter Reading
Ideal for smart water, gas, and electricity meters operating in the 470MHz frequency band.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this antenna suitable for 433MHz modules?
A: While it covers 430-510MHz, it is specifically tuned for 470MHz. For 433MHz applications, we recommend the TX433 series for peak performance.
Q: Can the elbow be adjusted to different angles?
A: The antenna has a fixed 90-degree elbow joint. It can be rotated around the SMA axis but the bend angle is fixed.
