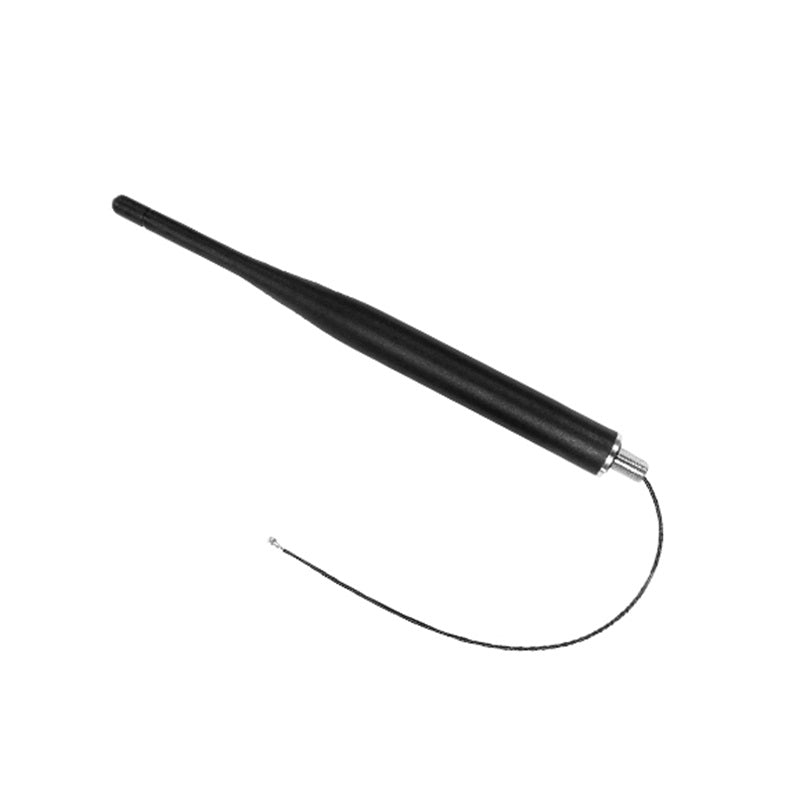

Cdsenet TX470-JZLW-15 470MHz 3.0dBi Flexible IP67 Whip Antenna
Cdsenet TX470-JZLW-15 470MHz 3.0dBi Flexible IP67 Whip Antenna
10000 in stock
Couldn't load pickup availability
SKU:tx470-jzlw-15
Product Overview
The TX470-JZLW-15 is a professional-grade 470MHz omnidirectional whip antenna, meticulously engineered for high-stability wireless communication. Featuring a 3.0 dBi peak gain and a precision-tuned radiator, it significantly enhances signal penetration. Encased in durable, flexible TPEE material with an IP67 waterproof rating, it ensures reliable performance for both industrial IoT terminals and outdoor smart metering environments.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 430 - 510 MHz (Center: 470MHz) |
| Peak Gain | 3.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |

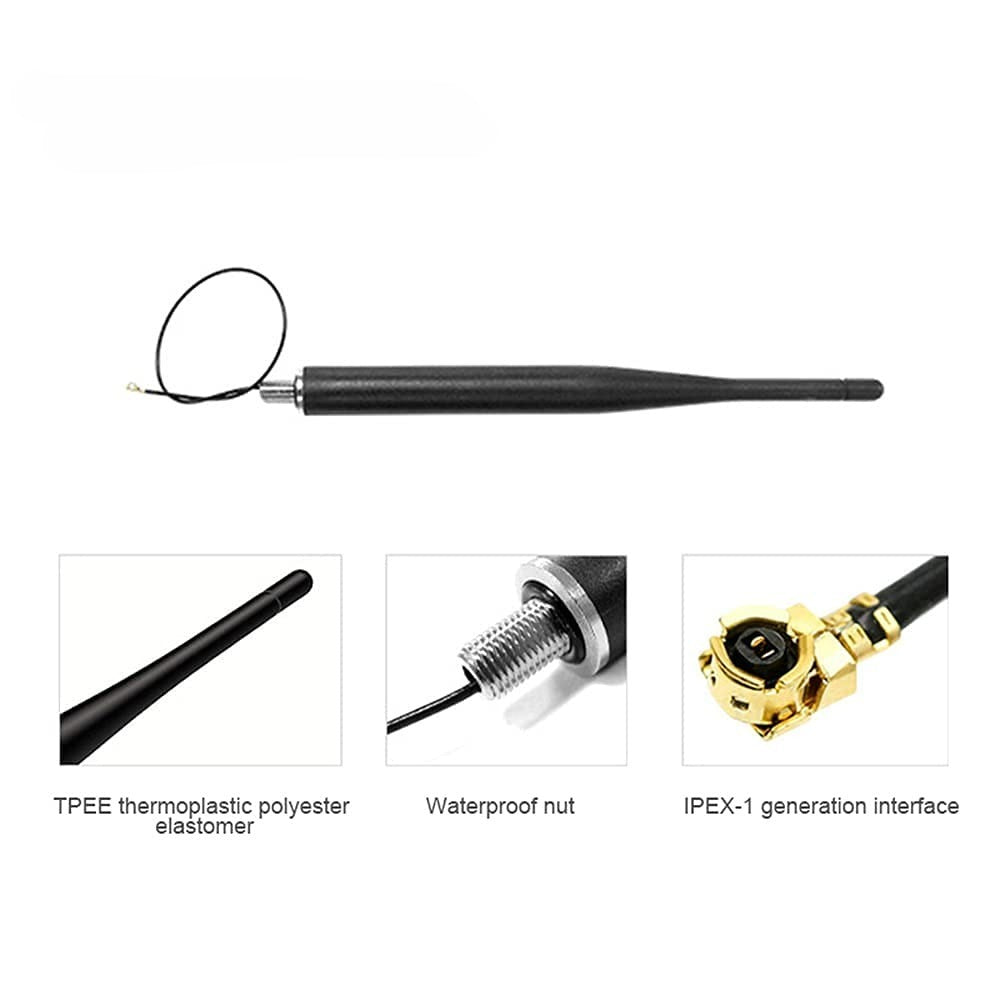

| Radome Material | TPEE (Flexible & Weather-resistant) |

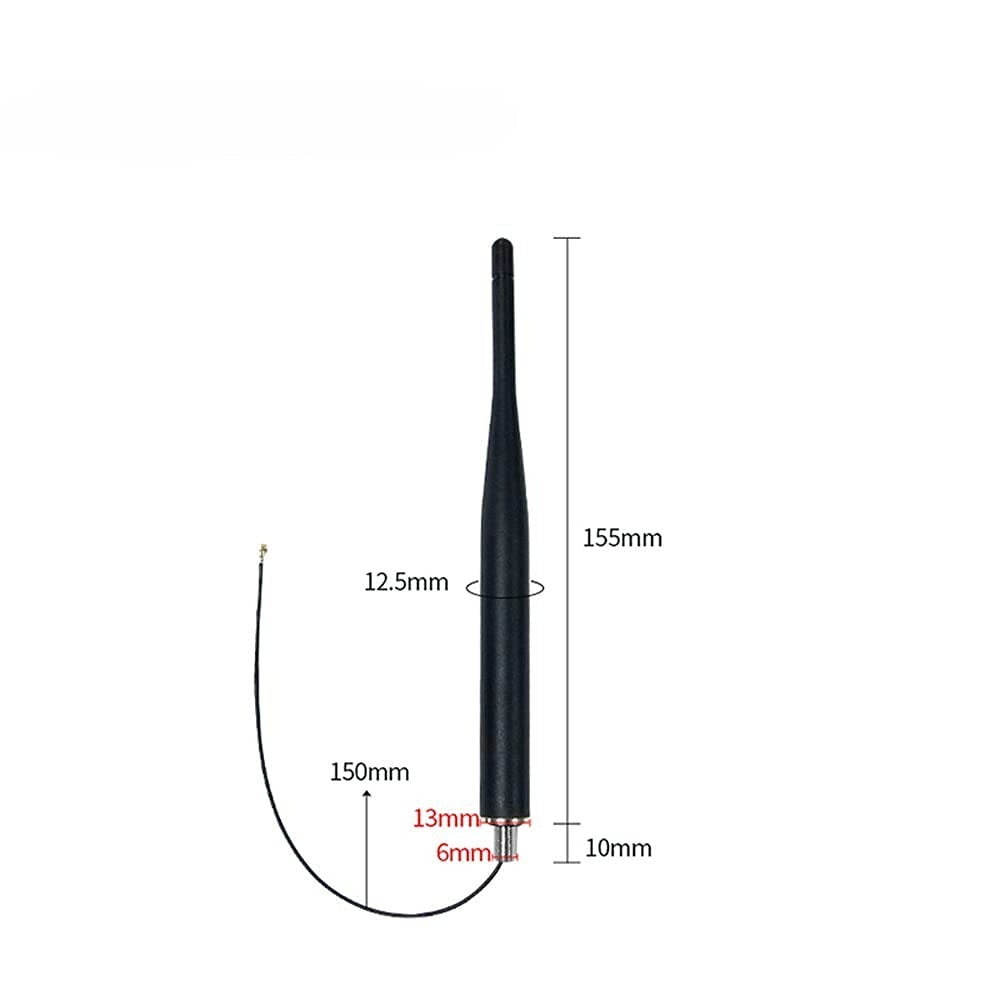

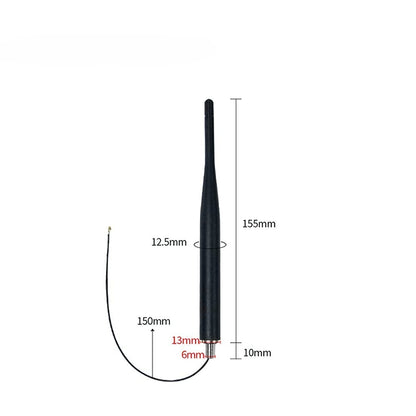

| Antenna Height | 165 mm |
| Impedance | 50 Ω |
| Waterproof Grade | IP67 |
Product Details
IP67 Waterproof & Dustproof
Equipped with a high-seal structural design, this antenna is rated IP67, making it suitable for harsh outdoor environments and resistant to heavy rain and dust.

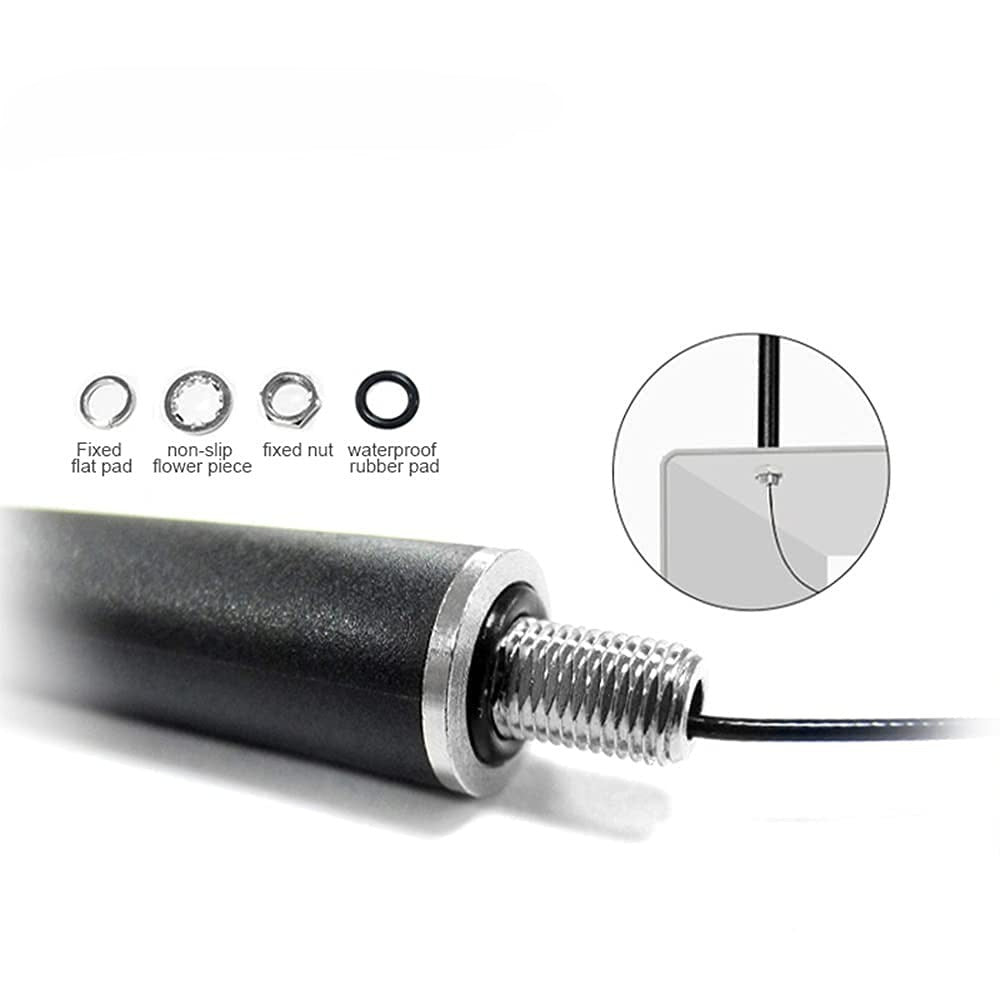

Standard SMA-J Interface
Precision nickel-plated copper with gold-plated pins ensures low signal loss and anti-oxidation for long-term industrial deployments.
Professional Test Report
Verified with Agilent E5071C: VSWR optimized at ≤ 1.5 across the 470MHz band.

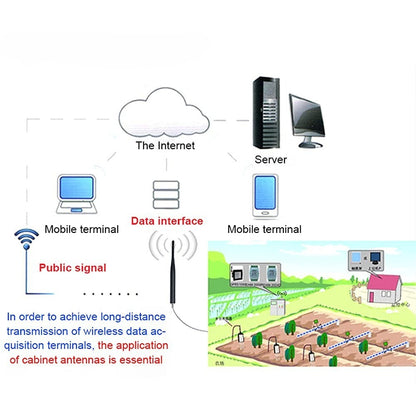

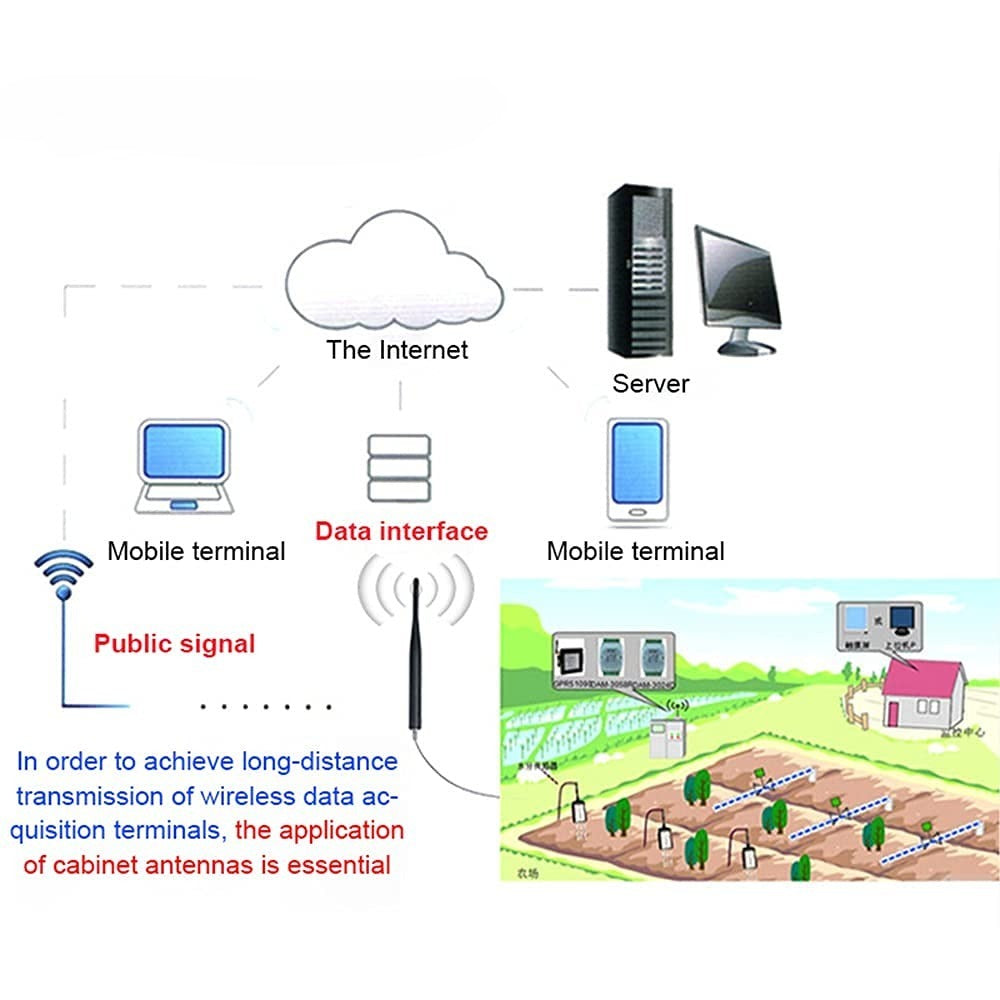

Ideal Applications
LoRa & Sub-GHz Solutions
Perfect for LoRa gateways and remote wireless data collection nodes.
Industrial Data Transmission
Reliable for oil & gas monitoring, smart agriculture, and smart meters.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this antenna suitable for outdoor use?
A: Yes, it is rated IP67 and made of weather-resistant TPEE, designed specifically for outdoor environments.
Q: Does it work with 433MHz modules?
A: It covers 430-510MHz, so it is compatible with 433MHz frequency modules with excellent performance.
