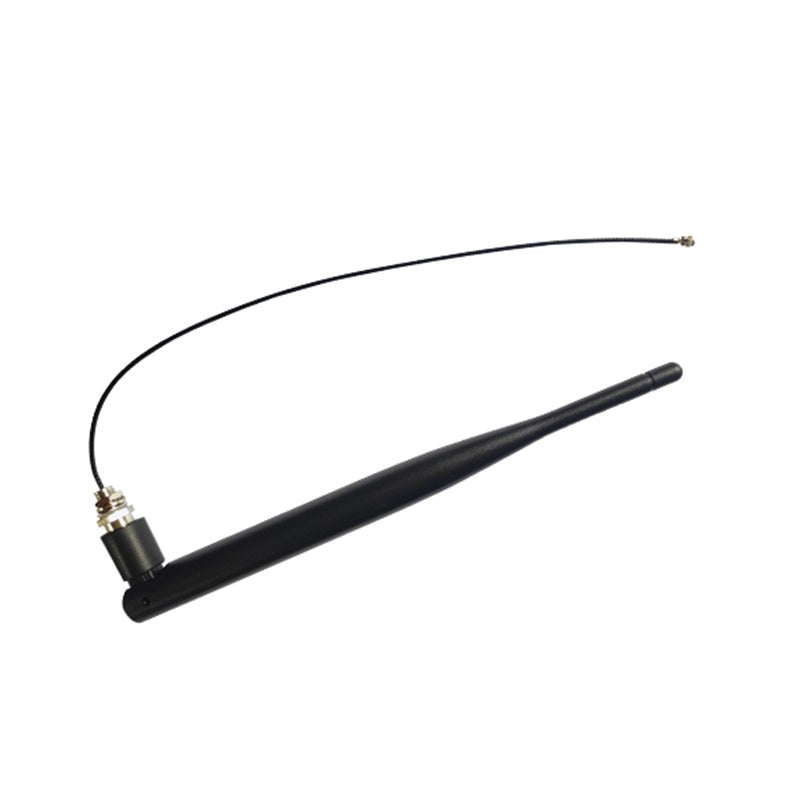

Cdsenet TX470-JKS-IPX20 470MHz 3.0dBi IP67 Waterproof Antenna Frequency Range Small Standing Wave Ratio
Cdsenet TX470-JKS-IPX20 470MHz 3.0dBi IP67 Waterproof Antenna Frequency Range Small Standing Wave Ratio
100 in stock
Couldn't load pickup availability
SKU:TX470-JKS-IPX20
Product Overview
The TX470-JKS-IPX20 is a high-performance 470MHz omnidirectional rubber rod antenna, specifically designed for robust wireless environments. Featuring a 3.0 dBi peak gain and a precision-engineered internal radiator, it ensures exceptional signal stability. With an IP67 waterproof rating and durable TPEE radome, it provides a reliable communication link for industrial IoT, smart metering, and outdoor remote sensing.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 430 - 510 MHz (Center: 470MHz) |
| Peak Gain | 3.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |
| Antenna Height | 200 mm |
| Radome Material | TPEE (UV & Weather Resistant) |
| Waterproof Rating | IP67 |
| Polarization | Vertical |
Product Details
IP67 All-Weather Protection
Designed with a sealed structure and premium TPEE material, the antenna is fully protected against dust and temporary immersion in water, making it ideal for harsh outdoor environments.
Standard SMA-J Interface
The nickel-plated copper connector with gold-plated pins ensures low signal attenuation and maximum durability for long-term industrial deployments.
Professional Test Report
Tested with Agilent E5071C: This antenna maintains a VSWR of ≤ 1.5 at 470MHz, ensuring efficient power transfer.
Ideal Applications
Smart Metering (Water/Gas)
Perfect for wireless meter reading systems requiring long-range and all-weather stability.
Industrial Data Acquisition
Ideal for LoRa/Sub-GHz remote sensing nodes in agricultural and industrial fields.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Can this antenna be used for 433MHz frequency modules?
A: While it is optimized for 470MHz, its bandwidth (430-510MHz) allows it to function effectively with 433MHz modules.
Q: Is the IP67 rating applicable to the connector area?
A: The antenna body is IP67. To ensure full system protection, ensure the SMA interface is tightly coupled or used with a waterproof seal.
