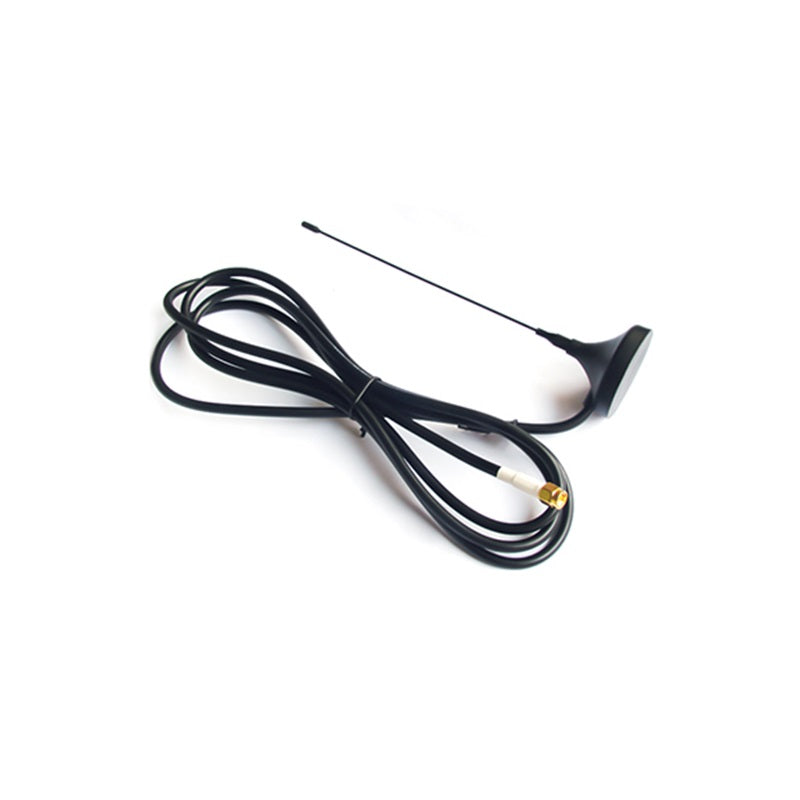

Cdsenet TX433-XPL-100 433MHz 3.5dBi High Gain Sucker Antenna SMA-J
Cdsenet TX433-XPL-100 433MHz 3.5dBi High Gain Sucker Antenna SMA-J
10000 in stock
Couldn't load pickup availability
SKU:tx433-xpl-100
Product Overview
The TX433-XPL-100 is a high-performance 433MHz omnidirectional sucker antenna, engineered for superior signal stability and long-range wireless communication. Featuring a 3.5 dBi peak gain and a magnetic base for flexible mounting, it significantly enhances transmission reliability. The antenna is constructed with high-quality materials, ensuring optimal performance for industrial data acquisition and smart wireless systems.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 410 - 450 MHz (Center: 433MHz) |
| Peak Gain | 3.5 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |
| Antenna Height | 190 mm (Total) |
| Cable Length | 1 Meter (RG174) |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
Product Details
Strong Magnetic Base
Equipped with a high-strength magnetic sucker base, this antenna can be easily attached to any metal surface, providing flexibility for varied installation environments.
Gold-Plated SMA-J Interface
The standard SMA Male connector features a gold-plated center pin to minimize signal loss and ensure long-term reliability in signal transmission.
Professional Test Report
Verified with Agilent E5071C: The antenna maintains a VSWR of ≤ 1.5 at the 433MHz center frequency, ensuring peak efficiency.
Ideal Applications
Industrial Data Acquisition
Ideal for remote terminal units (RTU) and wireless sensing nodes in factories.
Smart Utilities
Widely used in smart water/electricity meters and long-range security systems.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Can this antenna be used on vehicles?
A: Yes, the strong magnetic base allows it to be mounted on vehicle roofs for stable 433MHz communication.
Q: Is the cable length customizable?
A: The standard length is 1 meter; for batch orders, please contact support for custom cable options.
