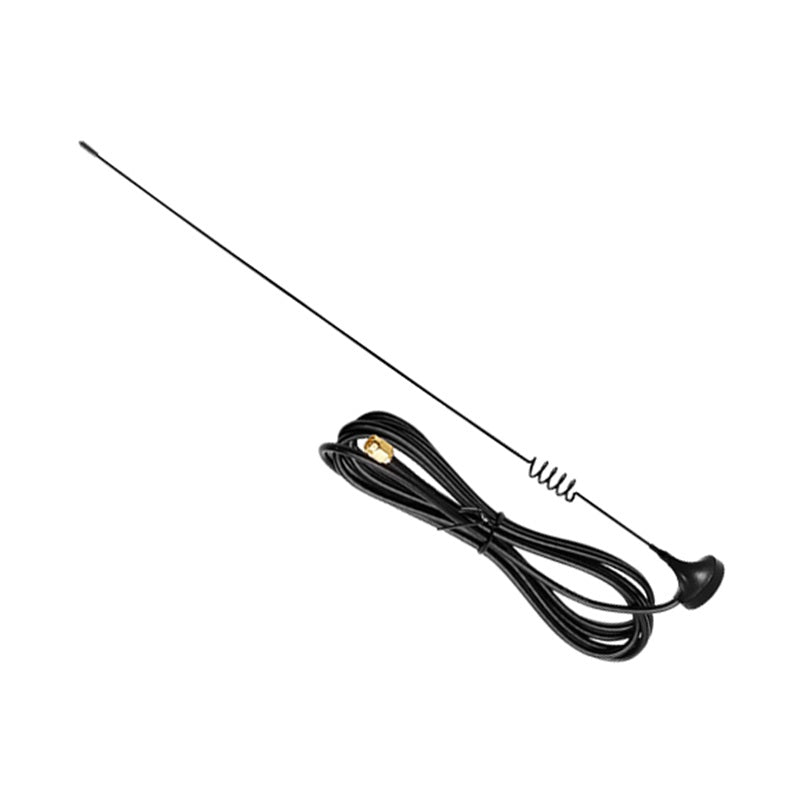

Cdsenet TX433-XP45-200 433MHz 4.0dBi High Gain Sucker Antenna
Cdsenet TX433-XP45-200 433MHz 4.0dBi High Gain Sucker Antenna
10000 in stock
Couldn't load pickup availability
SKU:tx433-xp45-200
Product Overview
The TX433-XP45-200 is a professional-grade 433MHz omnidirectional sucker antenna, meticulously engineered for high-stability wireless data transmission. Featuring a 4.0 dBi peak gain and a precision-tuned radiator, it significantly enhances signal penetration and coverage. Its integrated magnetic base and 2-meter RG174 cable offer exceptional installation flexibility for industrial and outdoor communication environments.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 410 - 450 MHz (Center: 433MHz) |
| Peak Gain | 4.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |
| Cable Length | 2 Meters (RG174) |

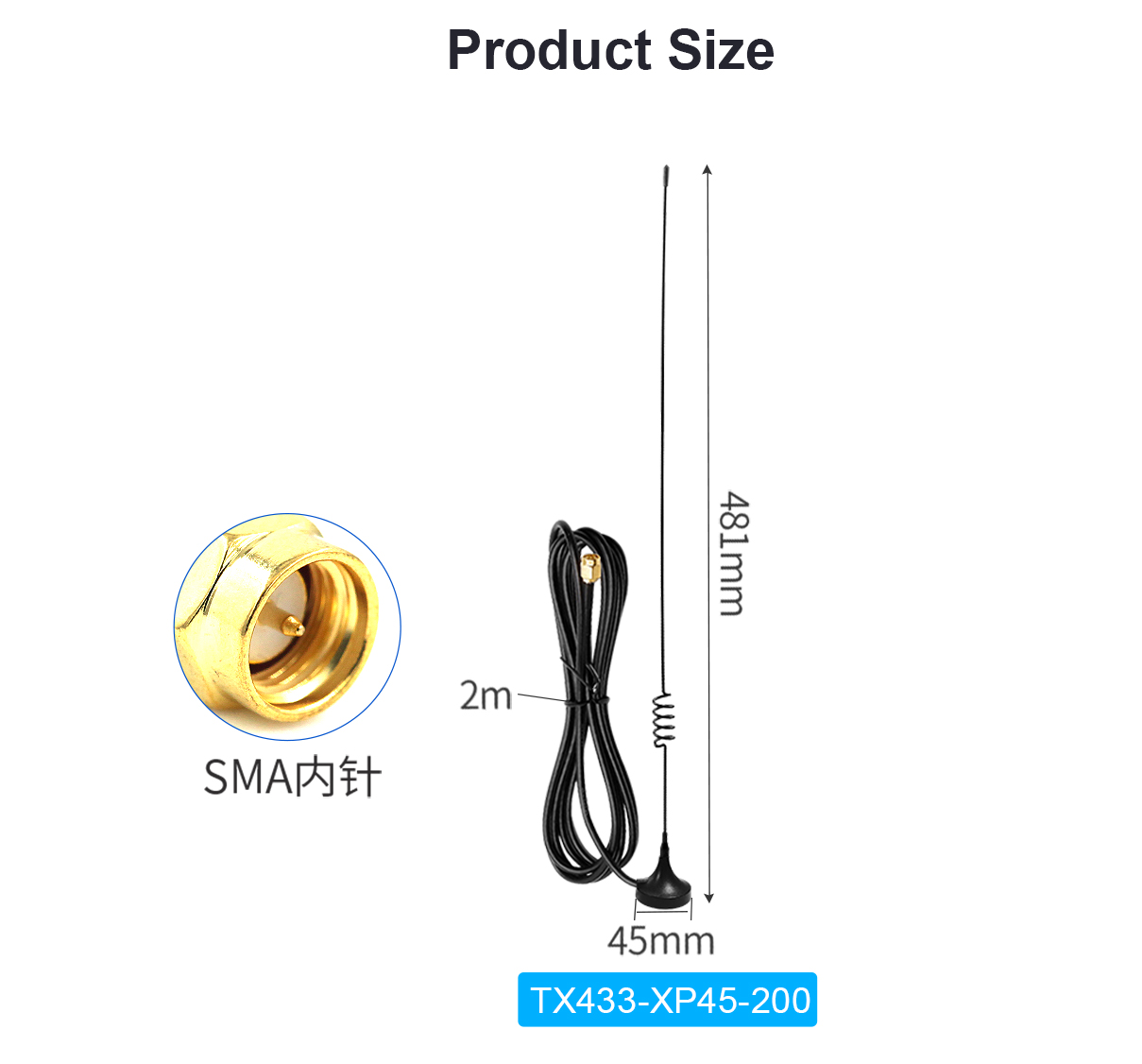

| Antenna Height | 430 mm |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
Product Details
Heavy-Duty Magnetic Sucker Base
The antenna is equipped with a powerful magnetic base, allowing for instant and secure attachment to control cabinets or vehicle roofs, ensuring optimal signal reception without drilling.
Standard SMA-J Interface
Features a gold-plated SMA Male connector for superior conductivity, minimal signal loss, and high durability for long-term industrial deployments.
Professional Test Report
Verified with Agilent E5071C: The antenna maintains a VSWR of ≤ 1.5 at 433MHz, ensuring maximum power transfer and efficiency.
Ideal Applications
Industrial RF Remote Control
Perfect for wireless data transmission in factory automation and PLC remote systems.
Smart Grid & Security
Reliable solution for smart meter reading and long-distance security monitoring.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Can this antenna be used on vehicle roofs?
A: Yes, the strong magnetic base is designed for secure mounting on metal surfaces like vehicle roofs for mobile communication.
Q: What is the benefit of the 2-meter cable?
A: The 2-meter RG174 cable provides enough length to place the antenna in an optimal high position while keeping the device protected inside a cabinet.
