Cdsenet TX433-JG-150 433MHz 3.5dBi Fiberglass Omni Outdoor Antenna
Cdsenet TX433-JG-150 433MHz 3.5dBi Fiberglass Omni Outdoor Antenna
10000 in stock
Couldn't load pickup availability
SKU:tx433-jg-150
Product Overview
The TX433-JG-150 is a professional-grade 433MHz omnidirectional fiberglass antenna, meticulously engineered for long-range outdoor wireless communication. Featuring a 3.5 dBi peak gain and a high-efficiency radiator, it significantly enhances signal coverage for Sub-1GHz applications. Encased in a rugged, weather-resistant fiberglass shell, it ensures ultra-reliable performance for LoRa gateways and industrial IoT base stations in harsh environments.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 410 - 450 MHz (Center 433MHz) |
| Peak Gain | 3.5 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |
| Radome Material | Fiberglass (Anti-UV/Corrosion) |
| Total Height | 150 mm |
| Impedance | 50 Ω |
| Polarization | Vertical Polarization |
Product Details
Industrial Fiberglass Construction
Unlike traditional rubber antennas, the fiberglass radome provides exceptional protection against UV rays, acid rain, and extreme temperatures, ensuring a lifespan of several years in outdoor deployments.

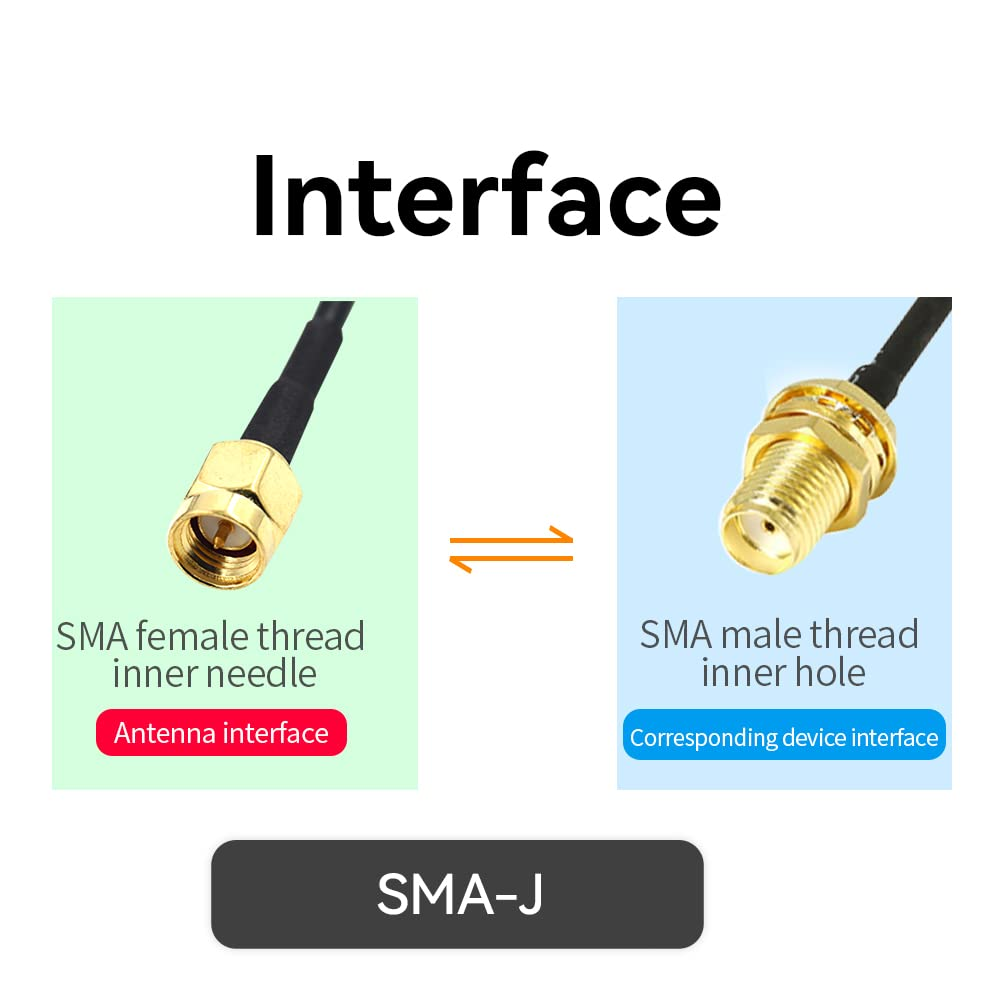

Standard SMA-J Interface
Equipped with a precision SMA Male connector (internal thread and needle) made of high-conductivity materials for minimal signal attenuation.
Professional Test Report
Verified with Agilent E5071C: VSWR consistently measured at ≤ 1.5 @ 433MHz.
Ideal Applications

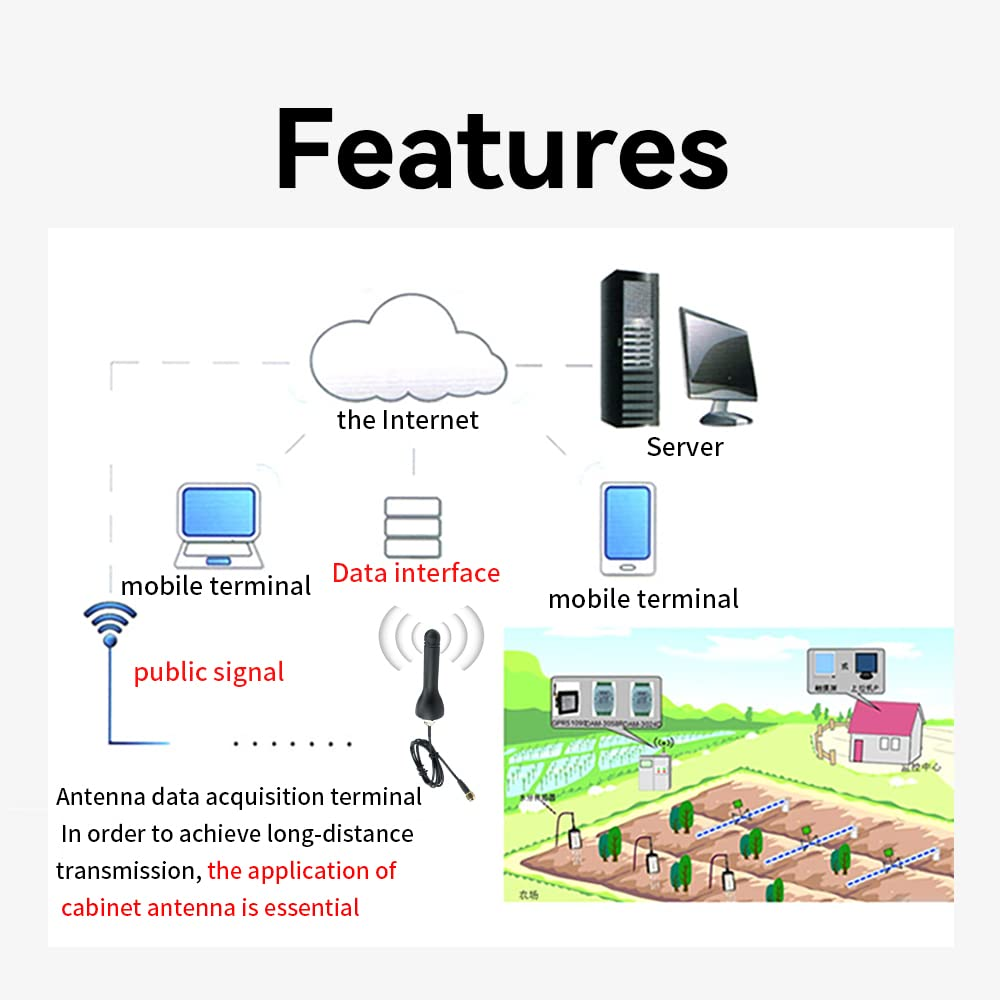

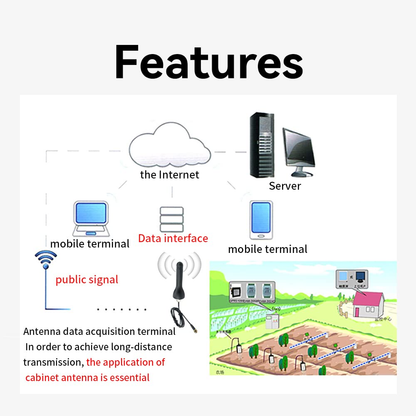

Outdoor LoRa Gateways
Perfect for long-distance LPWAN networks and outdoor base station signal extension.
Smart Agriculture
Reliable data transmission for remote soil monitoring and irrigation control systems.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Can this antenna be used for indoor devices?
A: Yes, as long as the device operates at 433MHz and has an SMA-K (Female) interface. However, its fiberglass design is specifically optimized for outdoor durability.
Q: Is it waterproof?
A: Yes, the fiberglass radome is naturally waterproof and corrosion-resistant, making it ideal for permanent outdoor installation.
