TX2400-XPL-150 3.5 dBi peak gain SMA-J VSWR≤1.5 antenna
TX2400-XPL-150 3.5 dBi peak gain SMA-J VSWR≤1.5 antenna
10000 in stock
Couldn't load pickup availability
SKU:tx2400-xpl-150
Product Overview

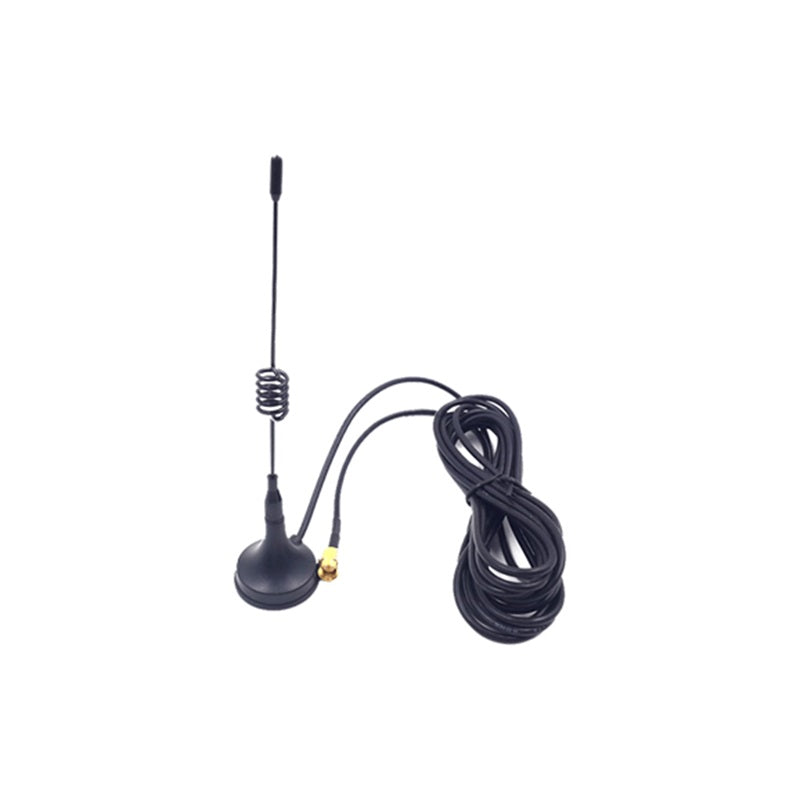

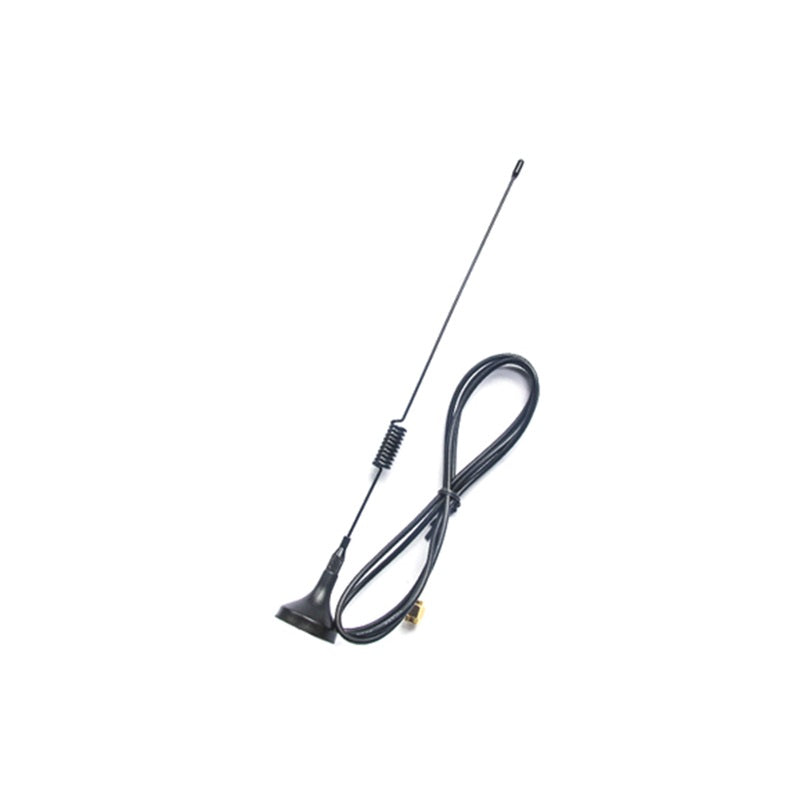

The TX2400-XPL-150 is a professional-grade 2.4GHz omnidirectional suction cup antenna, designed for long-range and high-stability wireless communication. Featuring a 3.5 dBi peak gain and a 1.5-meter RG174 cable, it allows for flexible placement to bypass obstacles. The integrated strong magnetic base ensures easy and secure mounting on metal surfaces, making it an ideal choice for industrial gateways and wireless terminals.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 2400 - 2500 MHz (2.4GHz) |
| Peak Gain | 3.5 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |
| Cable Length & Type | 1.5 Meters / RG174 |

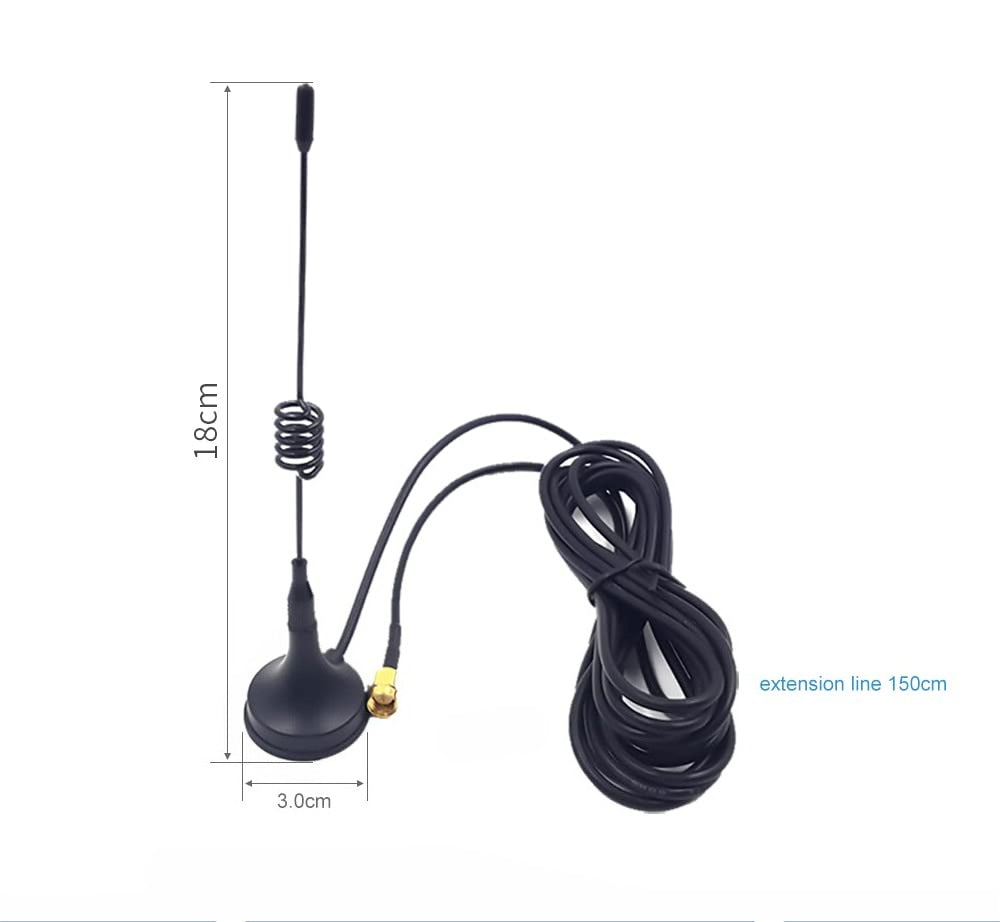

| Total Height | ~150mm (Approx.) |
Product Details
Strong Magnetic Base
The base features a high-performance permanent magnet. It can be firmly attached to any metal surface, providing a stable foundation for the antenna radiator even in vibrating industrial environments.
High-Quality Extension Cable
The 1.5m RG174 pure copper shielded cable minimizes signal attenuation and interference, allowing the antenna to be placed in an optimal position for line-of-sight transmission.
Professional Test Report
Measured with Agilent E5071C: VSWR typically remains under 1.5 across the 2400-2500MHz band.
Ideal Applications
Industrial IoT Gateways
Perfect for cabinet-mounted devices where the antenna needs to be placed outside the metal enclosure.
Smart City & Vending
Used in smart lockers, vending machines, and charging piles for reliable WiFi/Bluetooth connectivity.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Does the antenna need to be mounted on metal?
A: While it can work alone, suction cup antennas perform better when attached to a metal surface, as the metal acts as a ground plane to enhance gain.
Q: Can the cable be shortened?
A: We recommend using the original 1.5m length. Cutting or modifying the cable may affect the impedance matching and increase VSWR.
