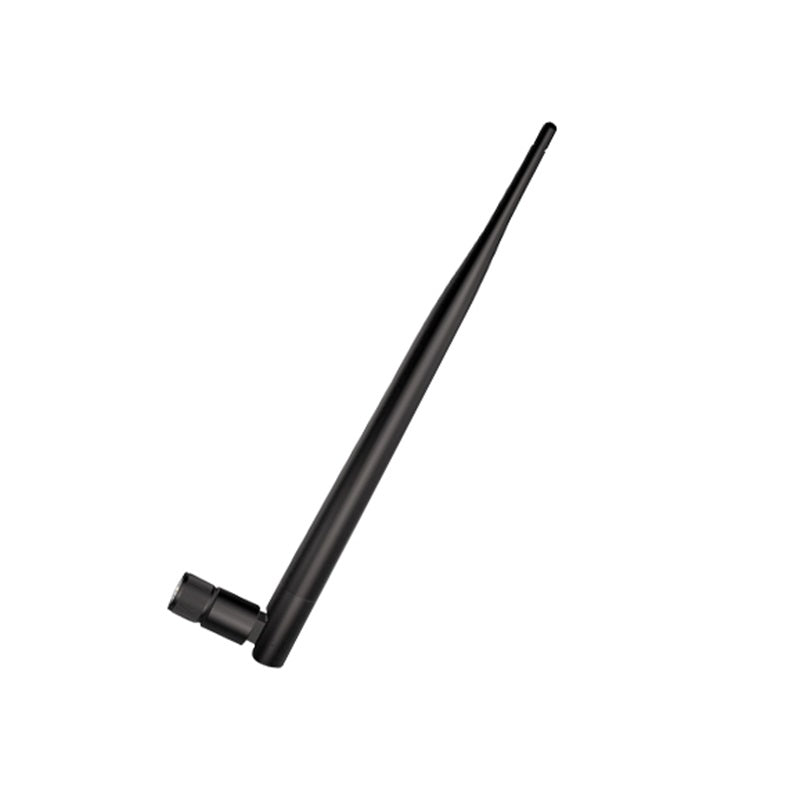

Cdsenet TX2400-JKS-20 2.4GHz Omnidirectional Rod Antenna - 5.0dBi WiFi Bluetooth ZigBee Antenna with SMA Connector
Cdsenet TX2400-JKS-20 2.4GHz Omnidirectional Rod Antenna - 5.0dBi WiFi Bluetooth ZigBee Antenna with SMA Connector
10000 in stock
Couldn't load pickup availability
SKU:tx2400-jks-20
Product Overview
The TX2400-JKS-20 is a professional-grade 2.4GHz omnidirectional rod antenna, meticulously engineered for high-stability wireless communication. Featuring a 5.0 dBi peak gain and a precision-tuned PCB radiator, it significantly enhances signal penetration. Encased in durable TPEE material, it ensures reliable performance for both industrial IoT and smart home environments.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 2400 - 2500 MHz (2.4GHz) |
| Peak Gain | 5.0 dBi |
| VSWR | ¡Ü 1.5 (Typ. 1.22 @ 2.45GHz) |
| Connector Type | SMA-J (SMA Male) |

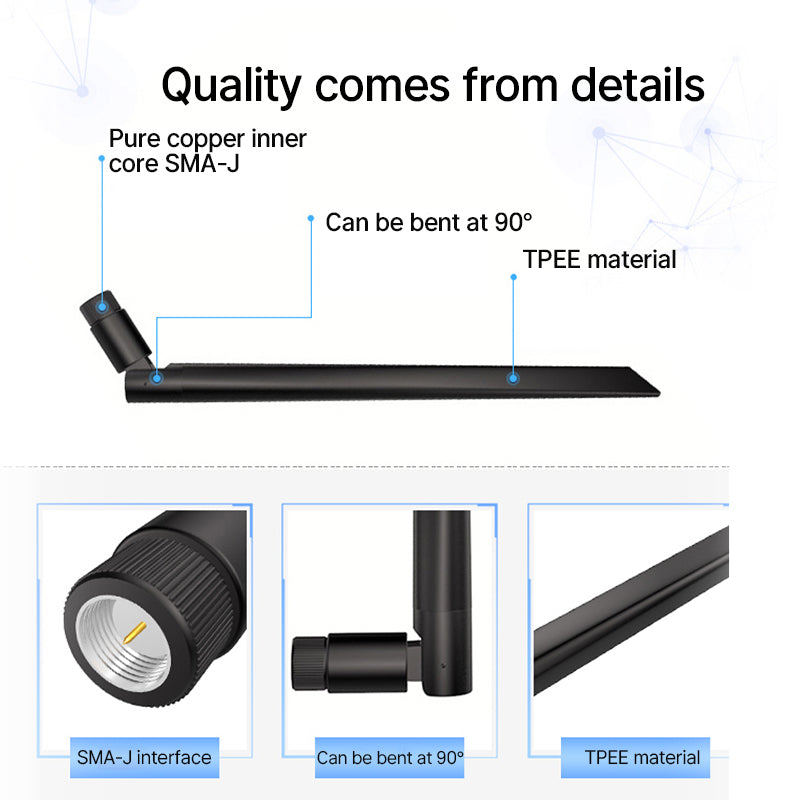

| Radome Material | TPEE (Weather-resistant) |
Product Details
Balanced feeding VS Unbalanced feeding
Adopting a balanced feed design, it is less susceptible to environmental interference, achieving wide bandwidth and stable performance.

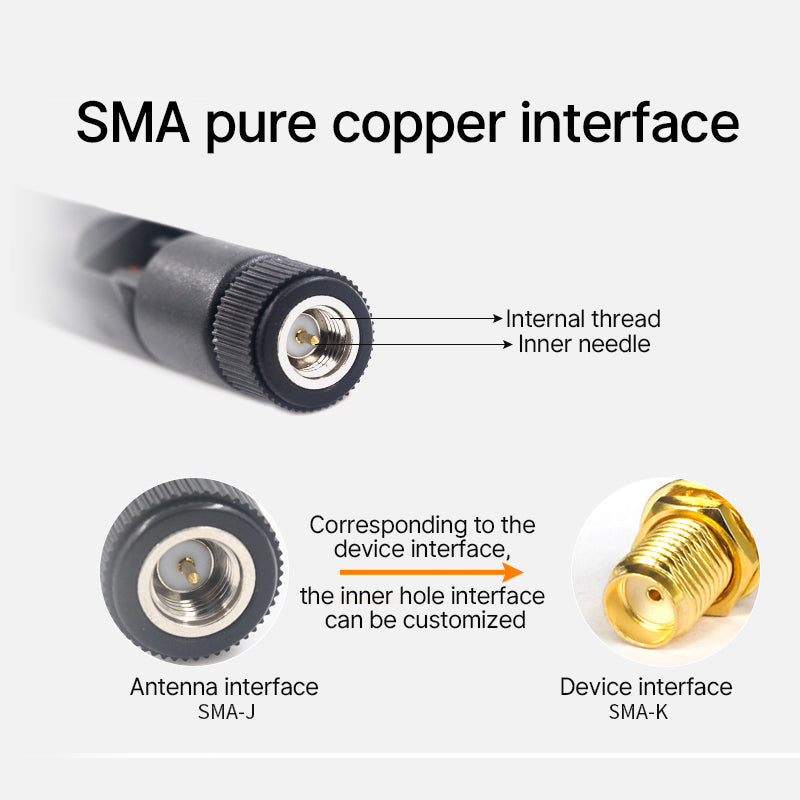

Standard SMA-J Interface
Made of nickel-plated copper with gold-plated pins to facilitate high-frequency signal transmission and durability.
Professional Test Report
Verified with Agilent E5071C: VSWR measured at 1.22 @ 2.45GHz.
Ideal Applications
WiFi & Bluetooth Solutions
Smart home gateways and industrial Bluetooth nodes.
Industrial Data Transmission
ZigBee networks and industrial telemetry systems.
Resources
?? Download Datasheet (PDF)FAQ
Q: Is this compatible with all 2.4GHz modules?
A: Yes, as long as your device has a standard SMA Female (SMA-K) interface.
Q: Can it be used outdoors?
A: TPEE is weather-resistant, but for heavy rain, we recommend a waterproof enclosure.
