Multi-Mode GNSS Positioning Module RS485 CDSENET EWD108 Series DC5-24V BDS/GPS/GLONASS/GALILEO/QZSS/SBAS Modbus RTU

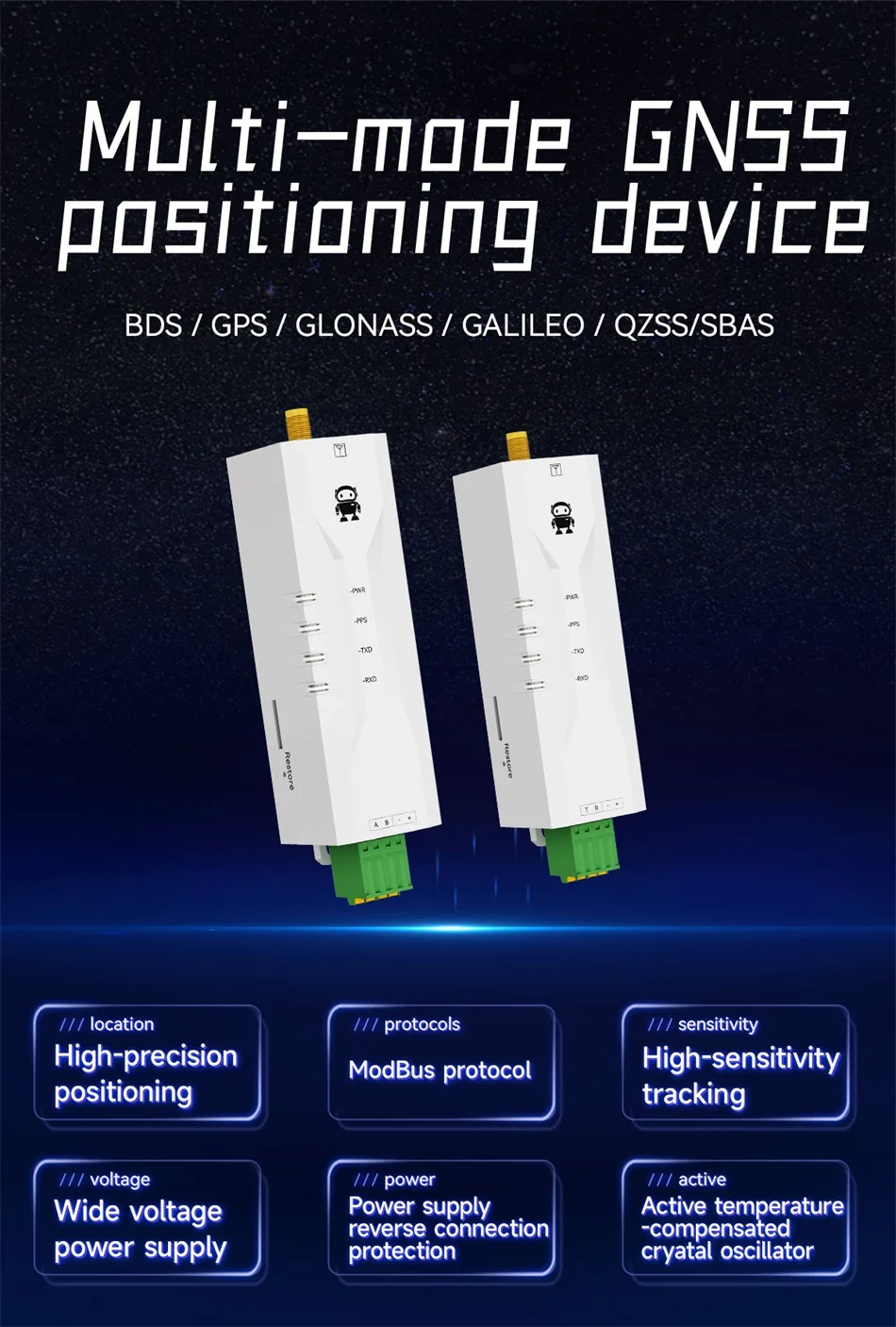

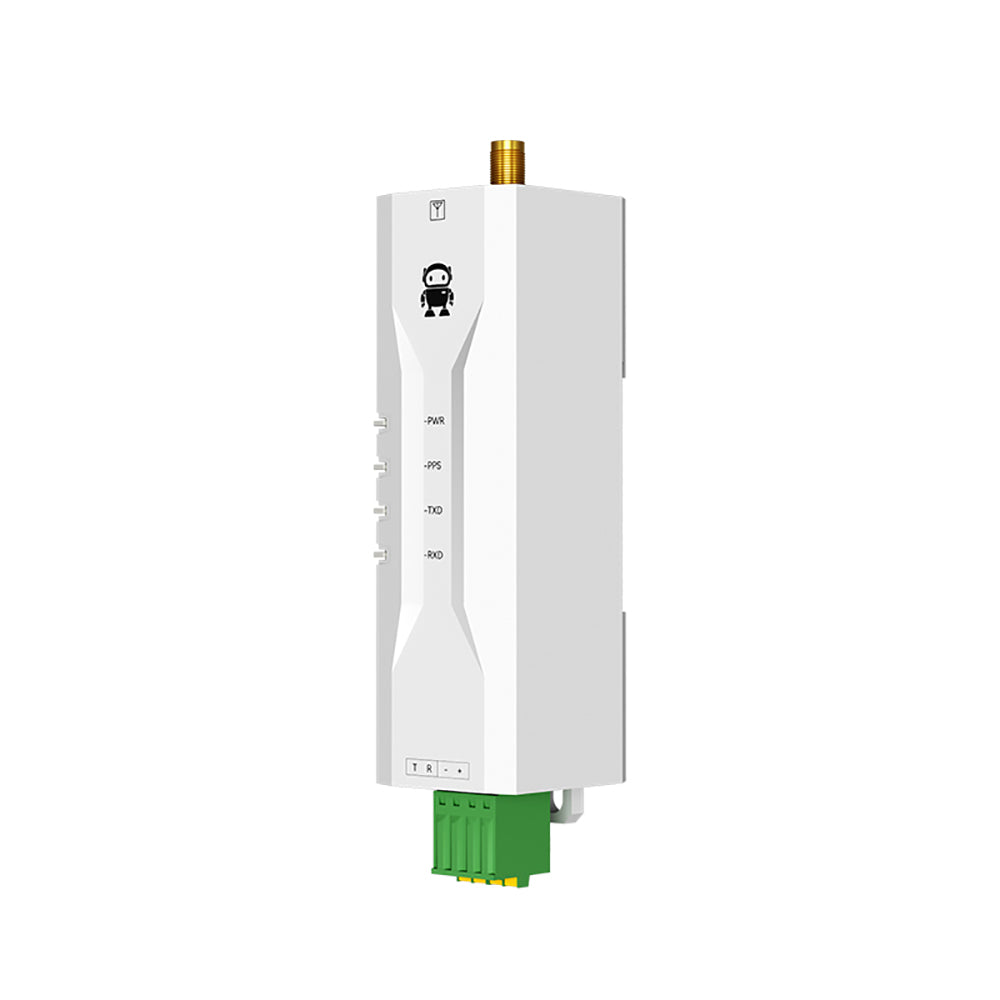

EWD108 is a positioning terminal that supports multiple positioning systems .
This multi-mode GNSS satellite positioning module device outputs positioning information through the Modbus RTU protocol.

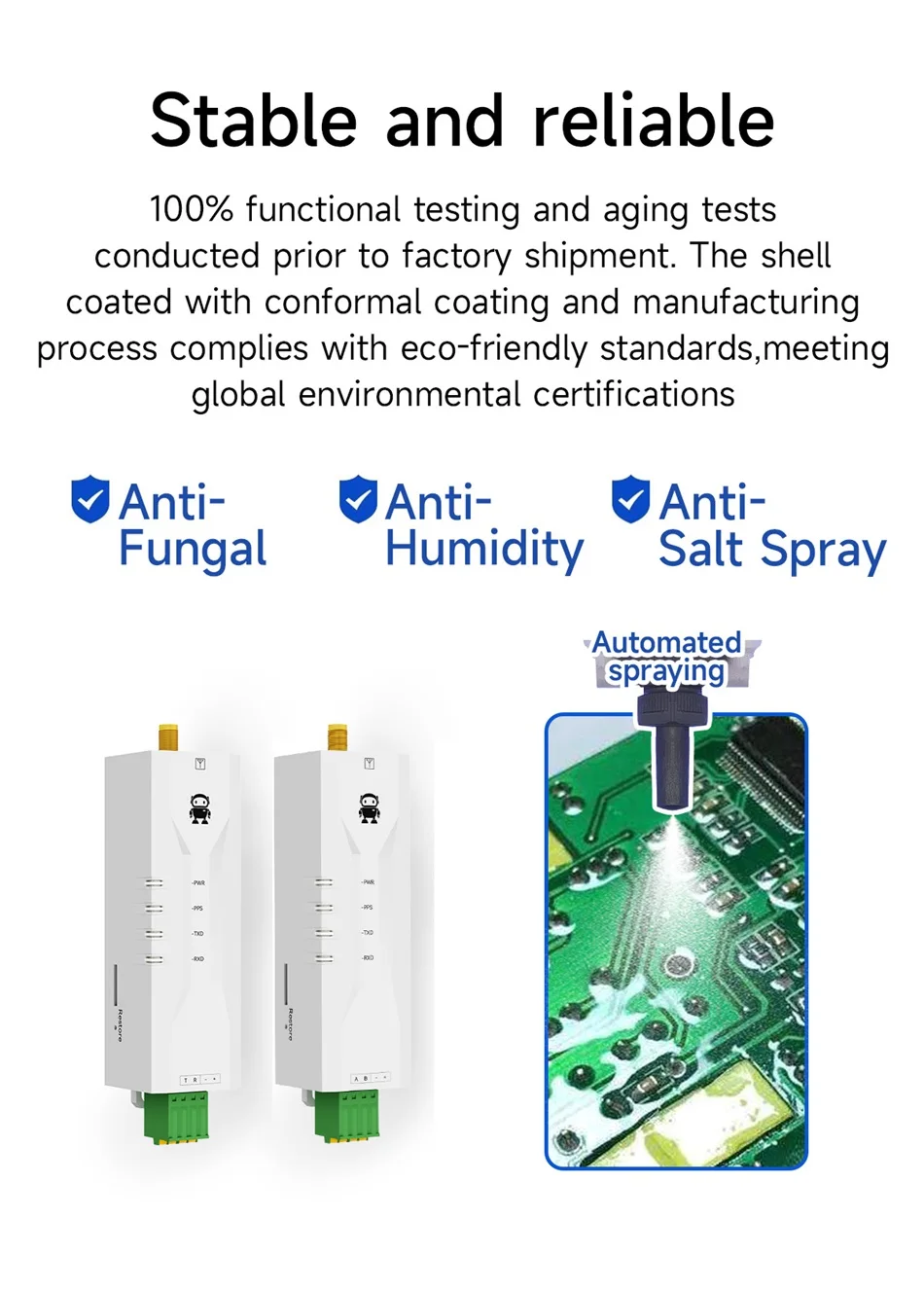

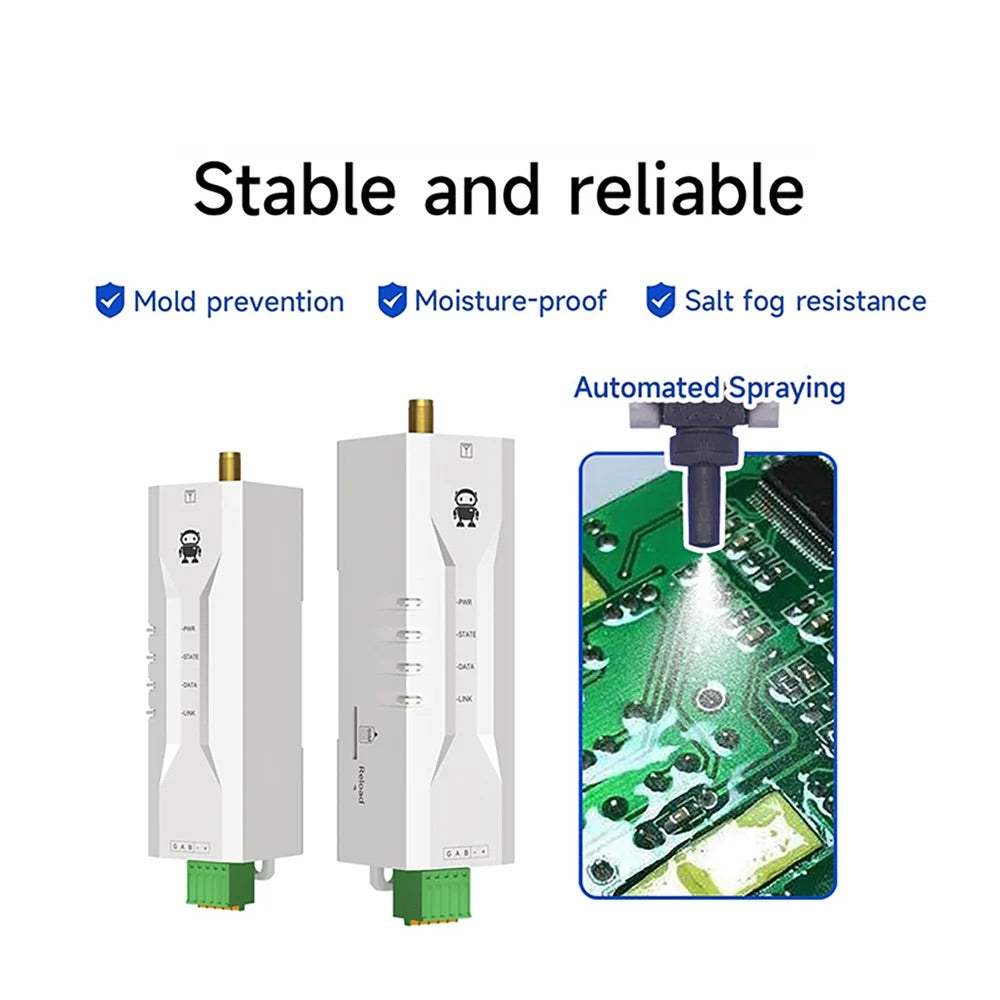

The shell adopts three-proof coating, which is Anti-Fungal, Anti-Humidity, and Anti-Salt Spray.
Supports the output of RMC-ASCII strings that comply with the NMEA0183 protocol and separate registers for storage (longitude, longitude direction, latitude, latitude direction, etc.), and the serial port baud rate can reach up to 115200bps, which can be transmitted through the Modbus RTU protocol.

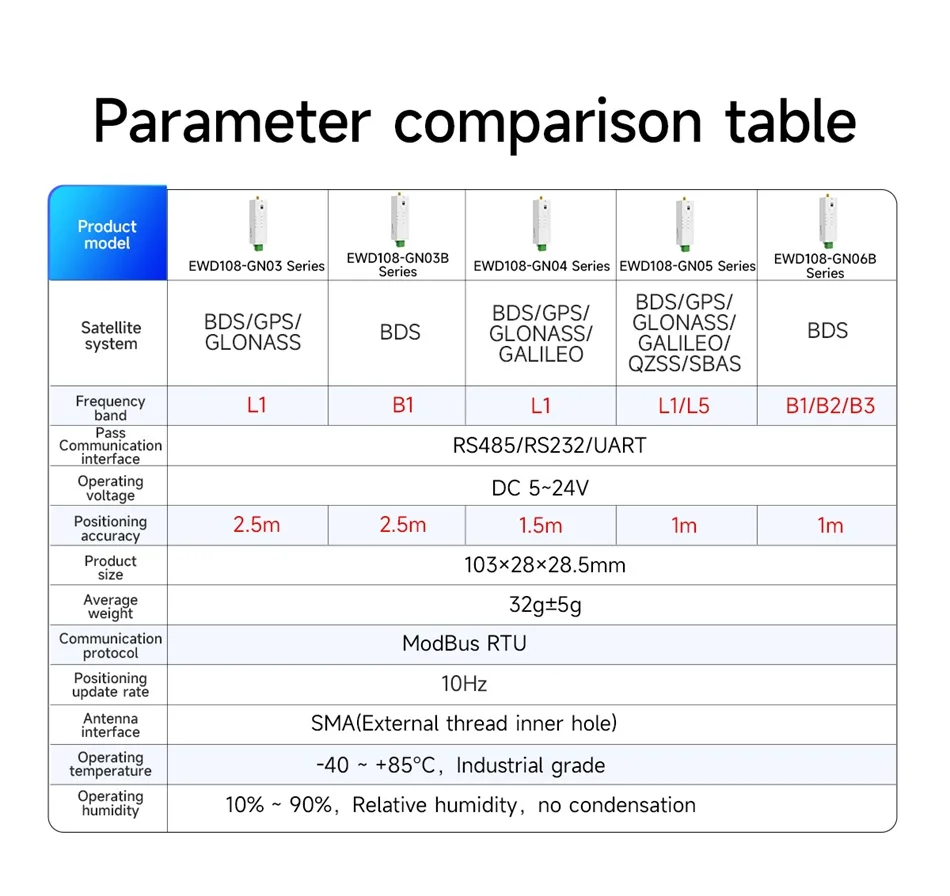

• Supports BDS/GPS/GLONASS/GALILEO/QZSS/SBAS satellite navigation systems, as well as multi-system
• combined positioning (different models support different positioning systems);

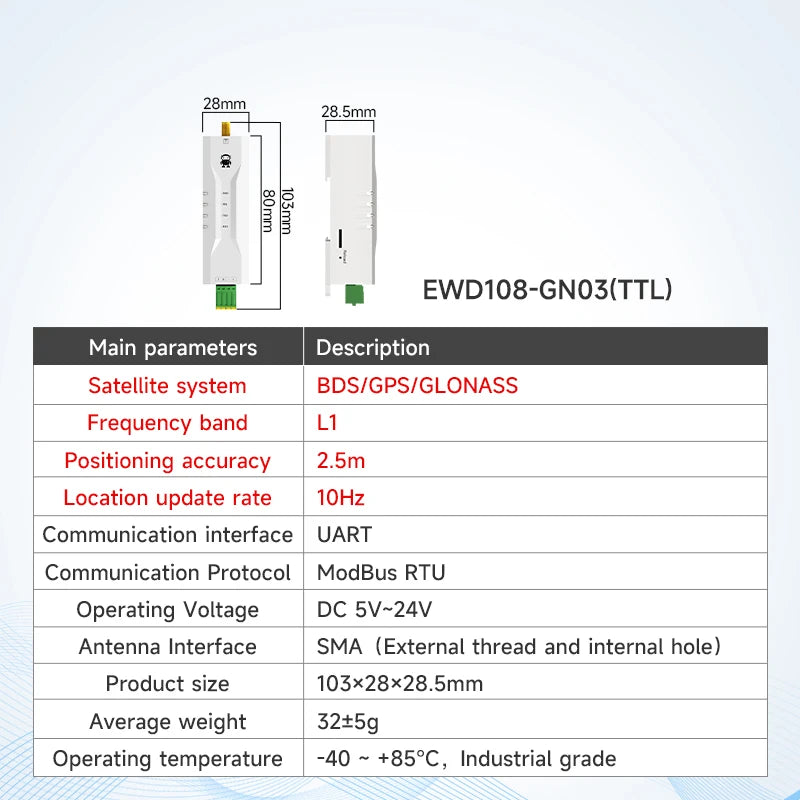

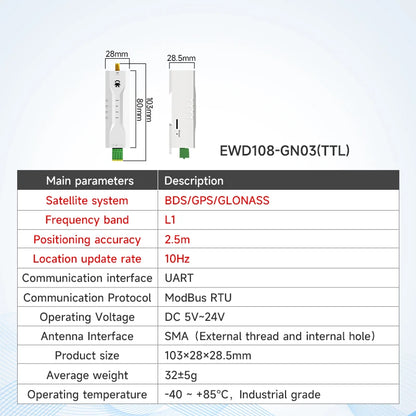

• EWD108-GN03 series supports satellite systems: BDS/GPS/GLONASS, with positioning accuracy up to 2.5 meters (CEP50);

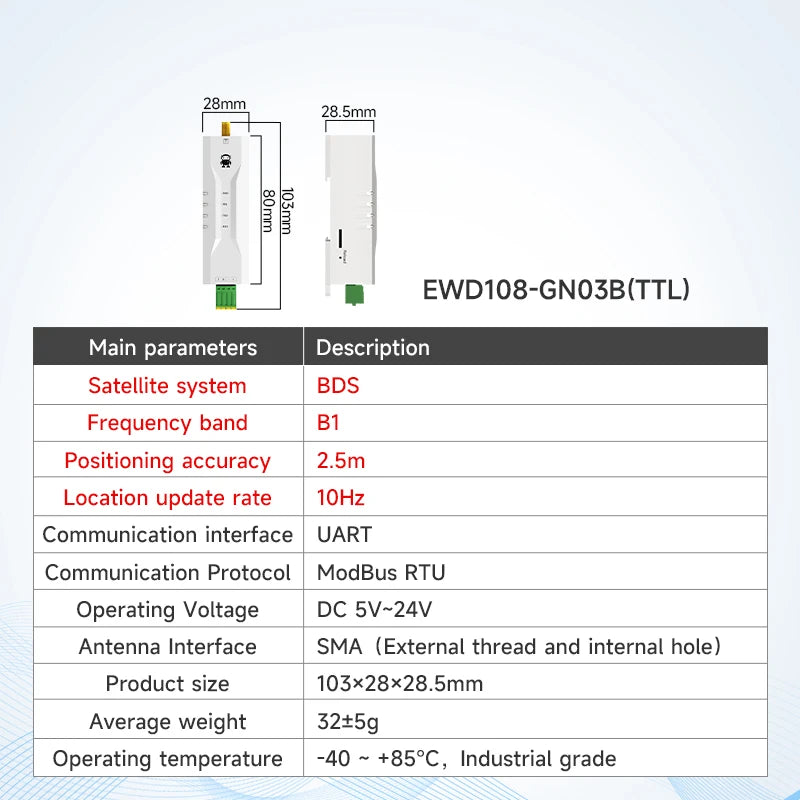

• EWD108-GN03B series supports satellite systems: BDS, with positioning accuracy up to 2.5 meters (1σ);

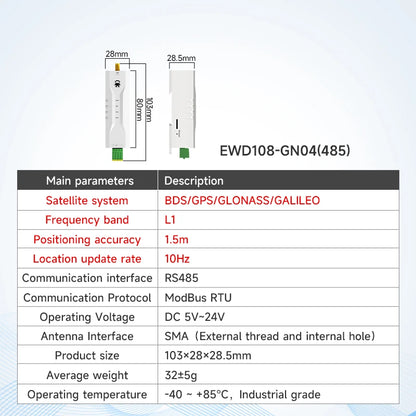

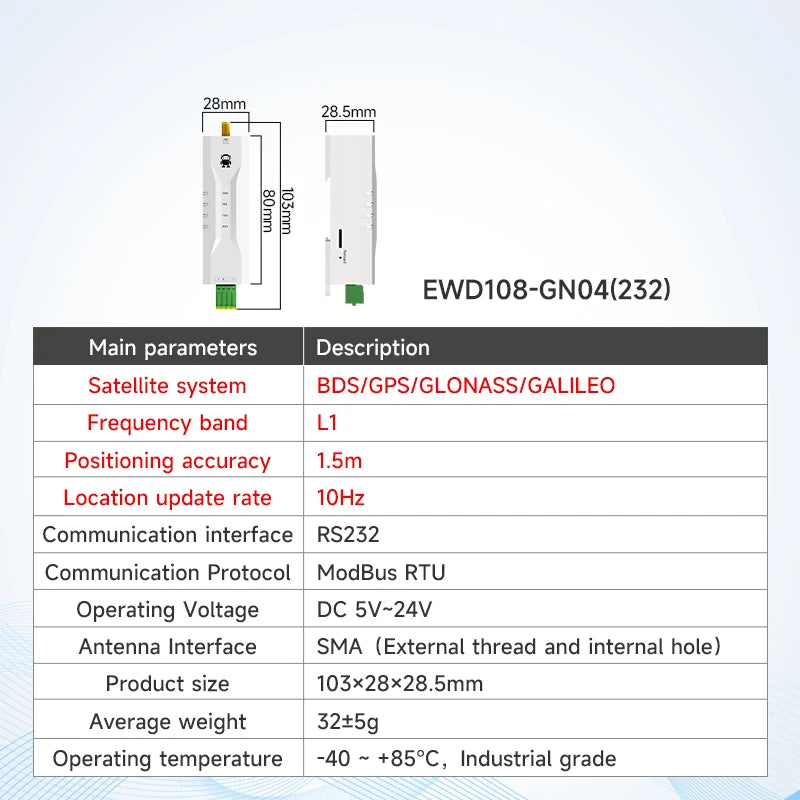

• EWD108-GN04 series supports satellite systems: BDS/GPS/GLONASS/GALILEO, with positioning accuracy up
• to 1.5 meters (CEP50);

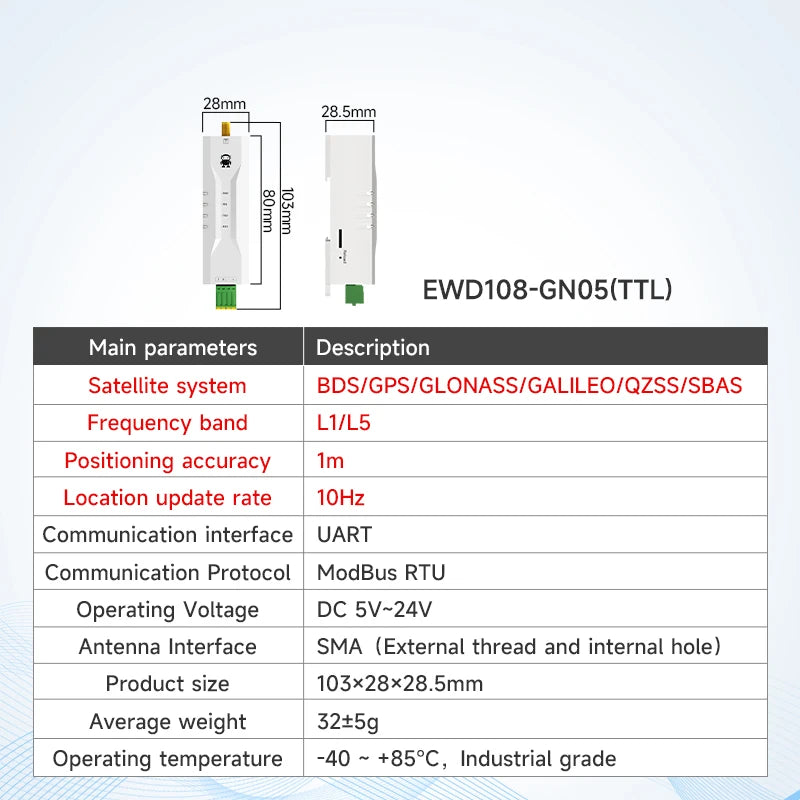

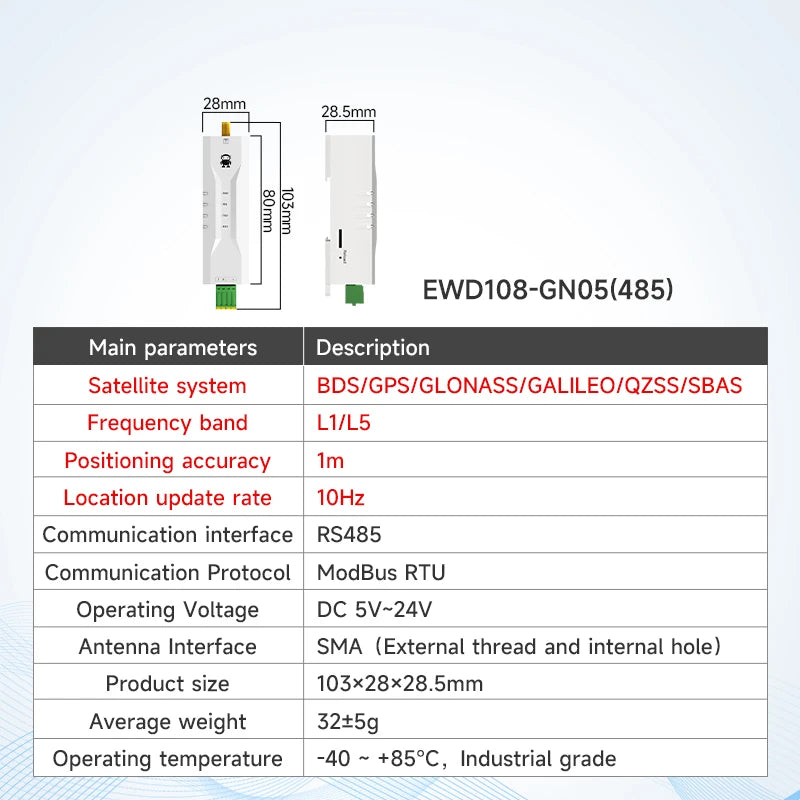

• EWD108-GN05 series supports satellite systems: BDS/GPS/GLONASS/GALILEO/QZSS/SBAS, with positioning
• accuracy up to 1.0 meter (CEP50);
• EWD108-GN06B series supports satellite systems: BDS, with positioning accuracy up to 1.0 meter (CEP50);
• Various serial port baud rates (1200-115200bps) can be configured;
• Support standard Modbus RTU protocol to read positioning information;
• Multiple positioning information output formats;

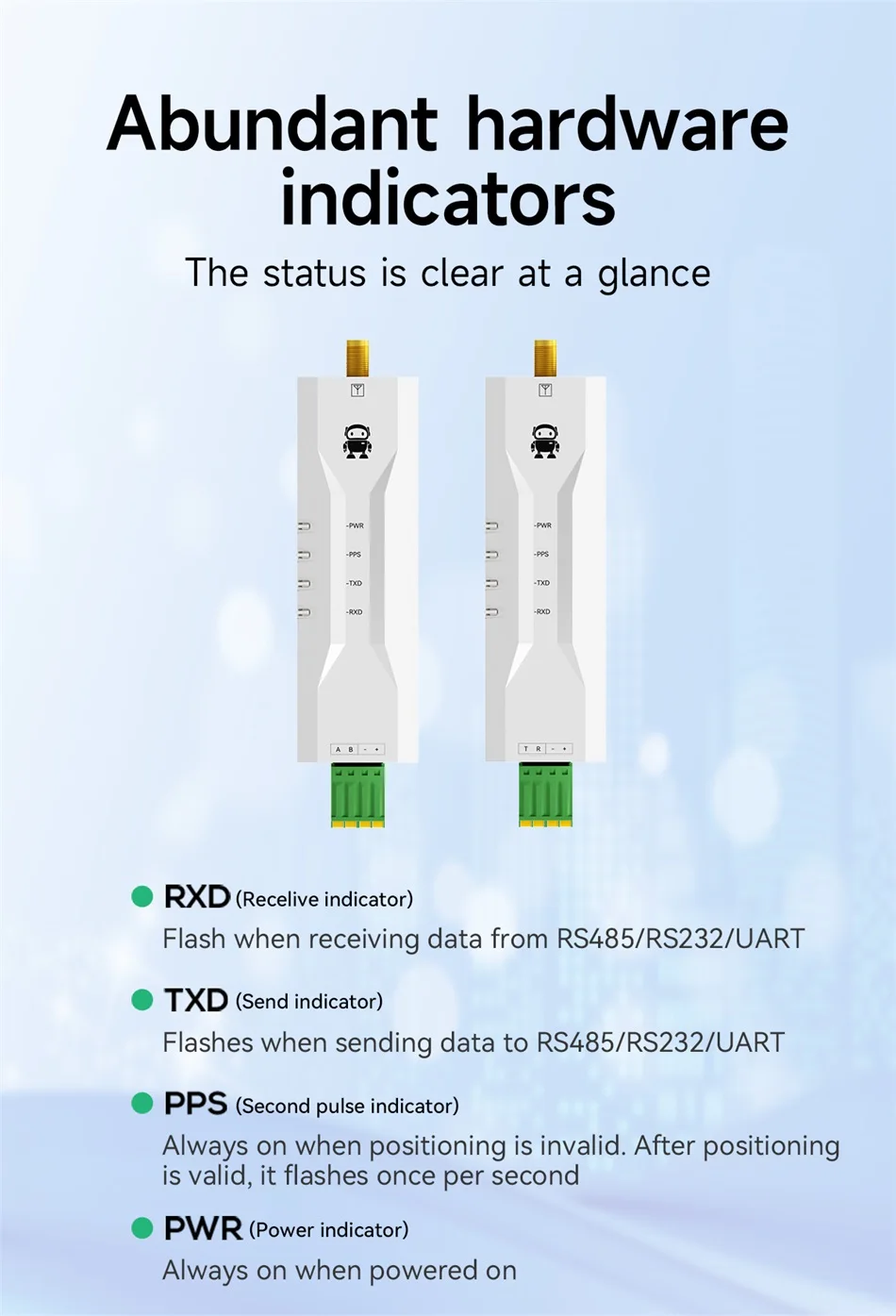

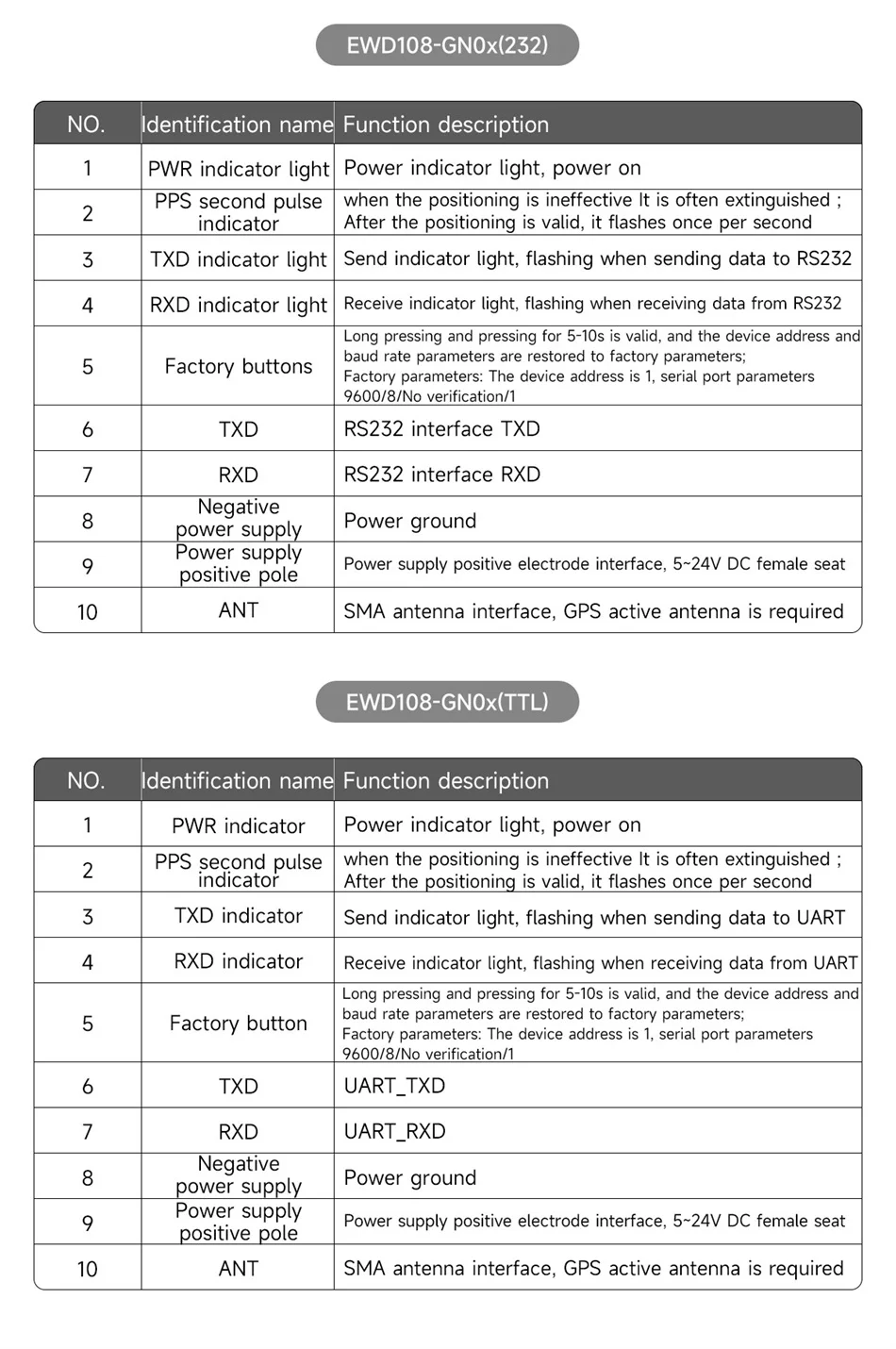

• Output antenna positioning status through registers and indicators;
• Support active antenna and passive antenna switching;
• The communication interface is equipped with TVS protection;
• Support wide voltage input DC5~24V;

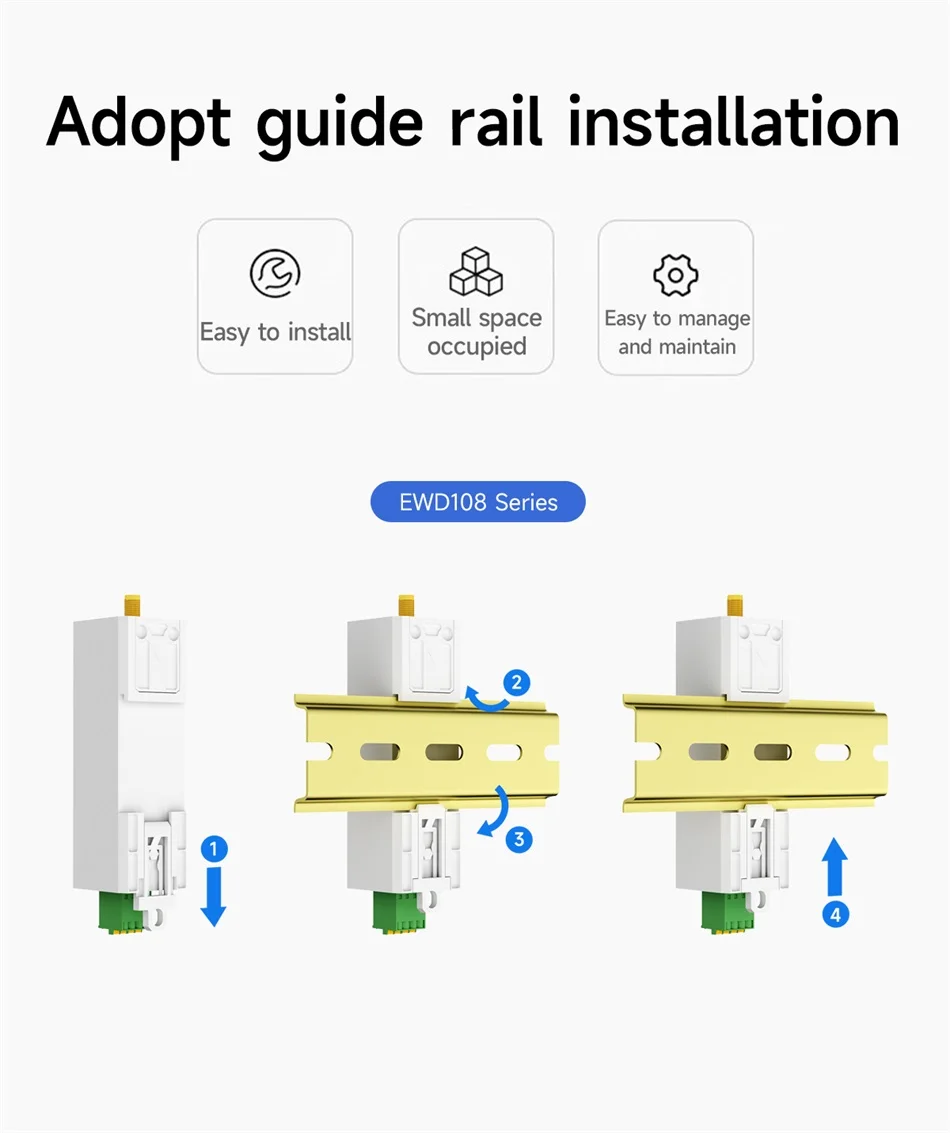

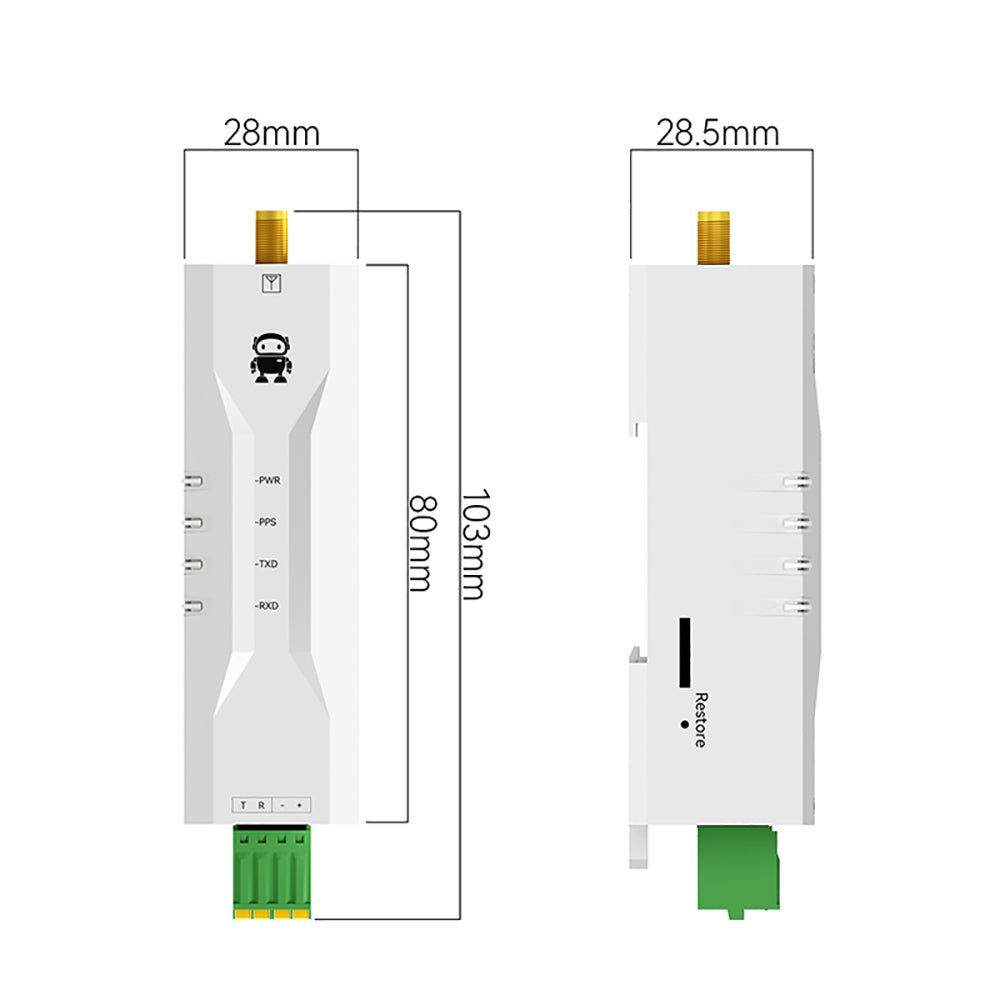

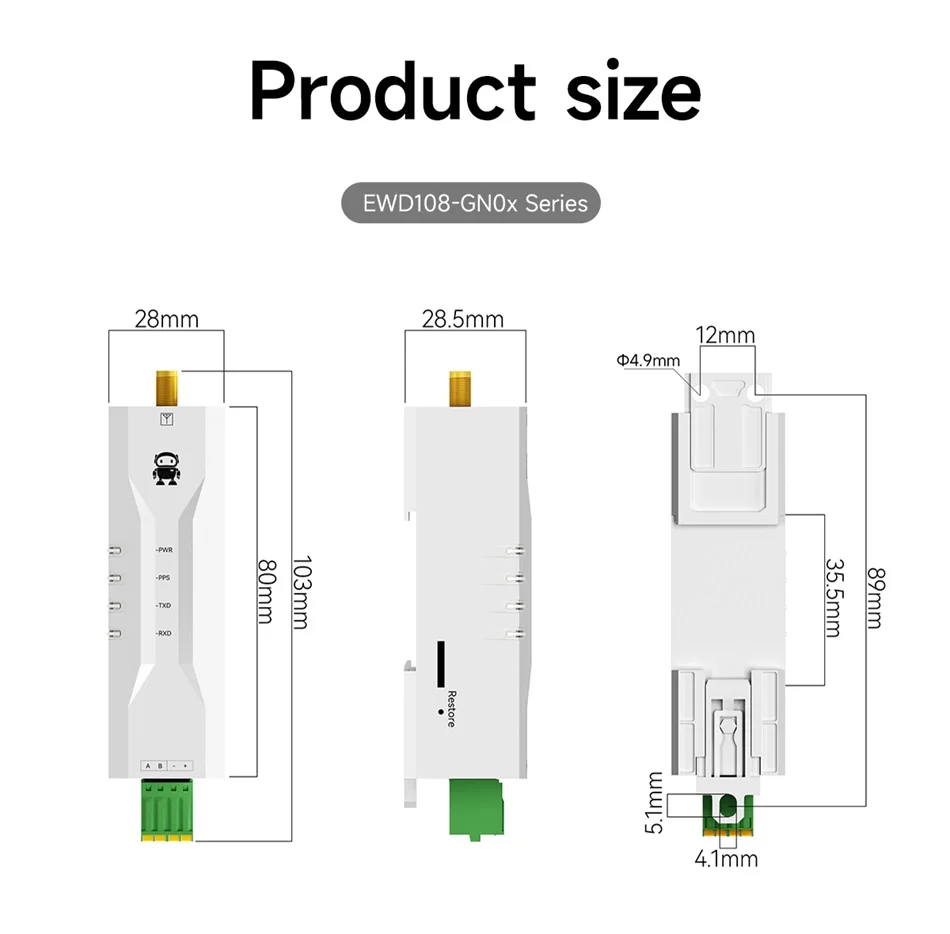

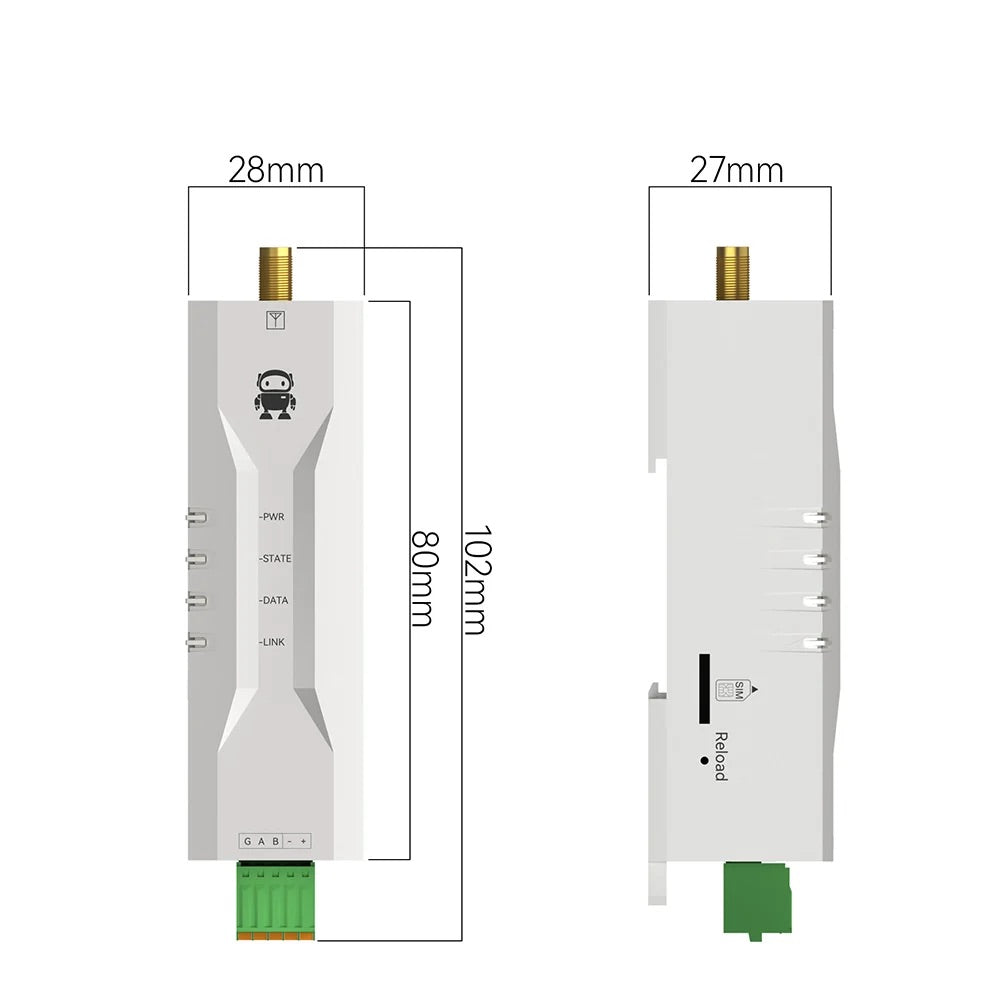

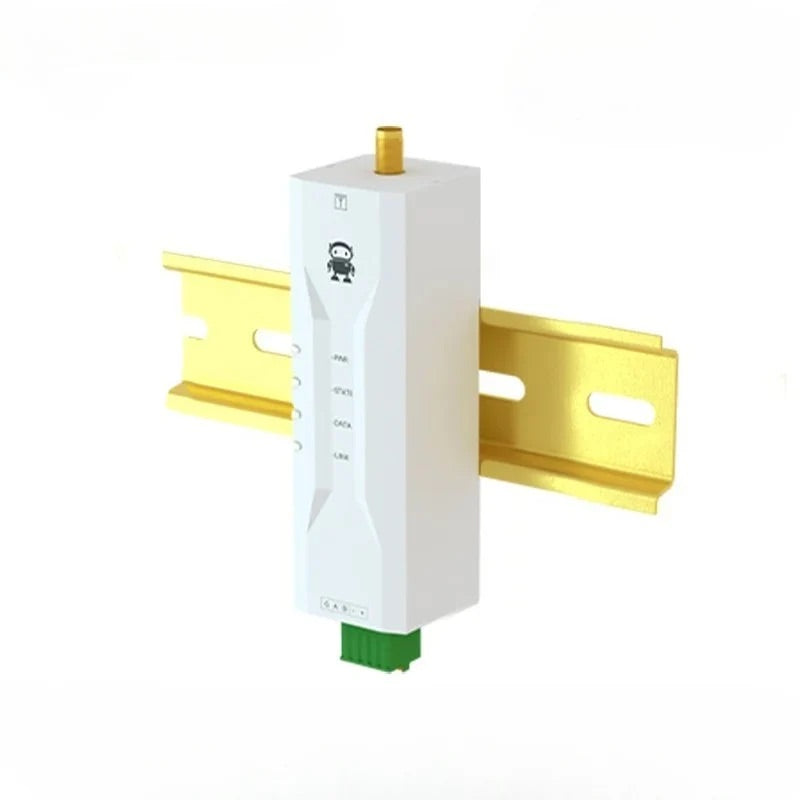

• Supports rail mounting and positioning hole installation;

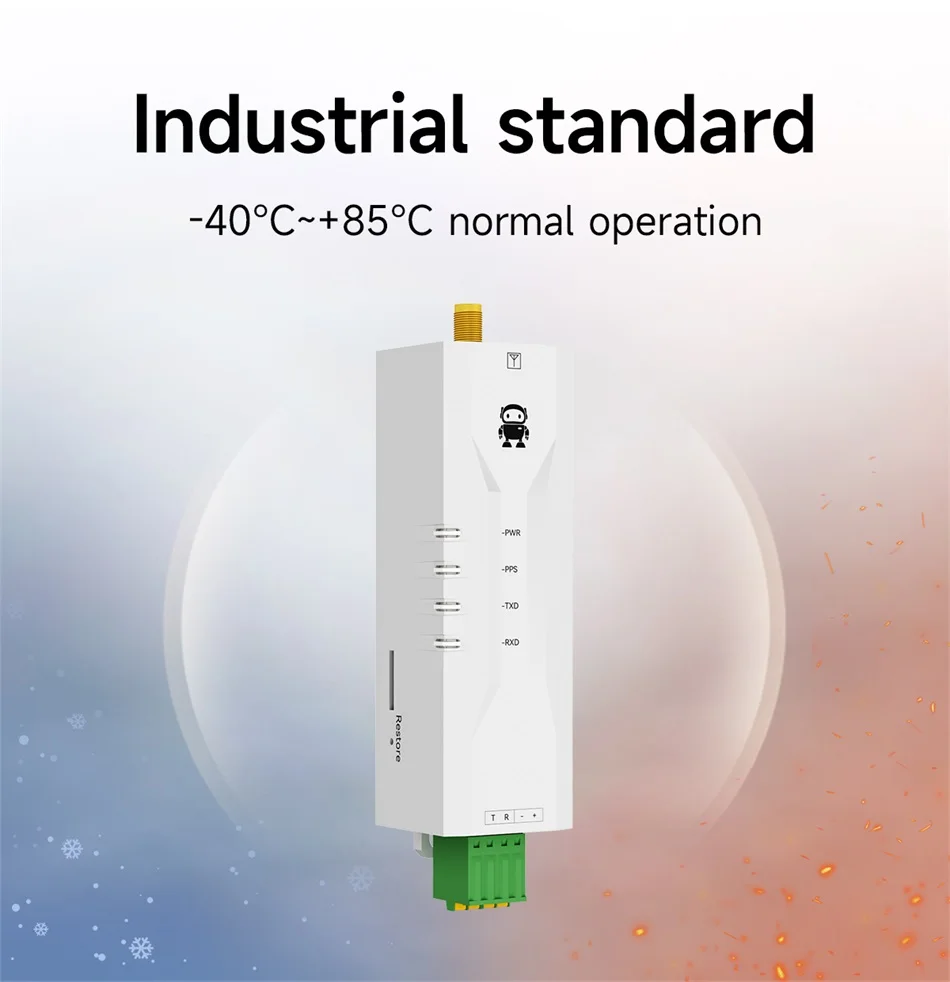

• Industrial-grade design, support operating temperature up to -40 ~ 85℃;
