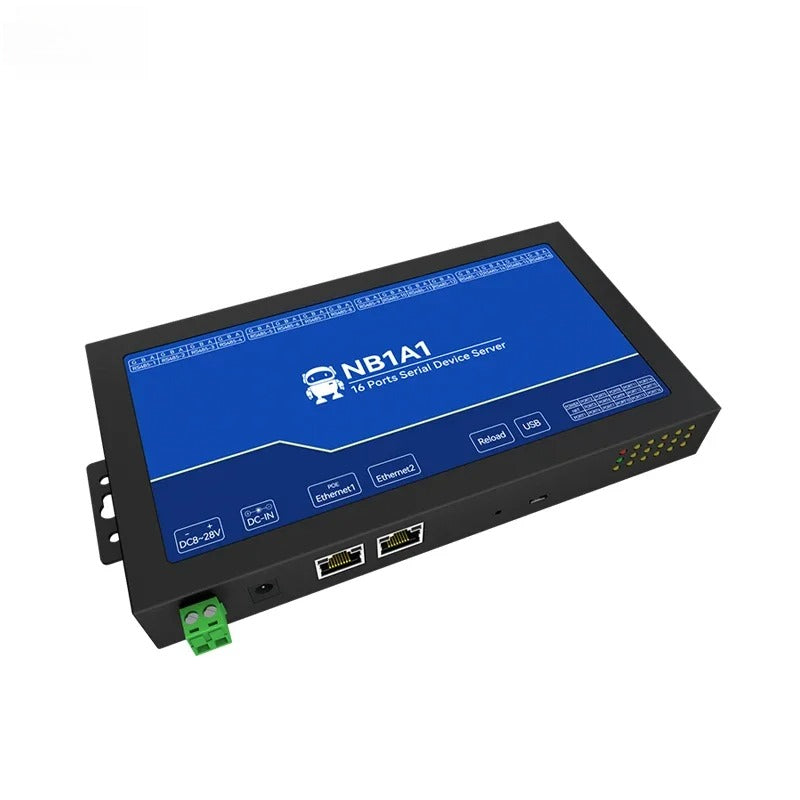

Isolated 16 Way Serial Port Server RS485 RJ45 NB1A1 TCP UDP Modbus TCP to RTU Storage Configuration Gateway MQTT HTTP

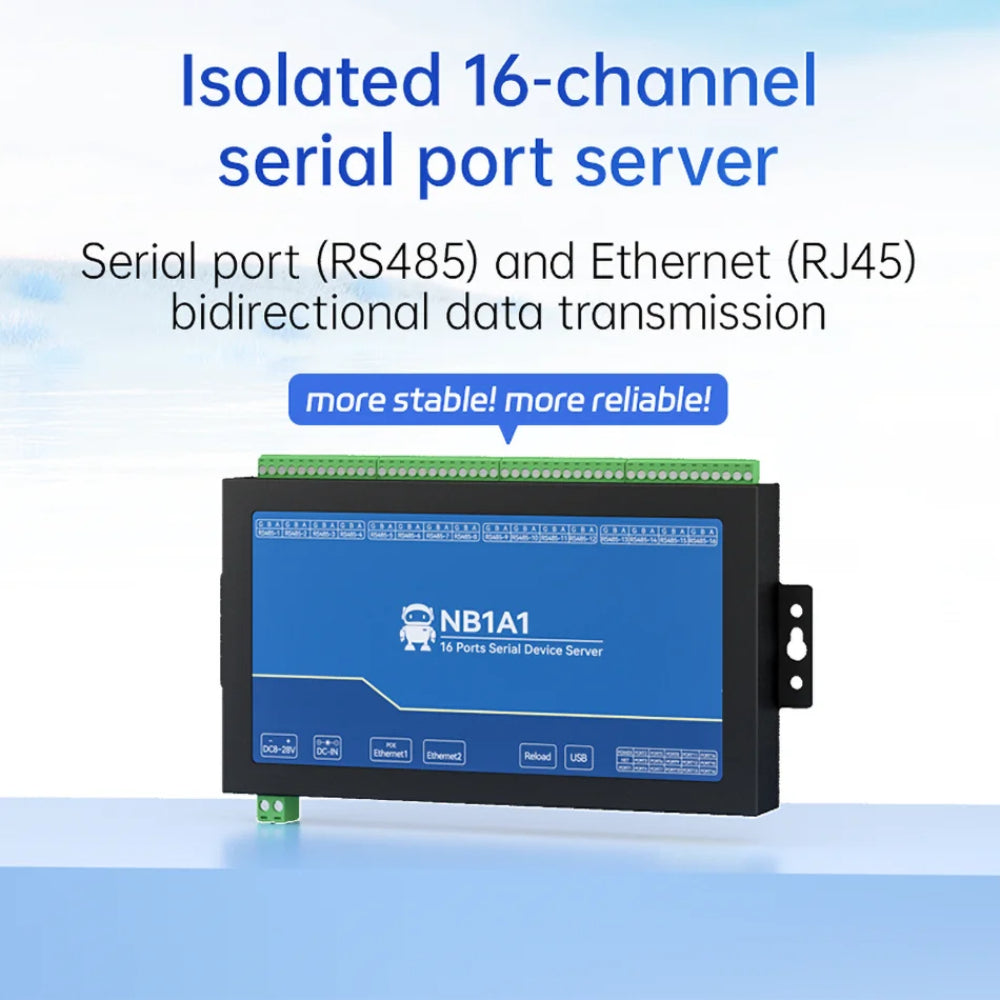

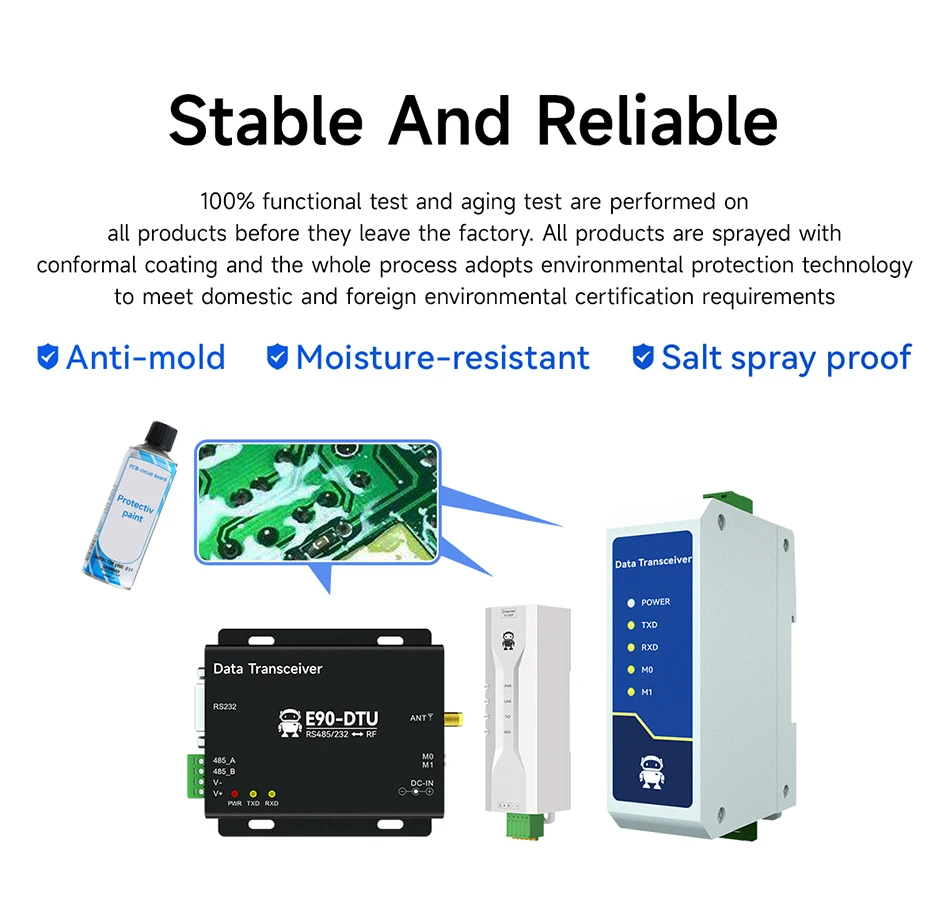

NB1A1 is a series of serial server products, which can realize two-way transparent transmission of data from 16-channel serial port to Ethernet port. The shell adopts three-proof coating, which is Anti-Fungal, Anti-Humidity, and Anti-Salt Spray. Supports Modbus protocol conversion, multi-host gateway, storage gateway and other data conversion functions. At the same time, it also supports uploading on-site data to the cloud server to realize the cloud monitoring function.

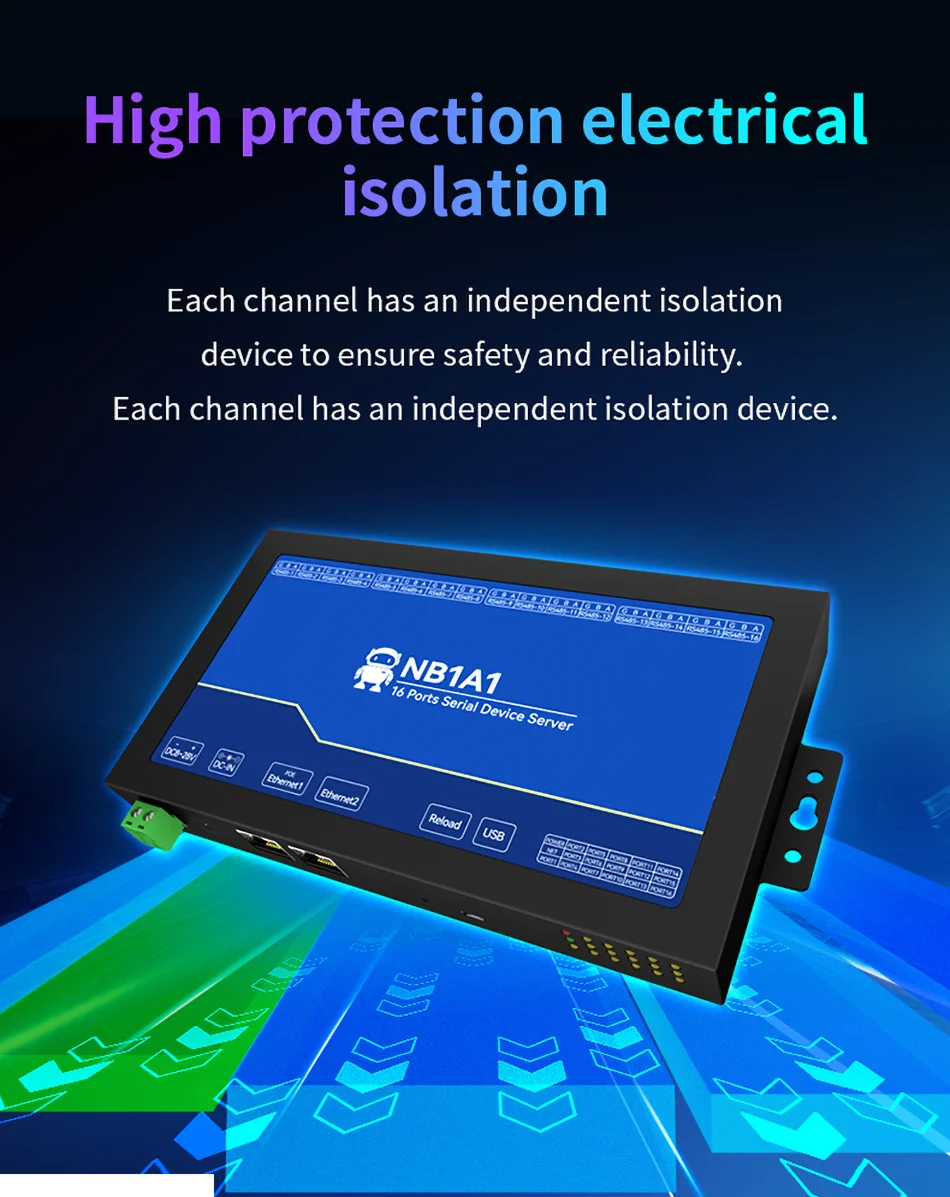

• Industrial design is stable and reliable, port isolation protection design;

• 16 independent RS485 ports are supported.

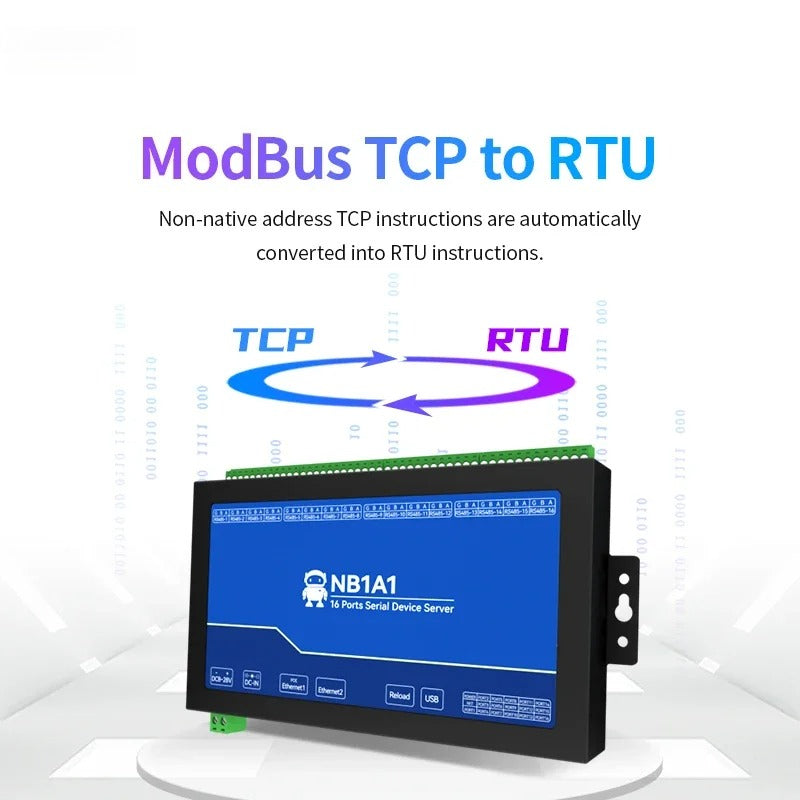

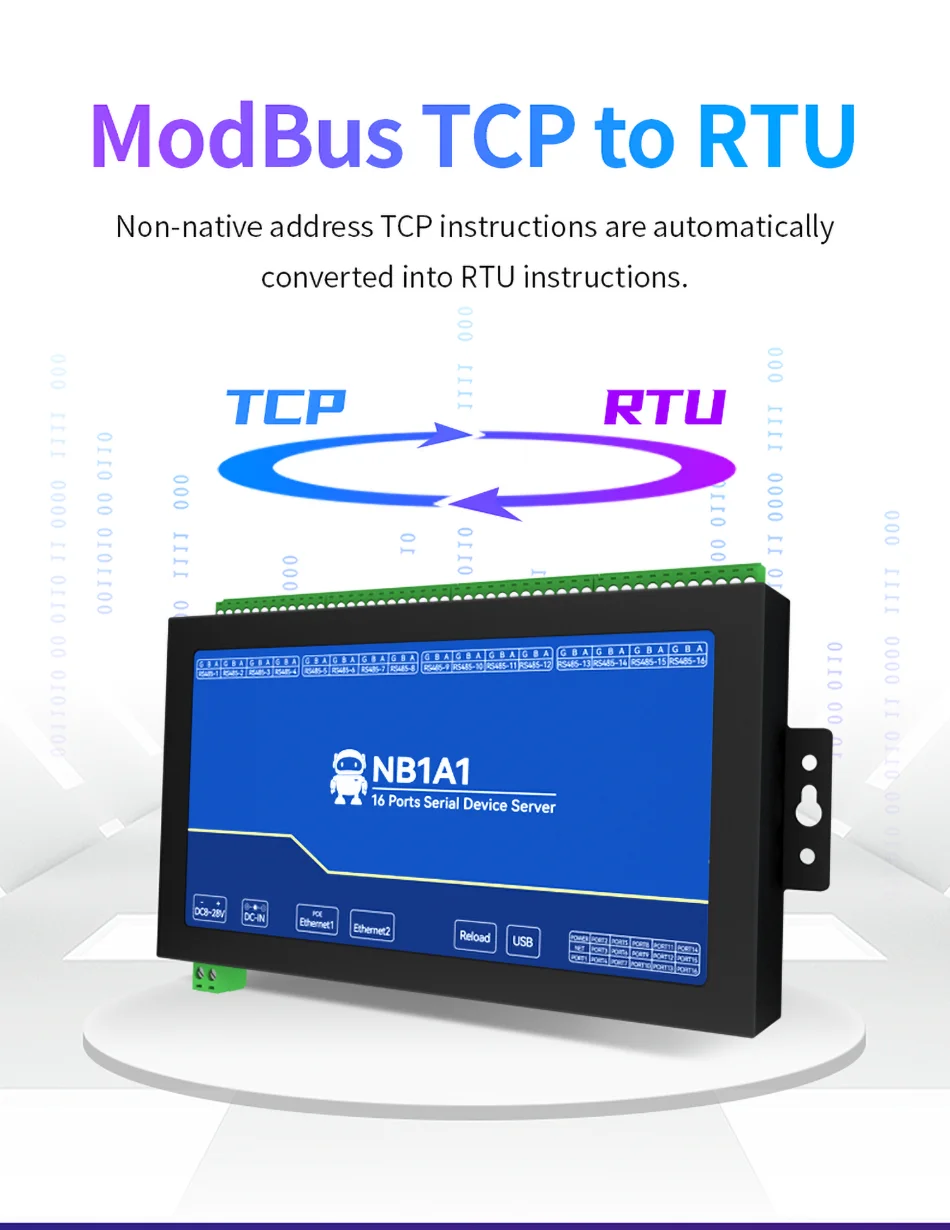

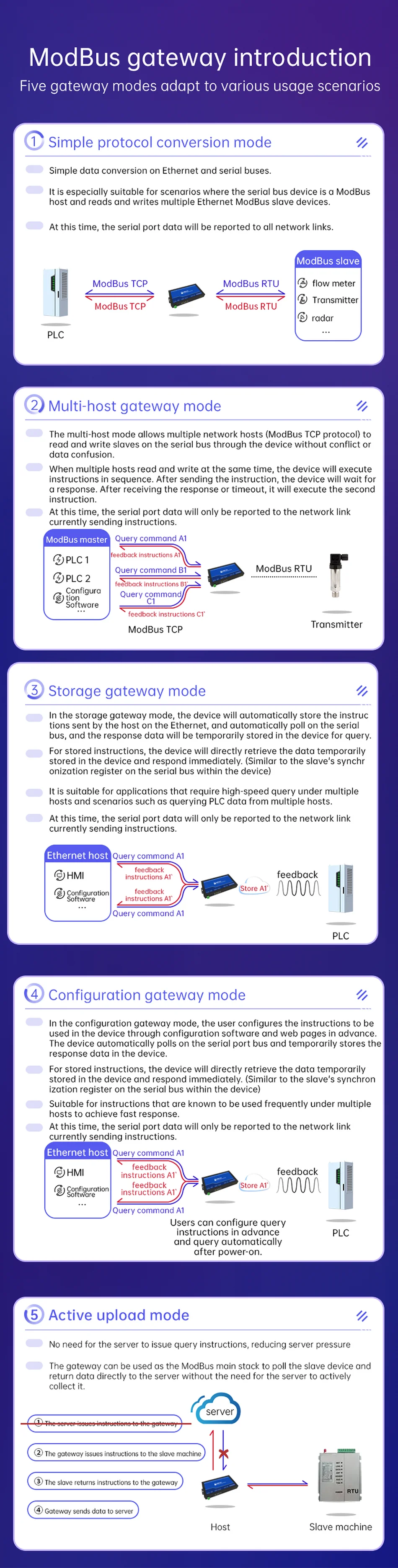

• Support a variety of Modbus gateway modes, multi-host, storage, configurable gateway;

• Supports active ModBus data reporting.

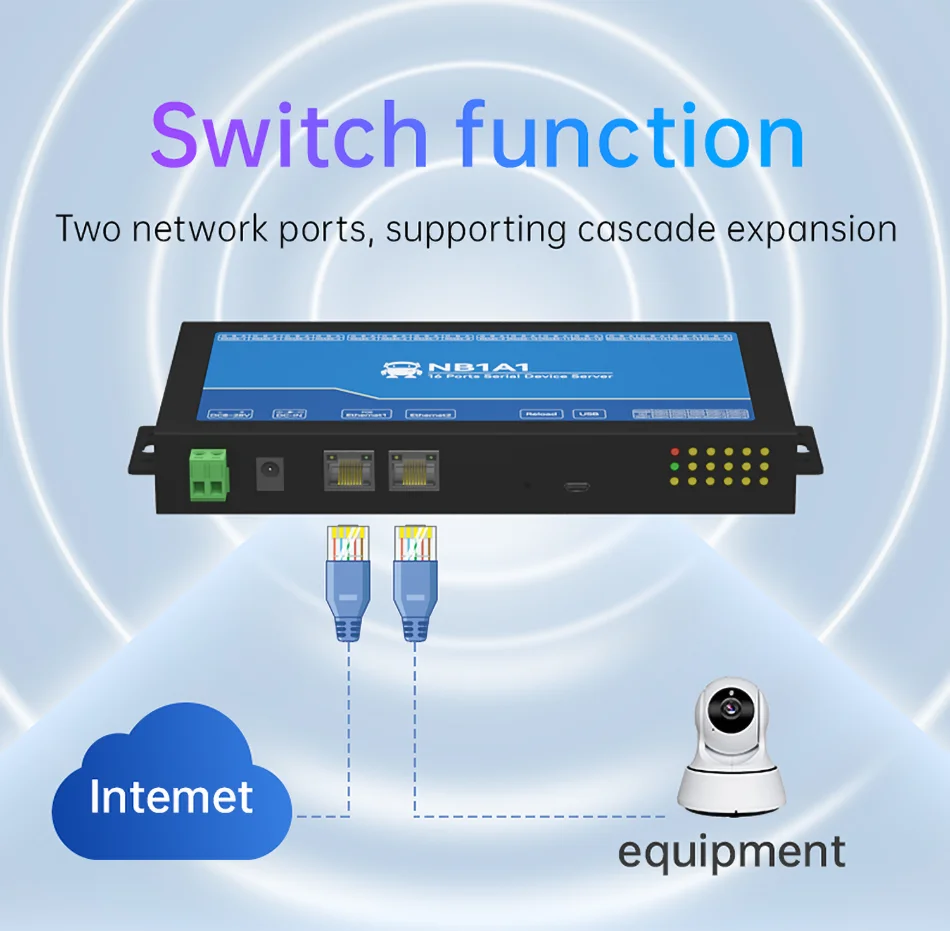

• Supports two network ports and switch cascading.

• Supports POE power supply；

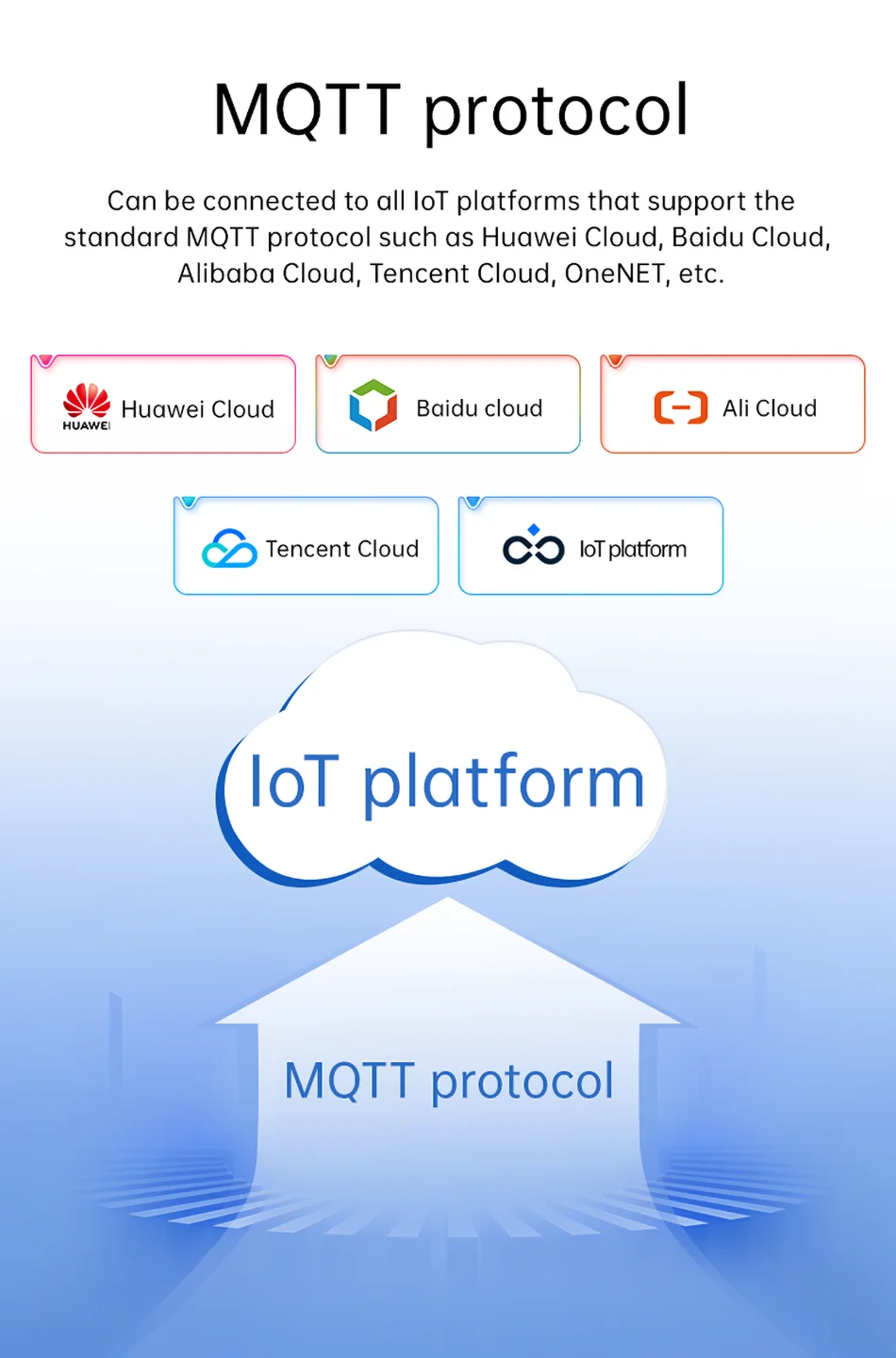

• Support access standard MQTT, OneNET, Baidu Cloud, Huawei Cloud, Alibaba Cloud;

• Rich LED status indicator, real-time indication of equipment working status;

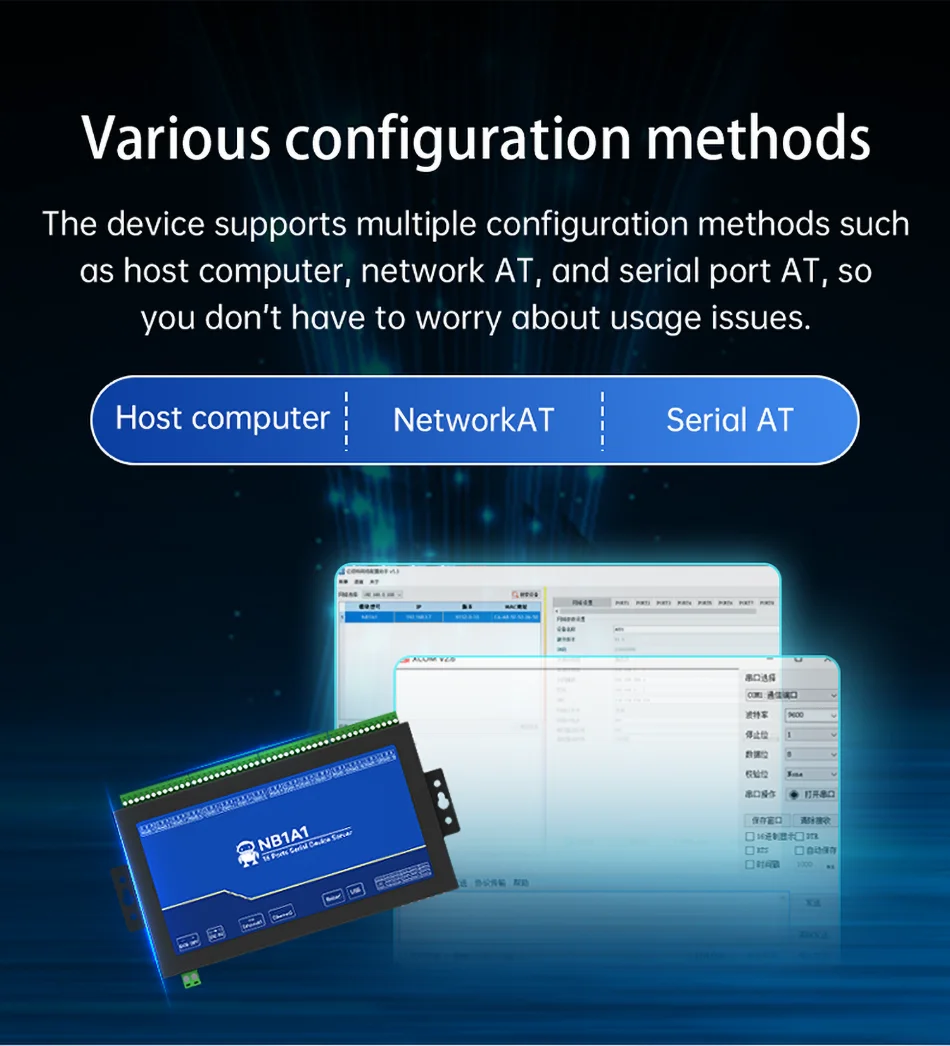

• Support host computer, AT command configuration and other configuration methods;

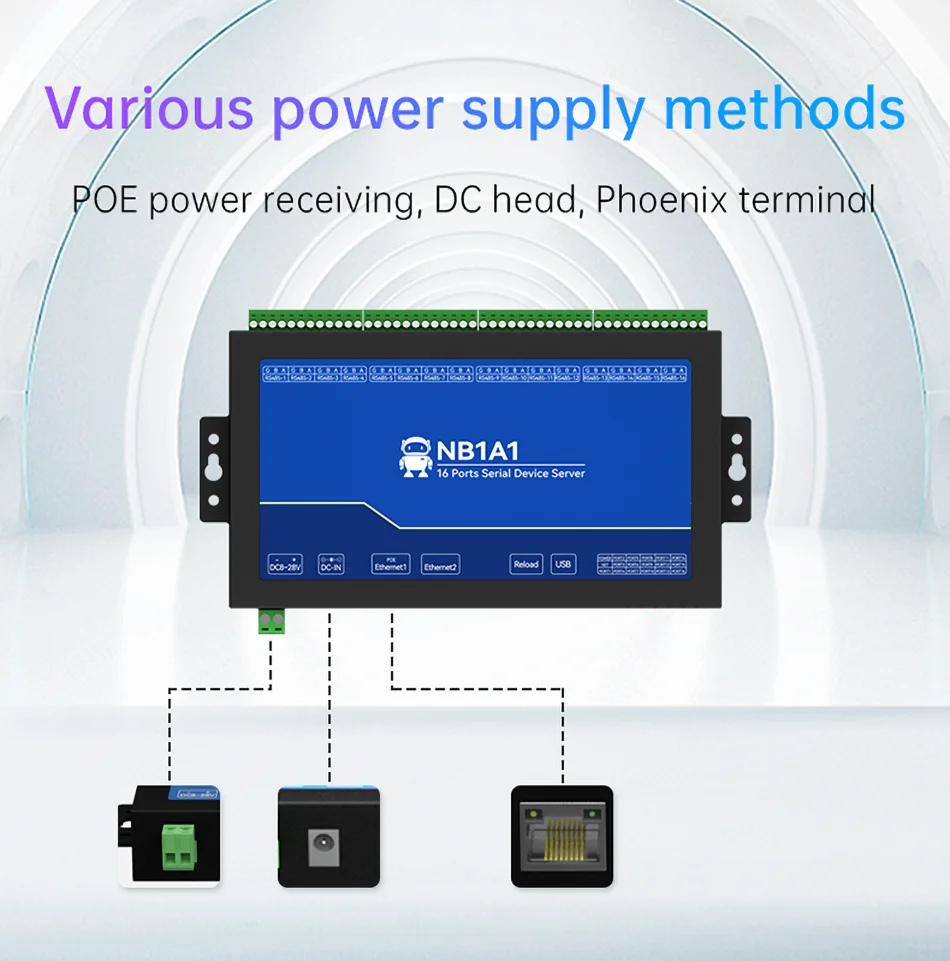

• Support terminal or DC head power supply, 8-28V DC wide voltage input, support reverse
• protection;

• The baud rate ranges from 1200 to 460800bps；

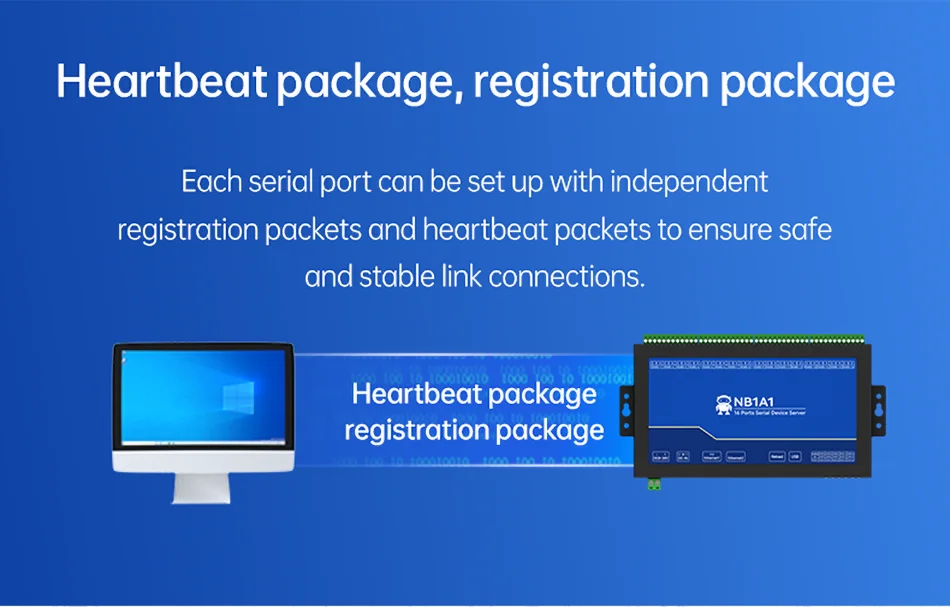

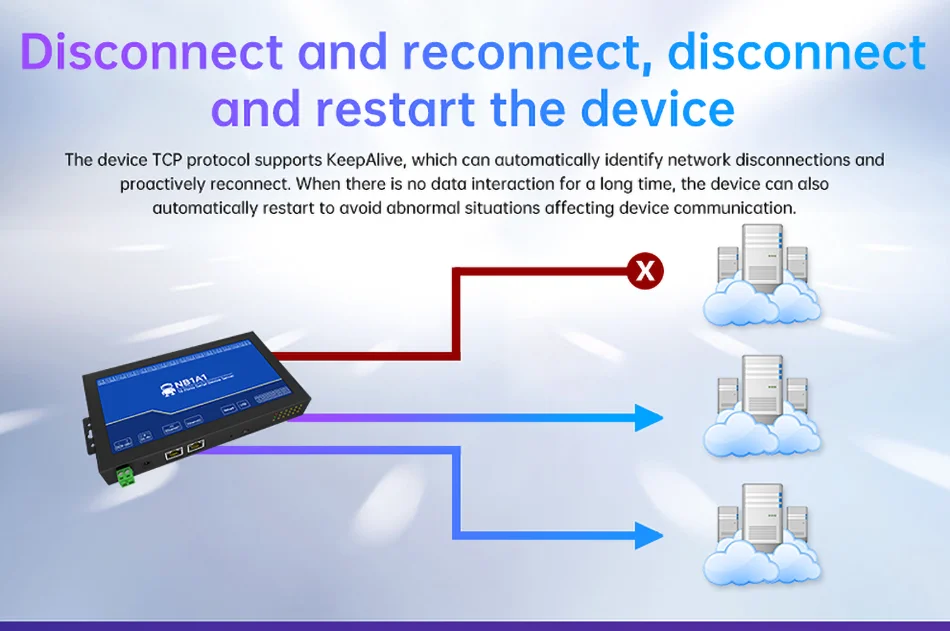

• Supports serial heartbeat packets, network heartbeat packets, and registration packets.

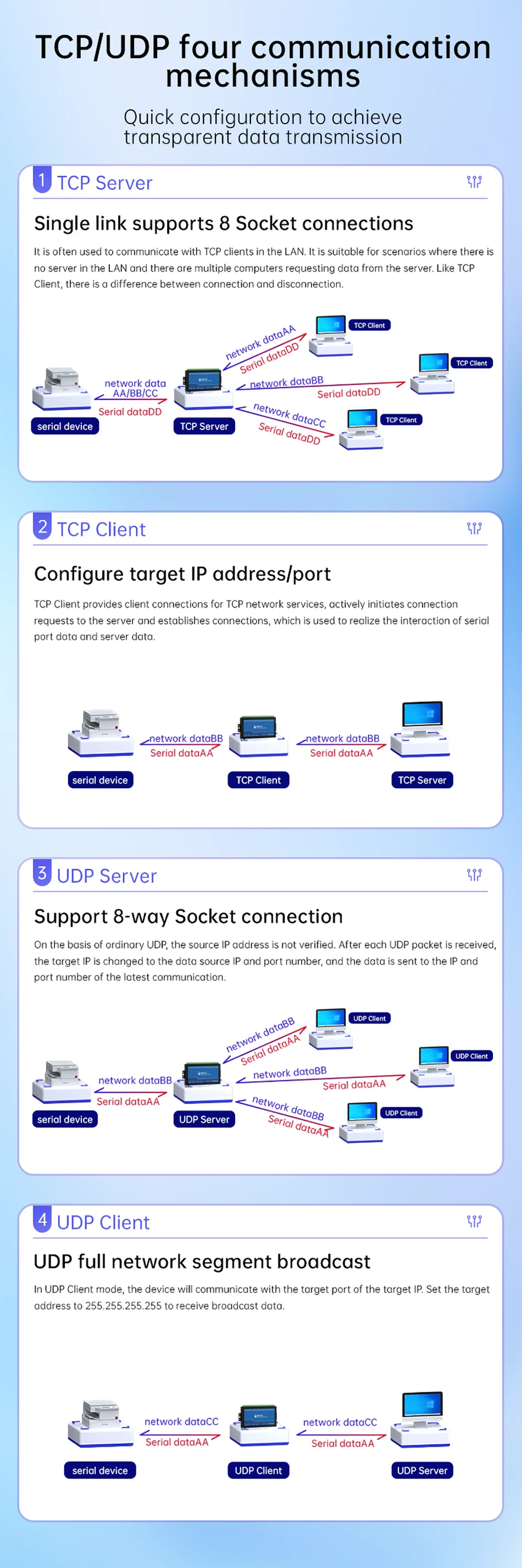

• Each way supports working modes: TCP client, TCP server, UDP client, UDP server, MQTT
• client, HTTP client;

• 16 servers can be enabled at the same time, and each server supports eight clients.

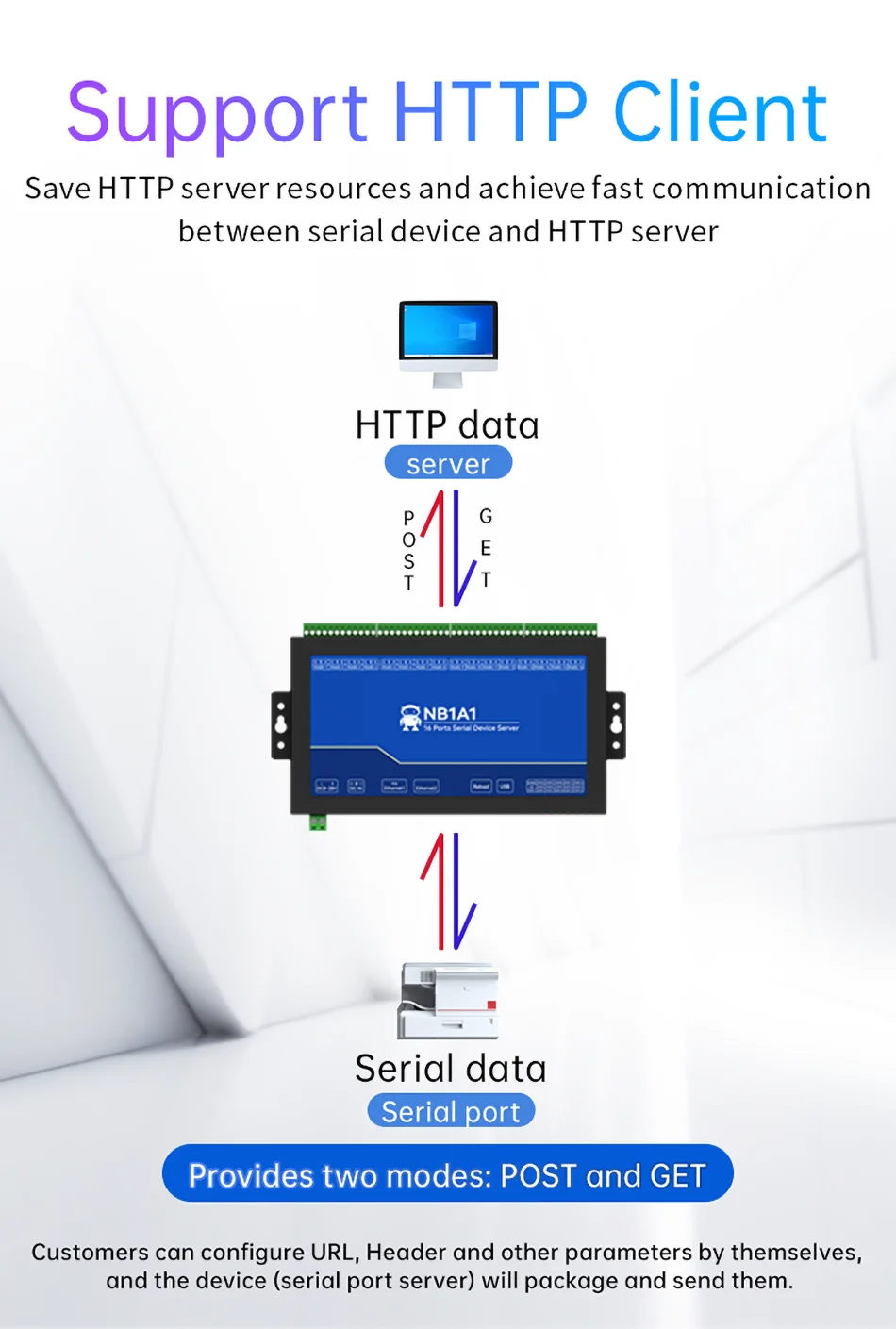

• supports HTTP client mode;

• Support remote upgrade, easy customization and optimization;

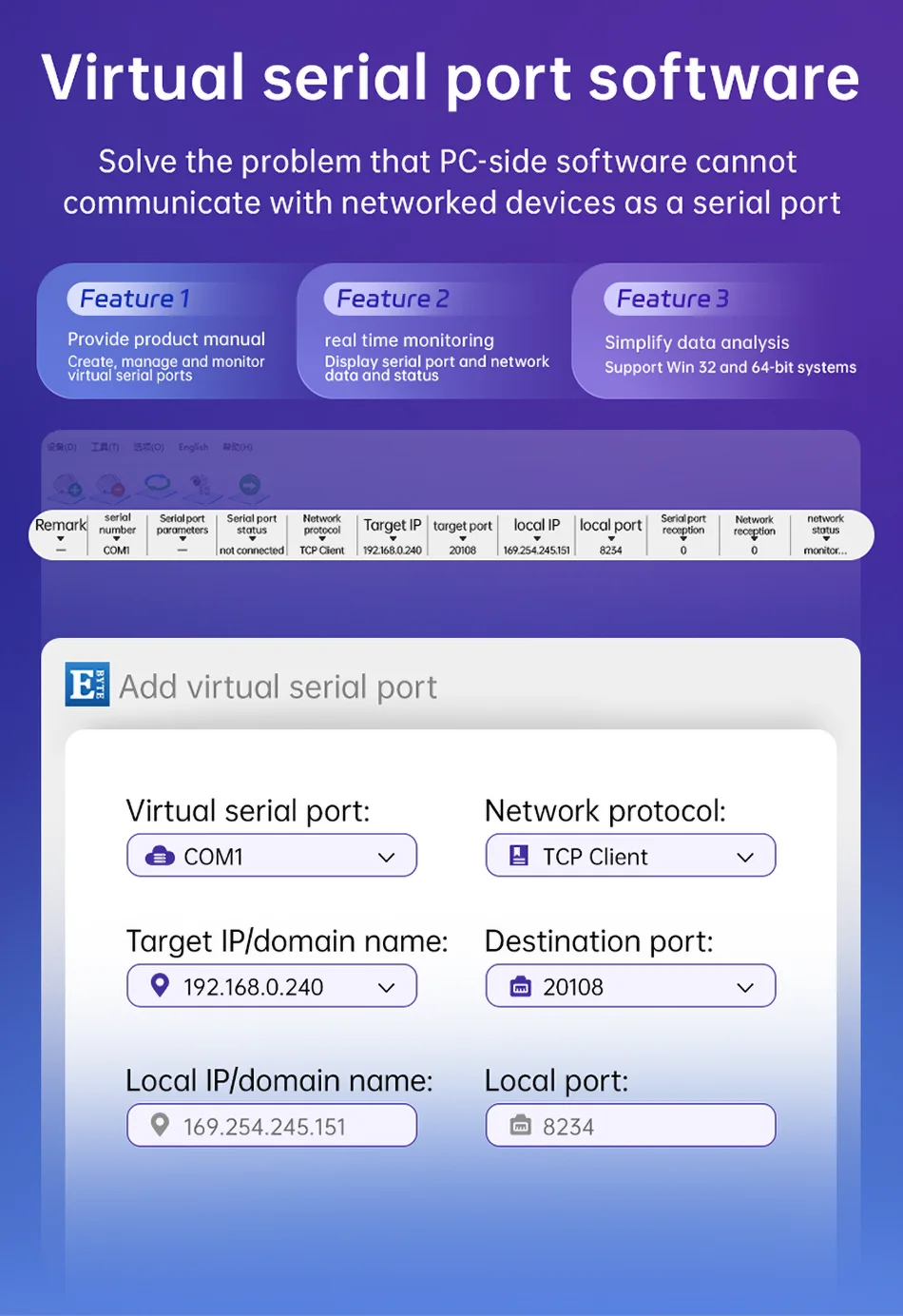

• Supports virtual serial port software.
