Cdsenet TX433-JZR-6 433MHz 2.5dBi Flexible Rubber Duck Antenna SMA-J
Cdsenet TX433-JZR-6 433MHz 2.5dBi Flexible Rubber Duck Antenna SMA-J
10000 in stock
Couldn't load pickup availability
SKU:tx433-jzr-6
Product Overview
The TX433-JZR-6 is a versatile 433MHz omnidirectional rubber duck antenna, specifically designed for high-efficiency Sub-1GHz wireless communication. Featuring a 2.5 dBi peak gain and a flexible 90-degree folding structure, it offers excellent signal coverage and mechanical durability. Encased in high-elasticity rubber material, it is built to withstand industrial environments, making it ideal for LoRa, wireless modules, and remote control systems.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 410 - 450 MHz (Center 433MHz) |
| Peak Gain | 2.5 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |
| Antenna Height | 165 mm (Straight) |
| Impedance | 50 Ω |
| Radome Material | Flexible Rubber (TPE) |
Product Details

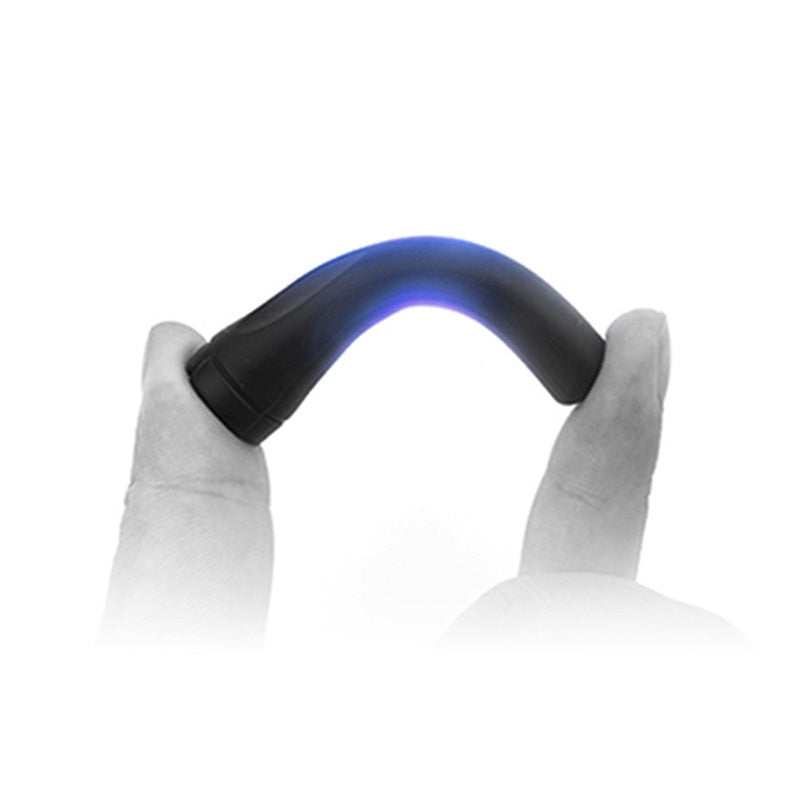

Flexible Folding Design
The antenna features a 90-degree rotatable joint, allowing for easy adjustment and space-saving integration into portable or fixed wireless equipment.
Standard SMA-J Interface
High-quality nickel-plated SMA male connector with gold-plated pins ensures low signal loss and reliable connectivity for long-term use.
Professional Test Report
Verified with Agilent E5071C: VSWR consistently measured at ≤ 1.5 @ 433MHz for stable wireless link quality.
Ideal Applications
Industrial LoRa Gateways
Reliable signal transmission for long-range IoT networks and outdoor monitoring nodes.
Remote Control Systems
Ideal for 433MHz wireless controllers, security systems, and smart garage doors.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this antenna compatible with Lora modules?
A: Yes, it is fully compatible with any 433MHz wireless device that features an SMA Female (SMA-K) interface.
Q: Can I bend the antenna at any angle?
A: The joint supports 0-degree (straight) and 90-degree folding positions to suit your installation needs.
