Cdsenet TX433-JZG-6 433MHz 2.5dBi Gain Omnidirectional Antenna SMA-J
Cdsenet TX433-JZG-6 433MHz 2.5dBi Gain Omnidirectional Antenna SMA-J
10000 in stock
Couldn't load pickup availability
SKU:tx433-jzg-6
Product Overview
The TX433-JZG-6 is a professional-grade 433MHz omnidirectional rubber rod antenna, engineered for stable Sub-1GHz wireless communication. Featuring a 2.5 dBi peak gain and a precision-tuned copper radiator, it significantly enhances signal range. Encased in high-quality TPE material, it ensures reliable performance for industrial LoRa, smart metering, and remote control environments.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 410 - 450 MHz (Center 433MHz) |
| Peak Gain | 2.5 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |
| Antenna Height | 160 mm |
| Impedance | 50 Ω |
| Polarization | Vertical |
Product Details

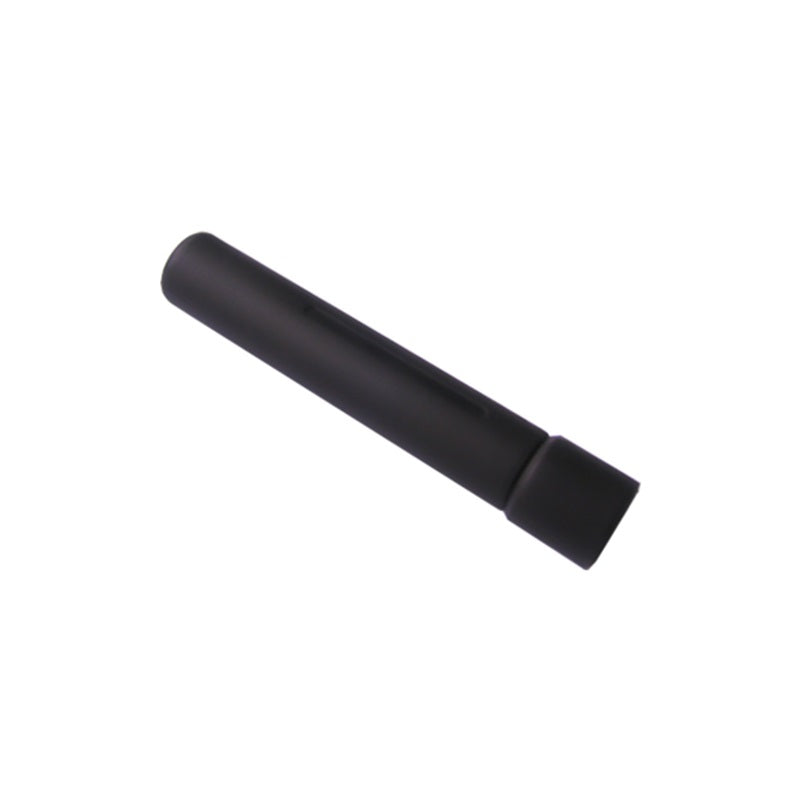

Straight Rod Design
The sleek, straight-rod structure is designed for vertical installation, providing a stable 360-degree radiation pattern for uniform signal coverage.
Standard SMA-J Interface
Equipped with a precision nickel-plated copper SMA-J connector, ensuring a secure and low-loss connection to various 433MHz wireless modules.
Professional Test Report
Verified with Agilent E5071C: VSWR measured at ≤ 1.5 @ 433MHz, ensuring peak power transmission efficiency.
Ideal Applications
LoRa & IoT Networks
Ideal for long-range sensor nodes and industrial wireless gateways.
Smart Agriculture
Robust signal for outdoor soil monitoring and remote irrigation systems.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this antenna compatible with all 433MHz modules?
A: Yes, it works with any device that has a standard SMA Female (SMA-K) socket.
Q: Can it be used outdoors?
A: The TPE material is durable, but for permanent outdoor installations, ensure the SMA connector is properly sealed against moisture.
