Cdsenet TX433-JZ-10 433MHz 3.0dBi High Gain Rubber Antenna SMA-J
Cdsenet TX433-JZ-10 433MHz 3.0dBi High Gain Rubber Antenna SMA-J
10000 in stock
Couldn't load pickup availability
SKU:tx433-jz-10
Product Overview
The TX433-JZ-10 is a professional-grade 433MHz omnidirectional rubber duck antenna, specifically designed for high-performance Sub-1GHz wireless communication. Featuring a 3.0 dBi peak gain and a precision-engineered radiator, it significantly enhances signal range and penetration for LoRa and RF applications. Encased in durable, flexible TPE material, it ensures reliable connectivity for both industrial IoT gateways and smart metering systems.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 410 - 450 MHz (Center: 433MHz) |
| Peak Gain | 3.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |

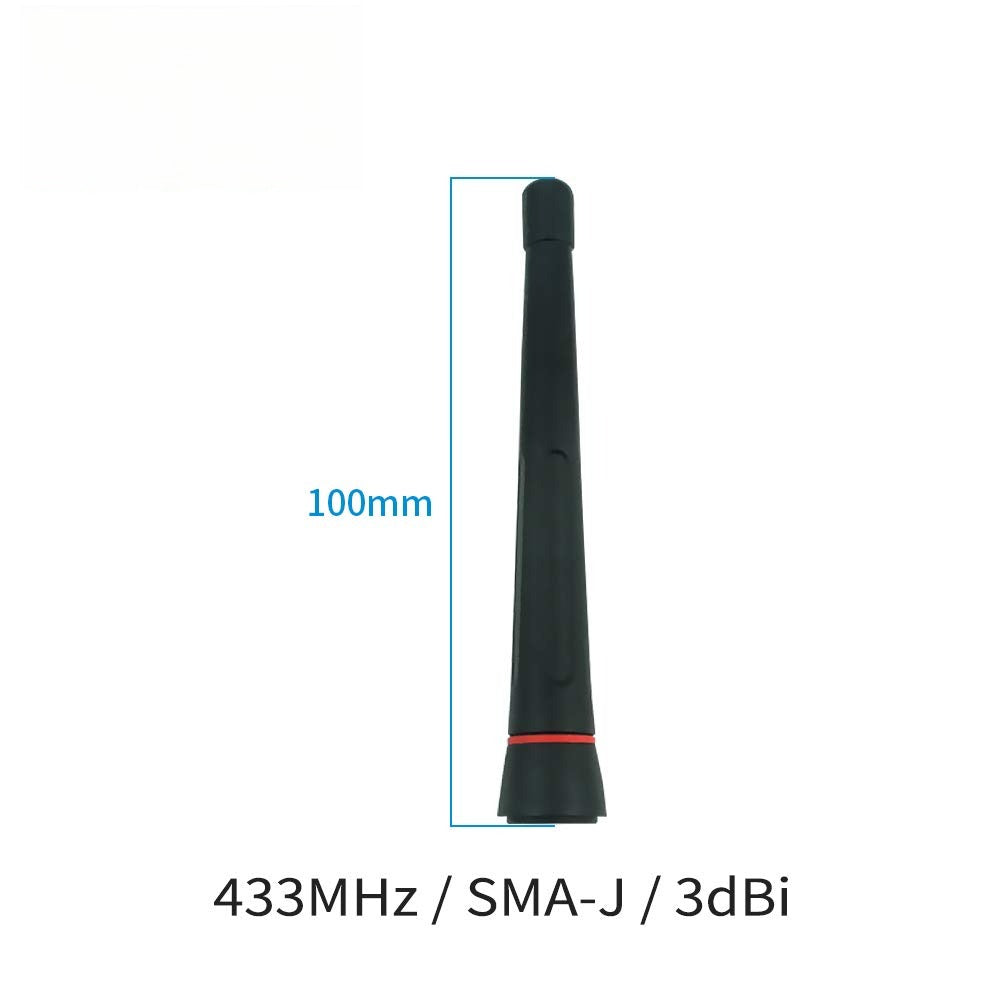

| Antenna Height | 100 mm |
| Impedance | 50 Ω |
| Radome Material | TPE (Flexible Rubber) |
| Polarization | Vertical |

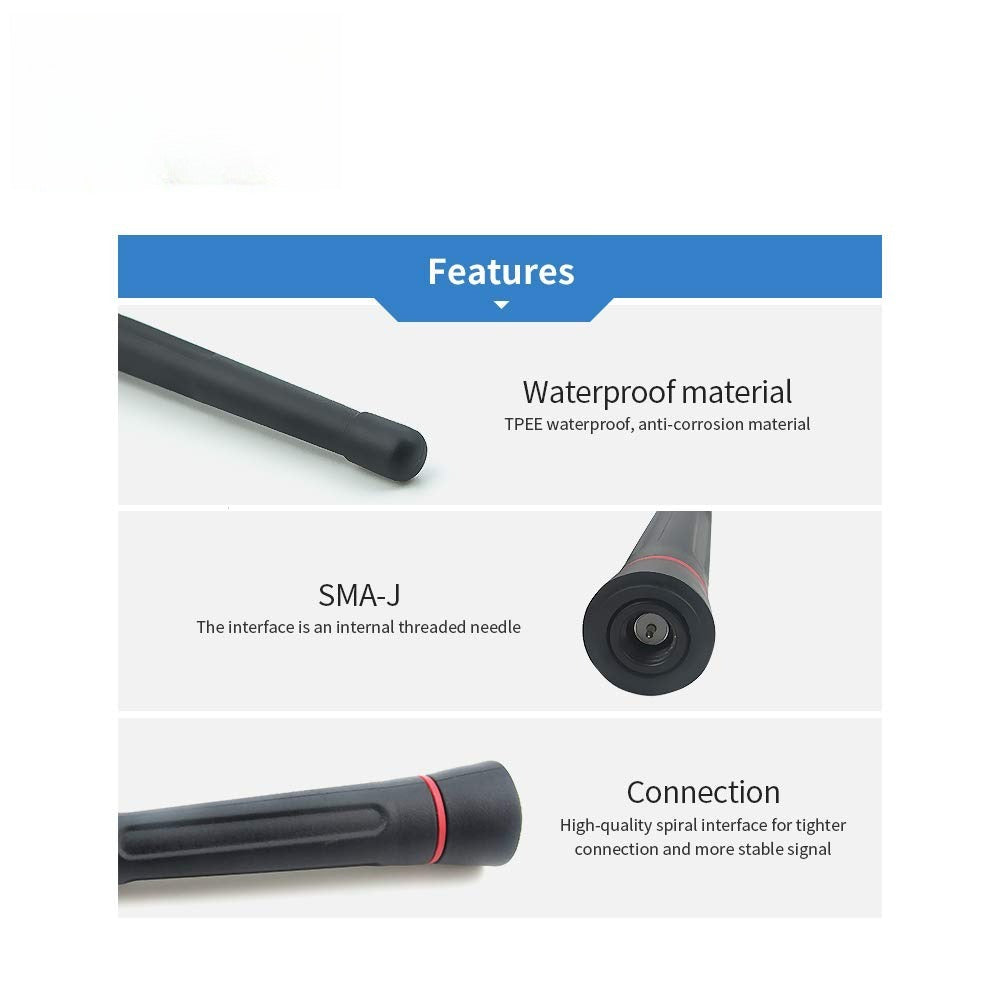

Product Details
Flexible Rubber Construction
Manufactured with high-toughness TPE material, the antenna is bendable and resistant to mechanical stress, making it ideal for portable devices.
Premium SMA-J Connector
Equipped with a gold-plated copper pin and nickel-plated body to ensure low signal loss and excellent durability against oxidation.

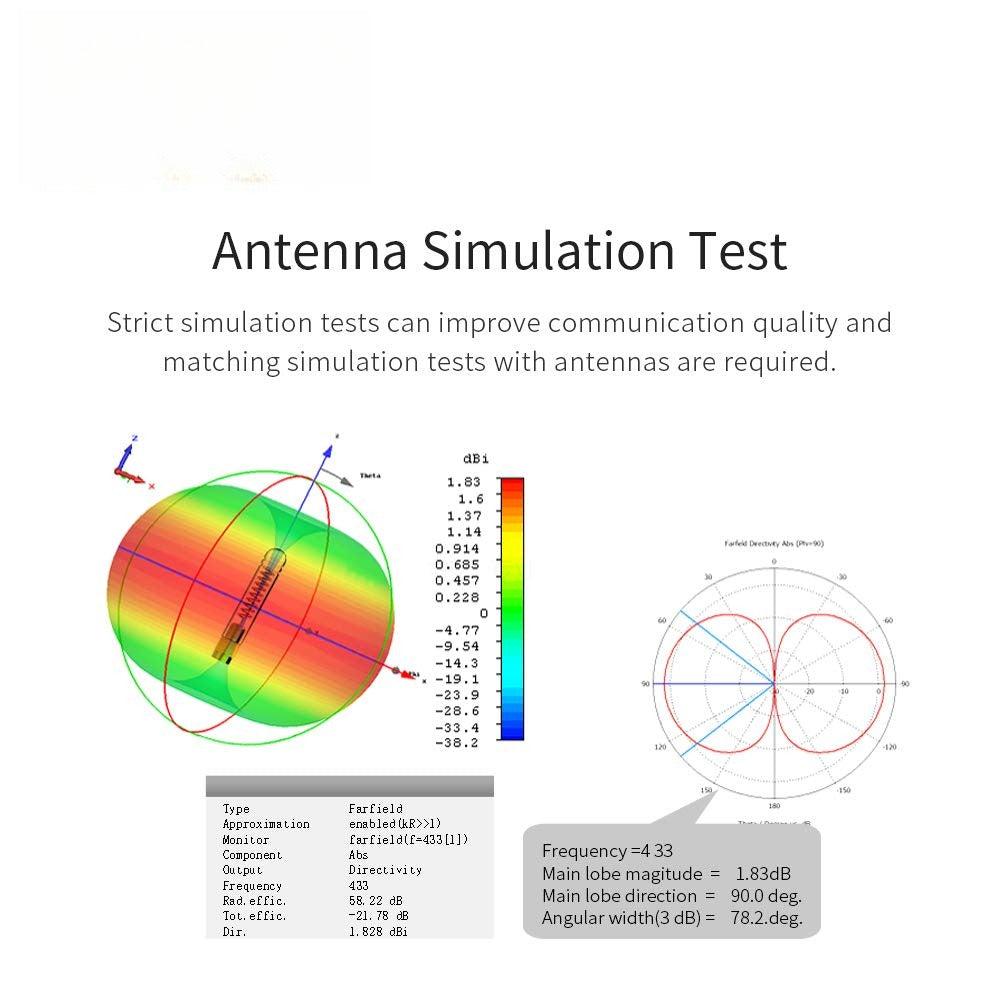

Professional Test Report
Verified with Agilent E5071C: The TX433-JZ-10 maintains a VSWR ≤ 1.5 at 433MHz, ensuring peak power efficiency.
Ideal Applications
Industrial Data Acquisition
Perfect for long-range SCADA systems and wireless sensor networks in factories.
Smart Utilities
Ensures reliable signal transmission for remote water and electricity meter reading.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this antenna compatible with all 433MHz modules?
A: Yes, it is compatible with any wireless device featuring a standard SMA Female (SMA-K) interface.
Q: Can it be used outdoors?
A: TPE is weather-resistant; however, for permanent outdoor installation, we recommend sealing the connector base with waterproof tape.
