Cdsenet TX2400-XPH-300 2.4GHz 8dBi High-Gain Suction Cup Antenna
Cdsenet TX2400-XPH-300 2.4GHz 8dBi High-Gain Suction Cup Antenna
10000 in stock
Couldn't load pickup availability
SKU:tx2400-xph-300
Product Overview
The TX2400-XPH-300 is a high-performance 2.4GHz omnidirectional suction cup antenna, specifically designed for long-range and high-stability wireless data transmission. Boasting a 8.0 dBi high gain and a 435mm stainless steel radiator, it offers exceptional signal sensitivity and penetration. Equipped with a strong 90mm magnetic base and a 3-meter low-loss feeder, it is the ideal solution for vehicle-mounted systems, industrial IoT gateways, and wireless telemetry environments.

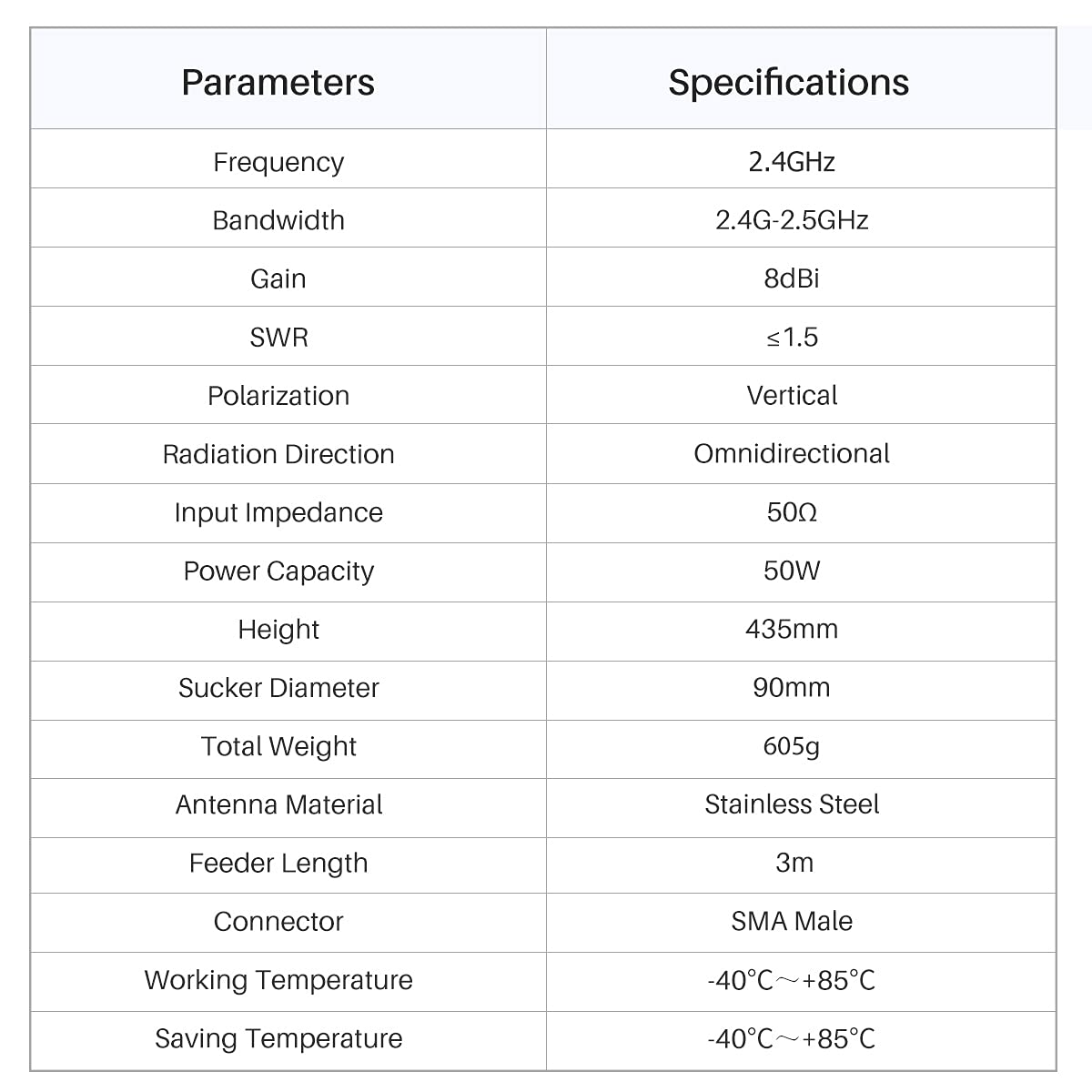

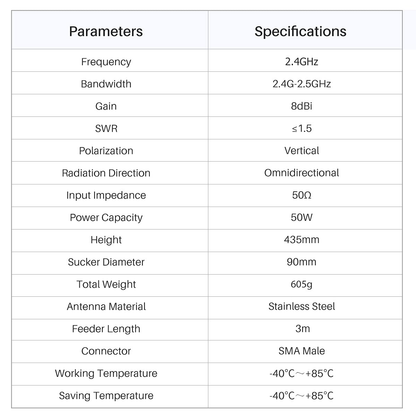

Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 2400 - 2500 MHz (2.4GHz) |
| Peak Gain | 8.0 dBi |
| VSWR | ā¤ 1.5 |
| Connector Type | SMA-J (SMA Male) |

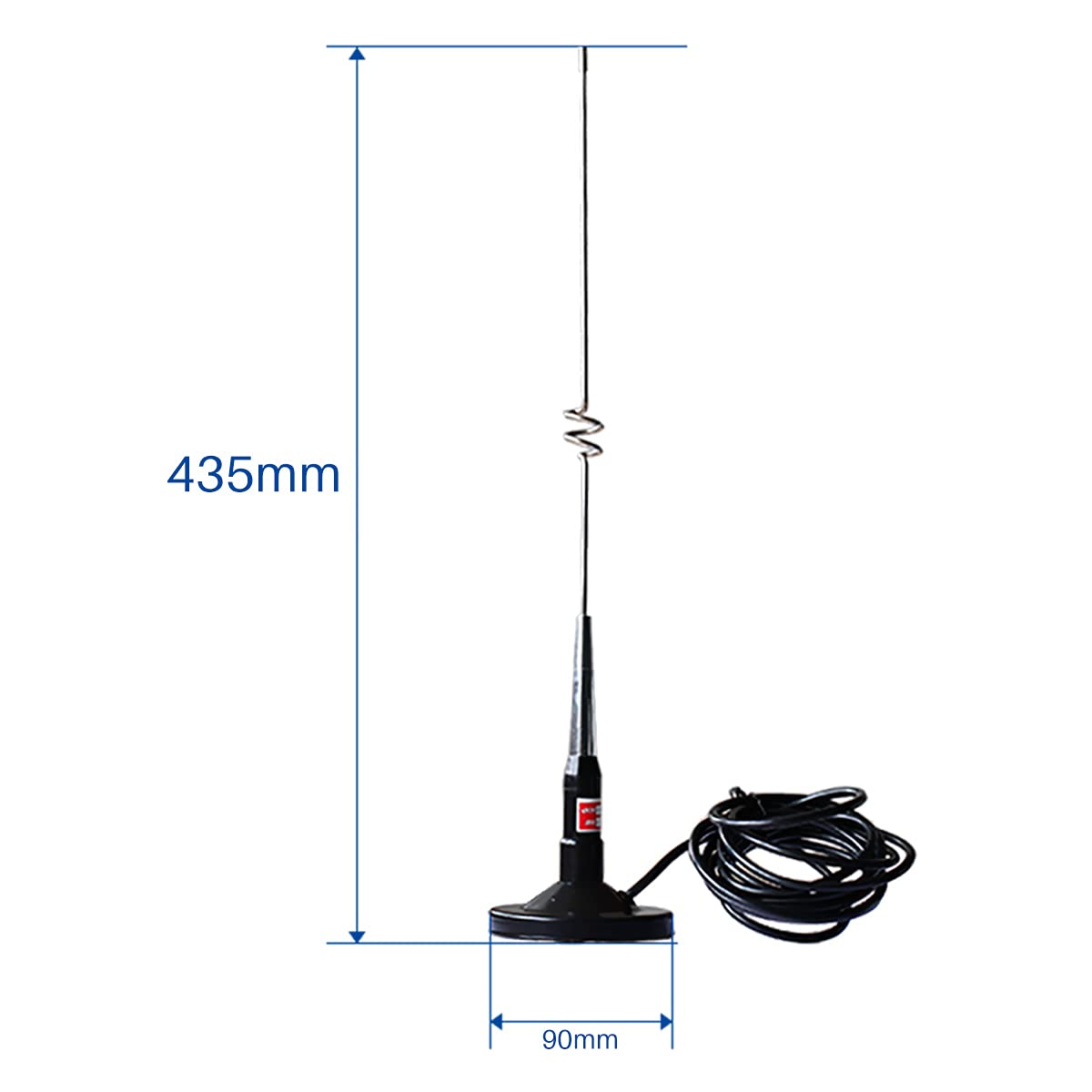

| Antenna Height | 435 mm |
| Feeder Length | 3.0 Meters (RG174) |
Product Details

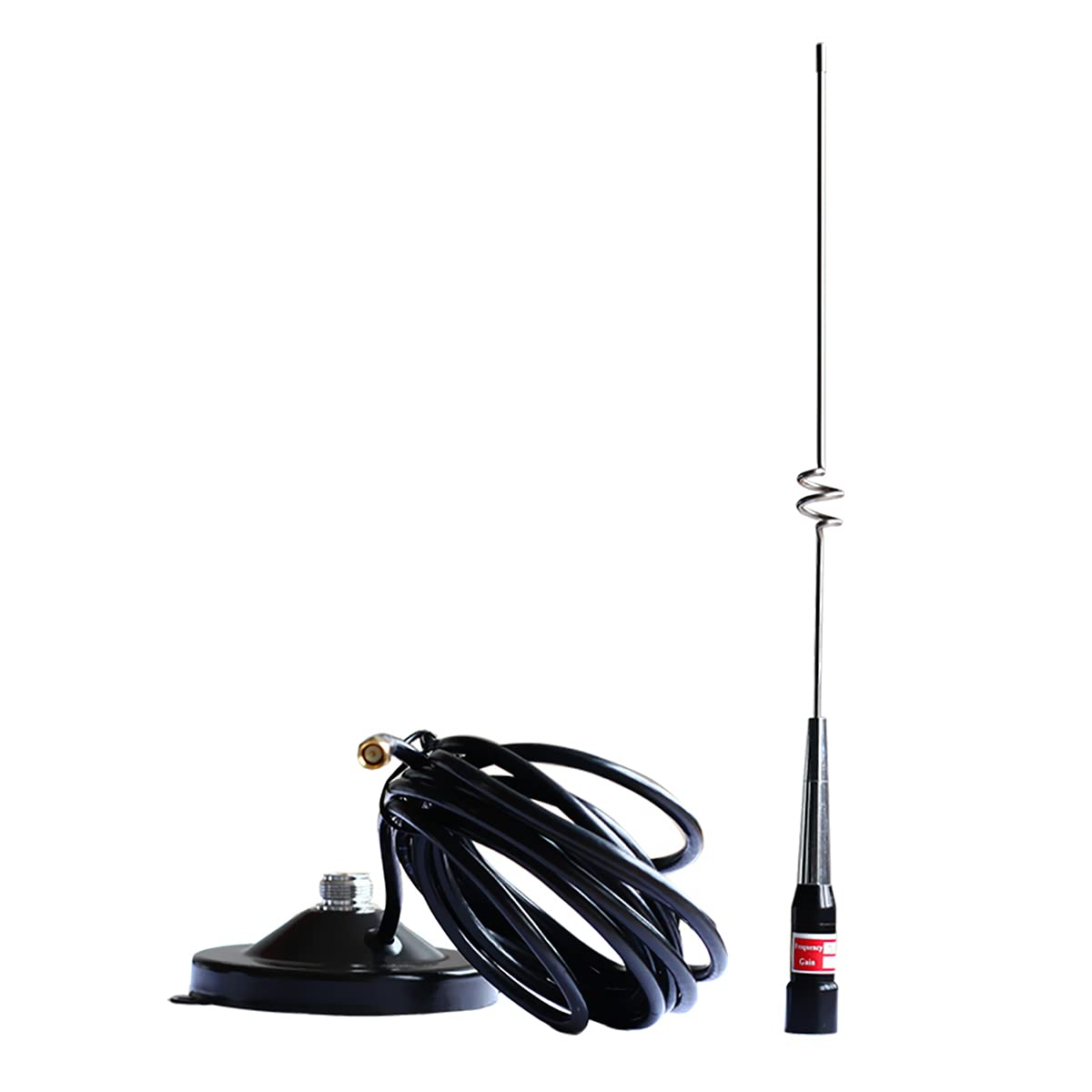

Industrial-Grade Stainless Steel Radiator
The radiator is crafted from high-quality stainless steel, ensuring durability and consistent performance in harsh outdoor or industrial environments. The 8dBi gain provides significant range improvement for 2.4GHz modules.

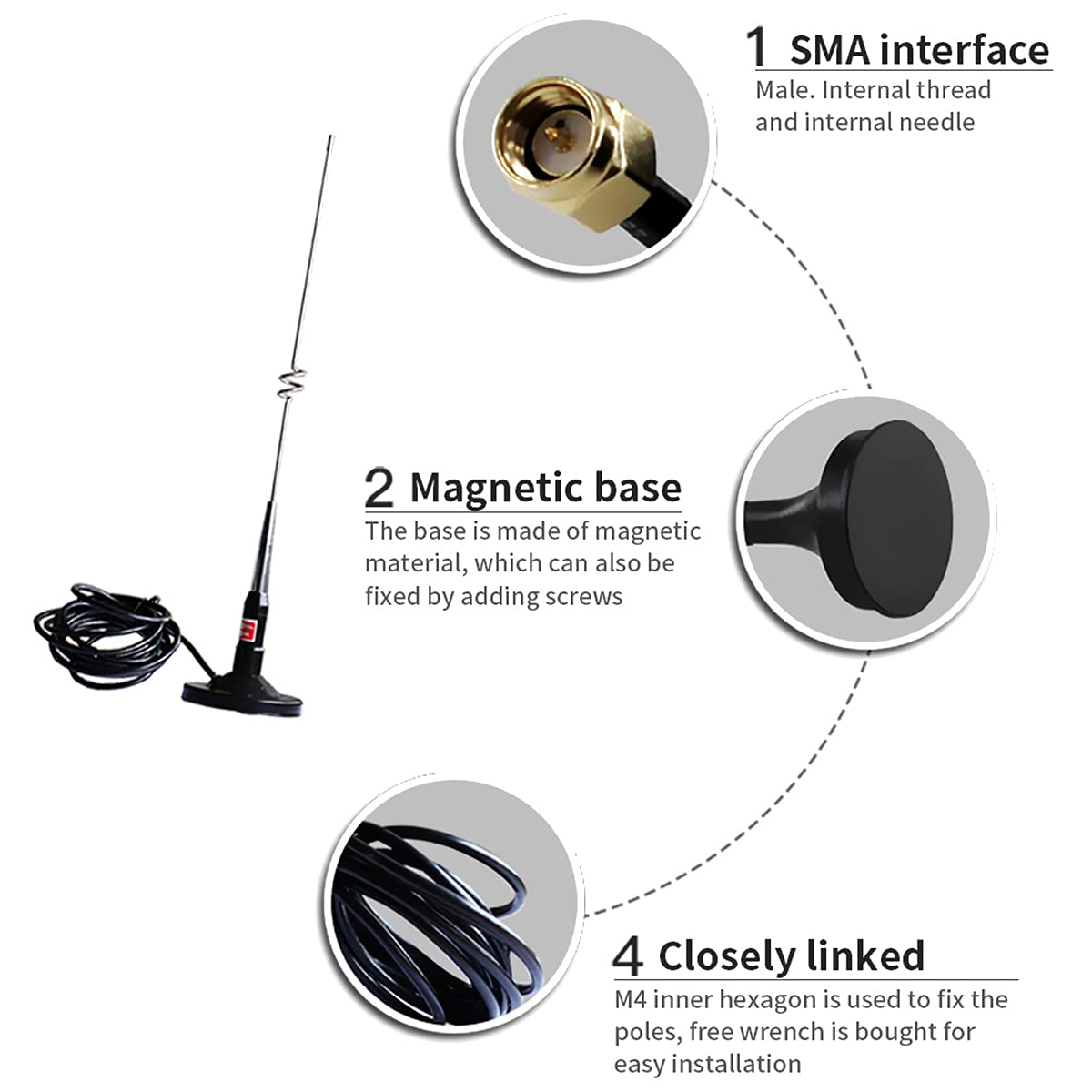

90mm Super-Strong Magnetic Base
Equipped with a large 90mm diameter sucker base. The powerful magnetic force allows the antenna to be securely mounted on any metal surface, such as vehicle roofs or industrial cabinets, ensuring zero displacement during vibration.
Professional Test Report
Precision verified with Agilent E5071C: The VSWR is maintained under 1.5 across the full 2400-2500MHz band for optimal power efficiency.
Ideal Applications
Industrial & Vehicle Data
Reliable 2.4GHz signal transmission for vehicle-mounted terminals and moving industrial machinery.
Smart City Infrastructure
Ideal for outdoor smart bins, charging piles, and vending machines requiring high-gain reception.
Resources
š Download Datasheet (PDF)FAQ
Q: Does this antenna require a ground plane?
A: Yes, suction cup antennas use the metal surface they are attached to as a ground plane. Mounting on a metal roof or cabinet will maximize the 8dBi gain performance.
Q: Is the 3-meter cable customizable?
A: The standard length is 3 meters to balance range and signal loss. For bulk industrial orders, custom lengths can be requested from Ebyte technical support.
