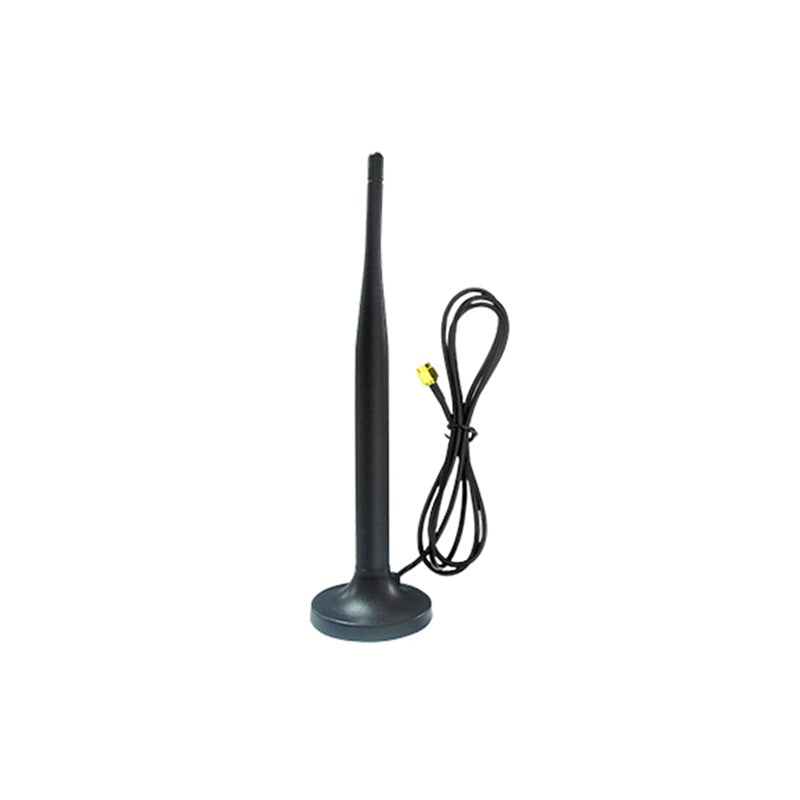

Cdsenet TX2400-XPFC-300 12dBi High-Gain 2.4GHz Suction Cup Antenna
Cdsenet TX2400-XPFC-300 12dBi High-Gain 2.4GHz Suction Cup Antenna
10000 in stock
Couldn't load pickup availability
SKU:tx2400-xpfc-300
Product Overview
The TX2400-XPFC-300 is an ultra-high gain 2.4GHz omnidirectional suction cup antenna, meticulously engineered for demanding wireless long-range communication. Featuring a massive 12.0 dBi peak gain and a 505mm high-efficiency radiator, it significantly extends signal range and overcomes environmental obstacles. Designed with a flexible suction cup base and a 3-meter low-loss feeder, it provides a stable and versatile solution for industrial gateways, smart agriculture, and vehicle-mounted applications.
Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 2400 - 2500 MHz (2.4GHz) |
| Peak Gain | 12.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |
| Feeder Length & Type | 300 cm (3 Meters) / RG174 |
| Height | ~505 mm |
Product Details

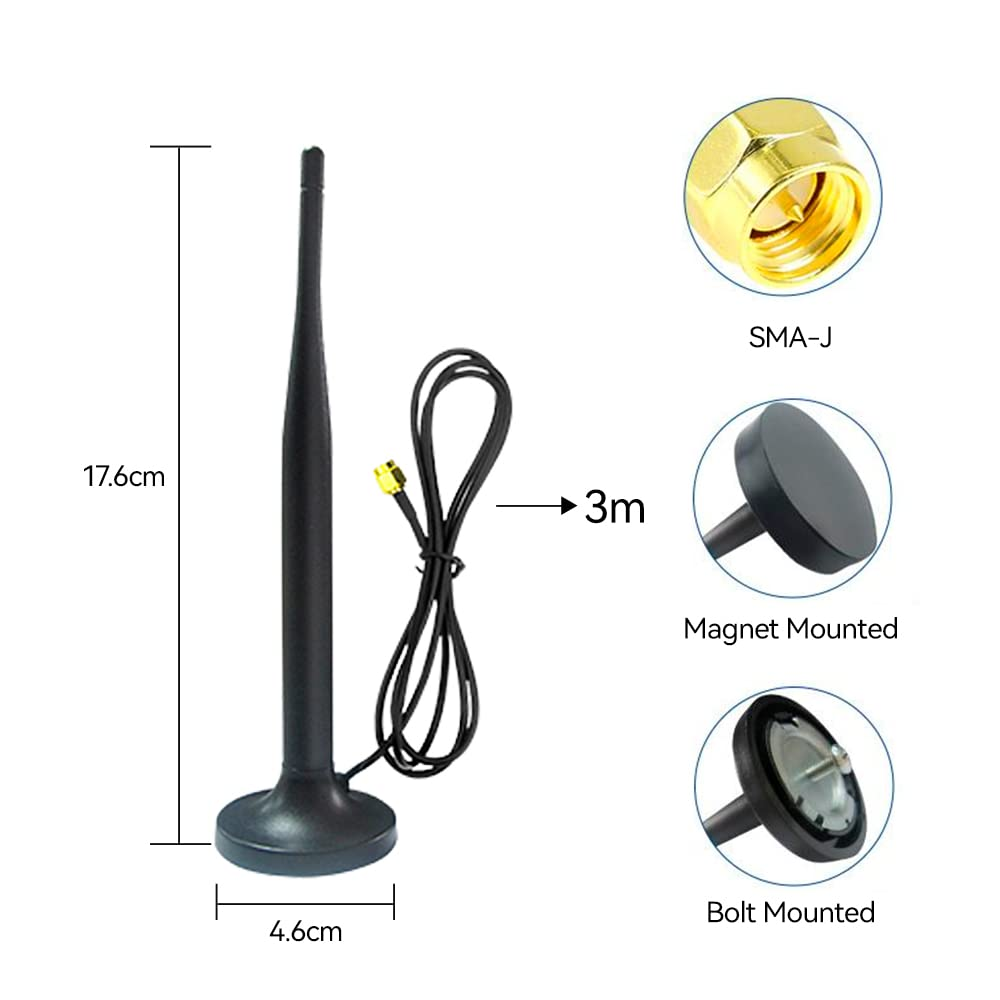

Flexible 90° Foldable Joint
Designed with a high-quality flexible joint, the antenna can be folded 90 degrees to adapt to limited spaces or specific installation angles without affecting signal integrity.
Strong Magnetic Base
The integrated magnetic suction base ensures firm attachment to any metal surface. It allows the antenna to be placed outside the equipment cabinet for optimal line-of-sight transmission.
Professional Test Report
Verified with Agilent E5071C: The VSWR is typically under 1.5 across the 2.4-2.5GHz band, ensuring maximum power transfer.
Ideal Applications
Industrial Automation
Enhancing WiFi and Bluetooth signals for industrial controllers and data acquisition terminals.
Remote Telemetry
Long-distance ZigBee and 2.4GHz sensor networks in smart farming or city lighting.
Resources
📄 Download Datasheet (PDF)FAQ

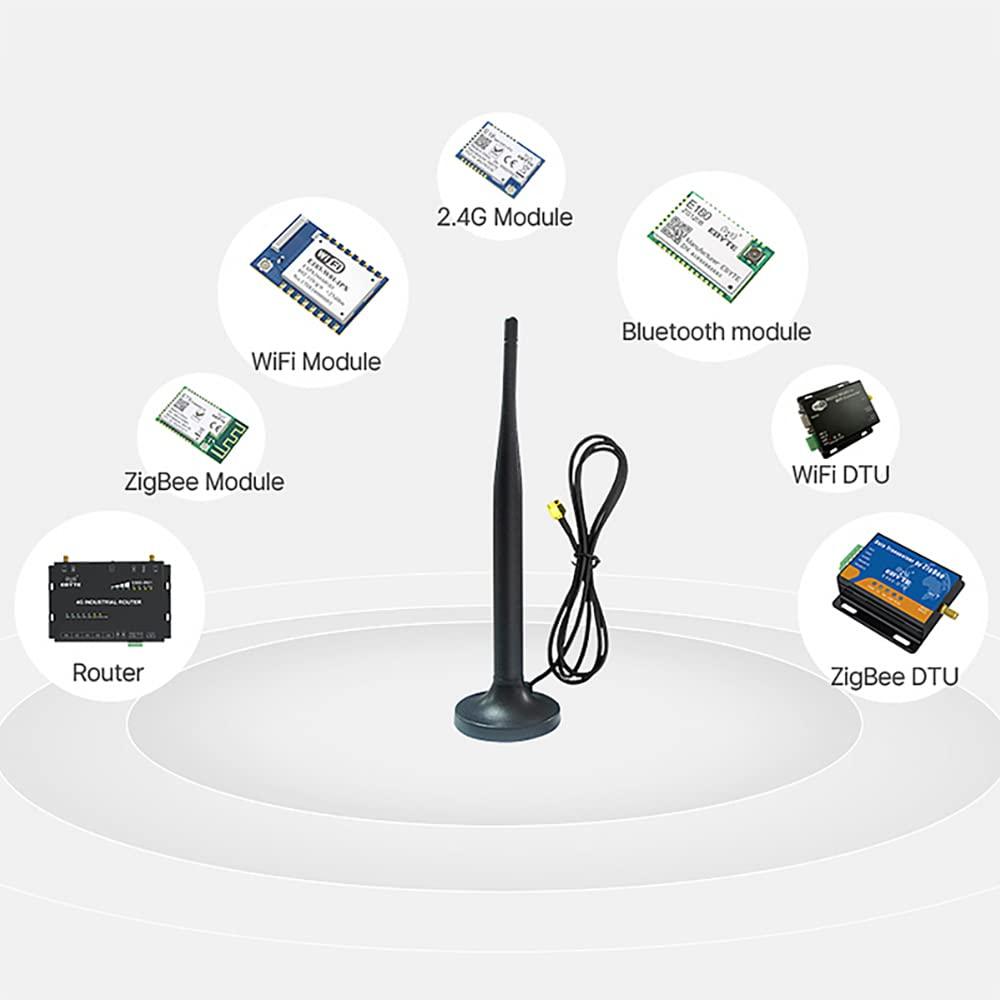

Q: Is it suitable for all 2.4GHz WiFi modules?
A: Yes, it is fully compatible with WiFi, Bluetooth, and ZigBee modules using an SMA Male connector.
Q: Why choose an antenna with a magnetic base?
A: It allows the antenna to be mounted on top of metal cabinets or vehicles, bypassing metal shields that would otherwise block the signal.
