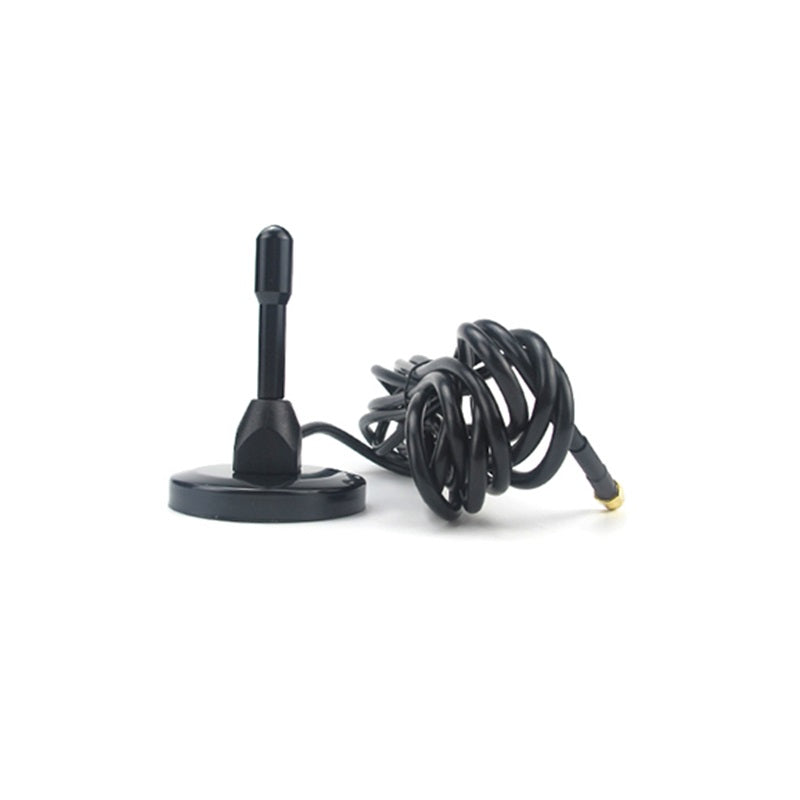

Cdsenet TX2400-TB-300 2.4GHz 6dBi Fiberglass Suction Cup Antenna SMA-J Interface
Cdsenet TX2400-TB-300 2.4GHz 6dBi Fiberglass Suction Cup Antenna SMA-J Interface
100 in stock
Couldn't load pickup availability
SKU:TX2400-TB-300
Product Overview
The TX2400-TB-300 is an industrial-grade 2.4GHz omnidirectional suction cup antenna, featuring a durable fiberglass (FRP) radome for superior weather resistance. With a 6.0 dBi high gain, it is designed to provide stable, long-distance wireless connectivity. Its heavy-duty magnetic base and 3-meter low-loss cable make it the perfect choice for outdoor industrial gateways, smart city infrastructure, and vehicle-mounted communication.

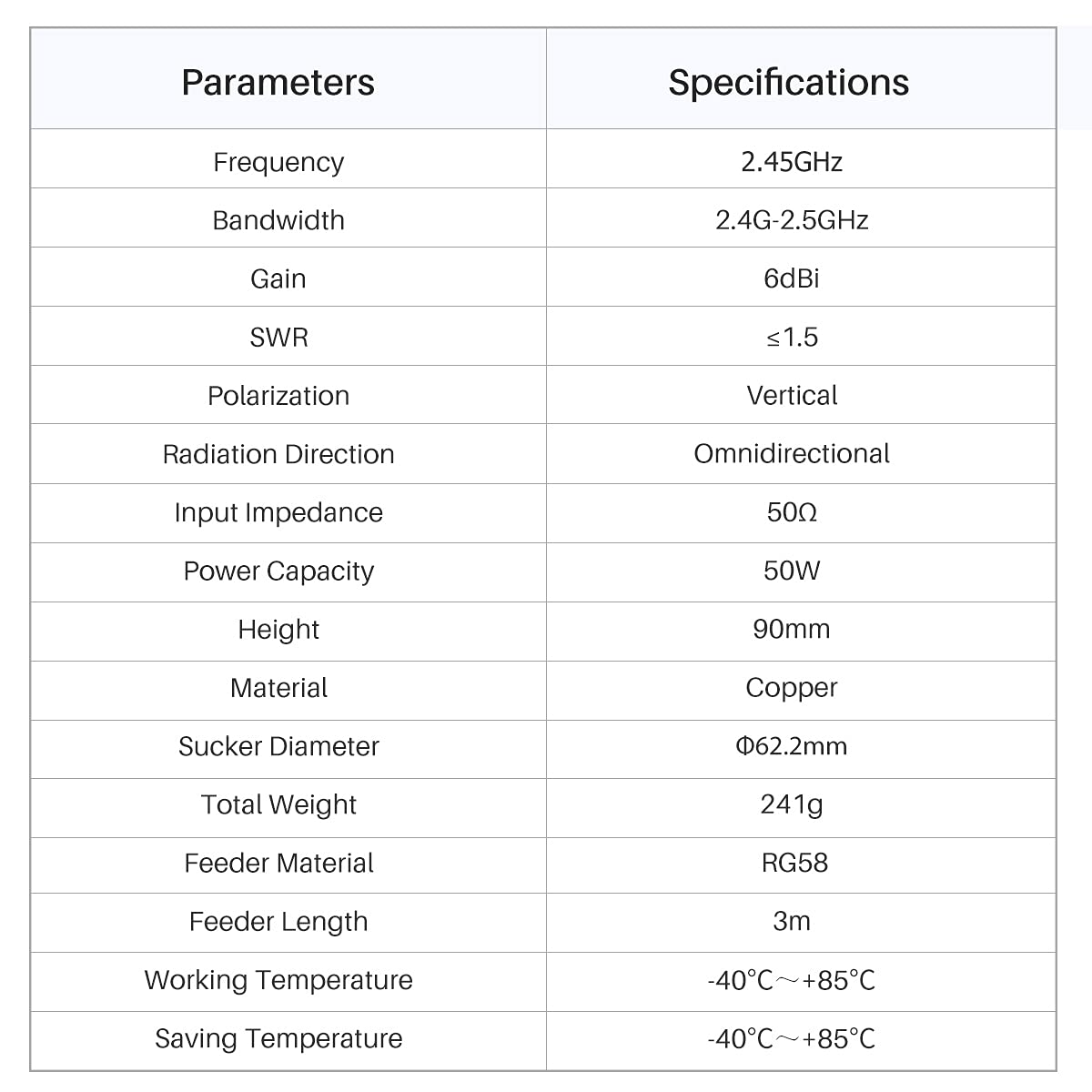

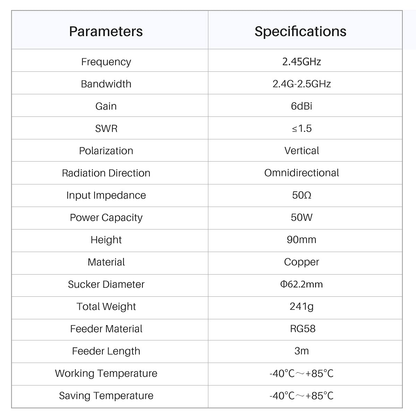

Technical Specifications
| Parameter | Technical Value |
|---|---|
| Frequency Range | 2400 - 2500 MHz (2.4GHz) |
| Peak Gain | 6.0 dBi |
| VSWR | ≤ 1.5 |
| Connector Type | SMA-J (SMA Male) |
| Radome Material | Fiberglass (Anti-UV/Corrosion) |
| Cable Length | 300 cm (3 Meters) RG174 |

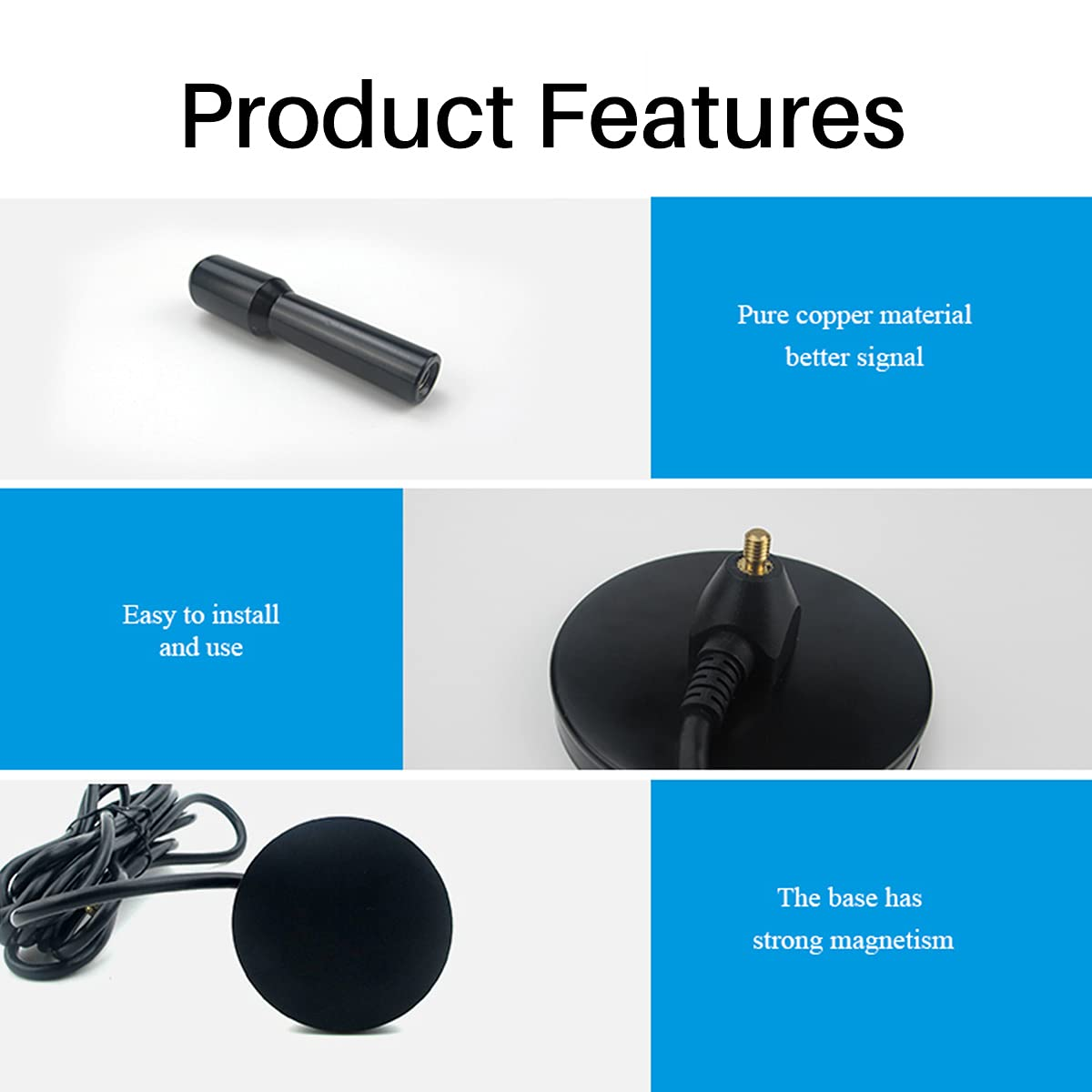

Product Details
All-Weather Fiberglass Radome
Built with high-density fiberglass, this antenna offers excellent resistance to UV radiation, corrosion, and extreme temperatures, ensuring long-term reliability in harsh outdoor environments.
Heavy-Duty Magnetic Base

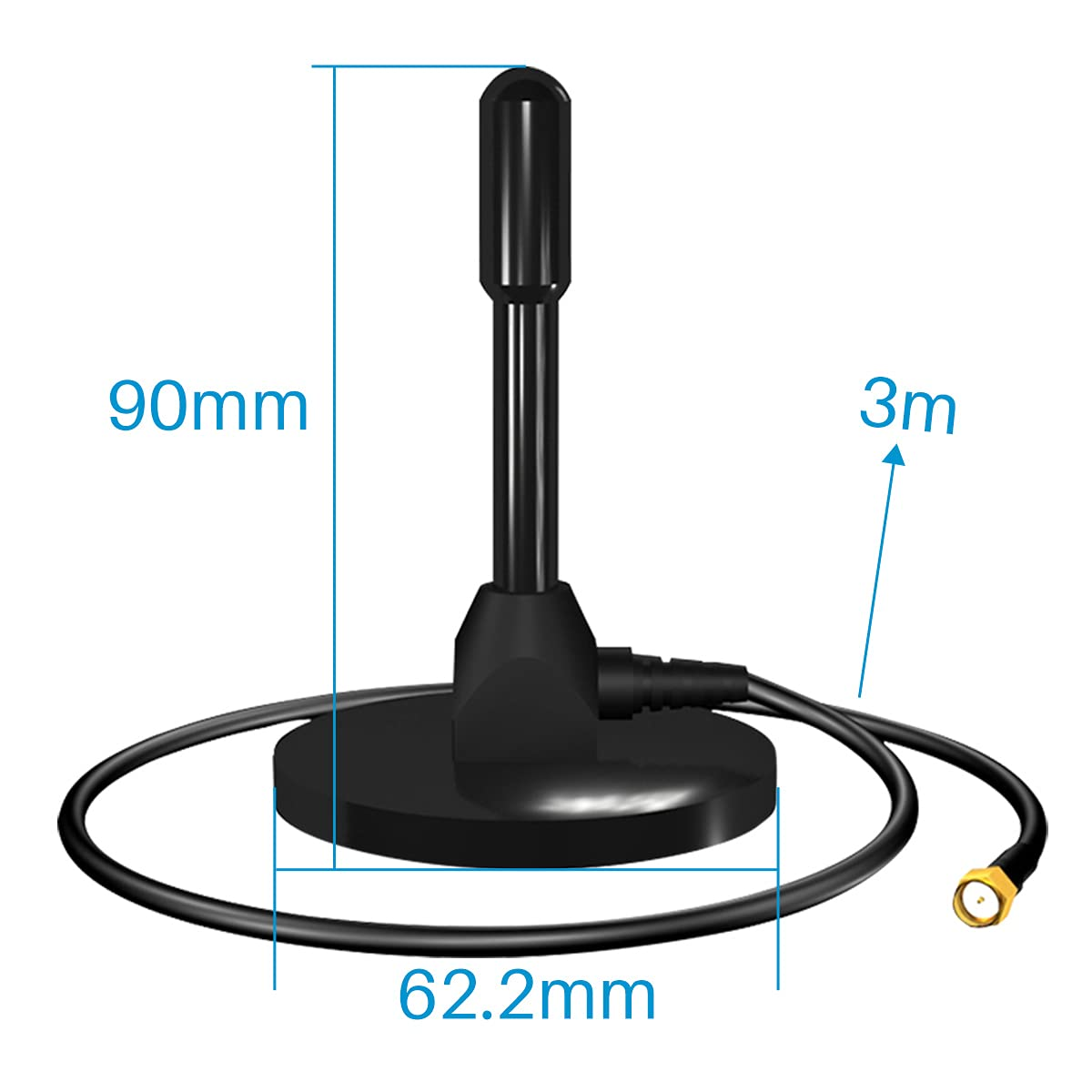

The powerful 90mm magnetic suction base allows for instant and secure mounting on any metal surface, providing a stable vertical orientation for optimized omnidirectional signal spread.
Professional Test Report
Measured with Agilent E5071C: VSWR is optimized at ≤ 1.5 within the 2.4GHz band, ensuring minimal signal reflection.
Ideal Applications
Industrial IoT Gateways
Robust signal reception for outdoor industrial control cabinets and remote telemetry systems.
Smart City & Agriculture
High-gain coverage for environmental monitoring sensors and smart lighting controllers.
Resources
📄 Download Datasheet (PDF)FAQ
Q: Is this antenna waterproof?
A: Yes, the fiberglass material is highly resistant to water and corrosion, making it suitable for long-term outdoor deployment.
Q: Can I use this with any 2.4GHz WiFi device?
A: Yes, it is compatible with all 2.4GHz WiFi, Bluetooth, and ZigBee devices that have an SMA-Female (SMA-K) port.
